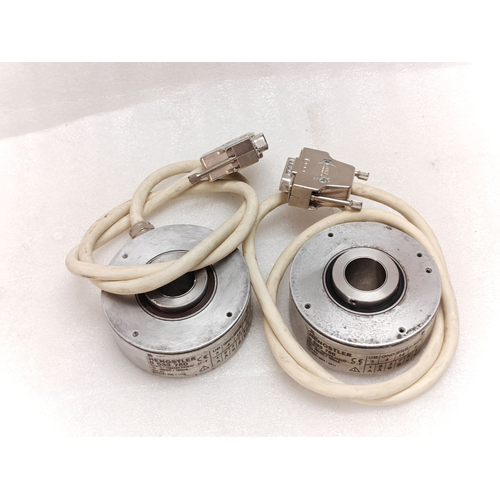

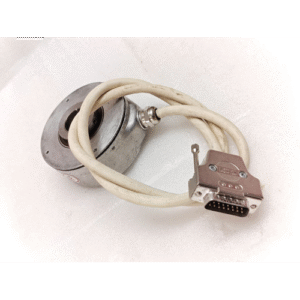

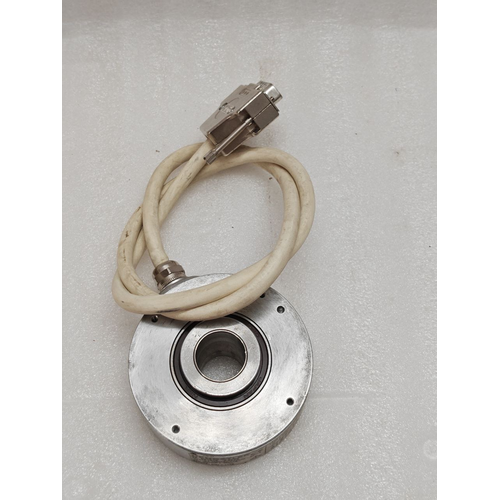

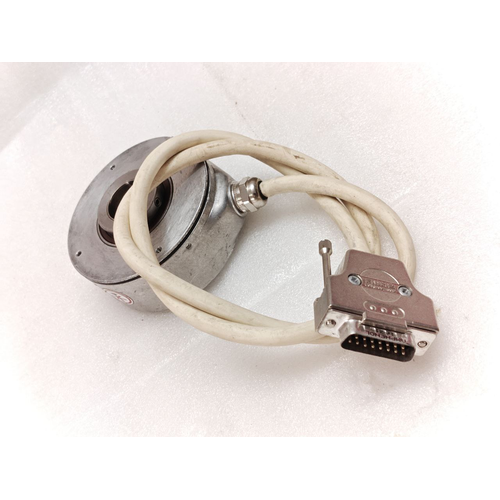

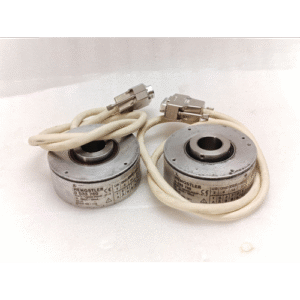

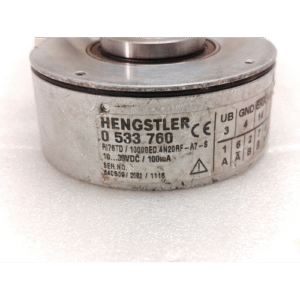

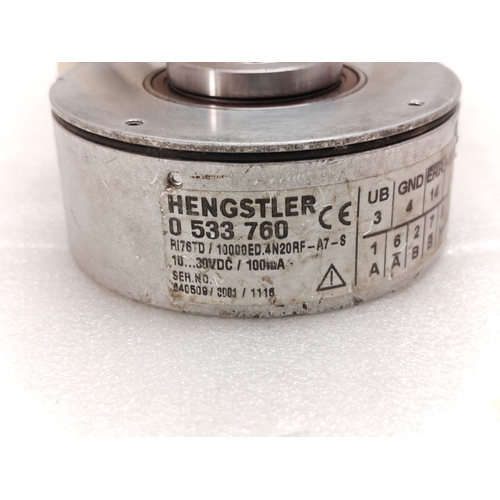

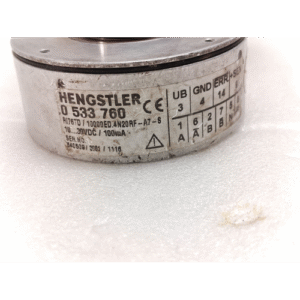

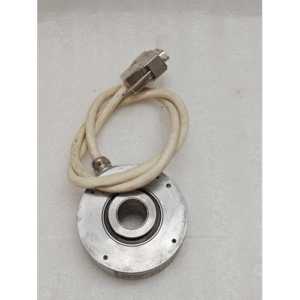

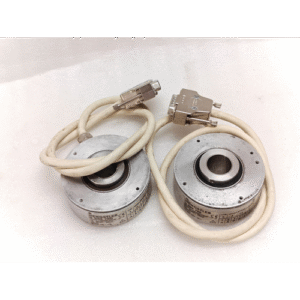

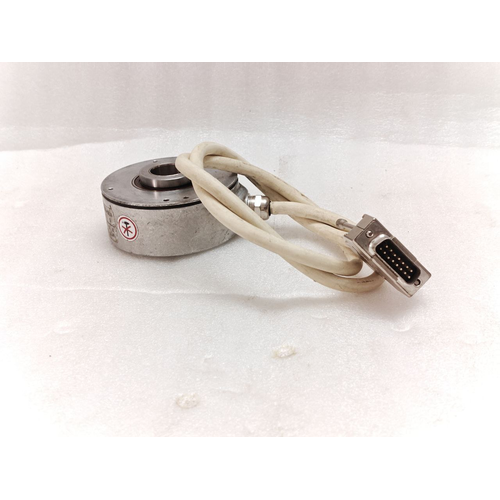

HENGSTLER 0 533 760 RI76TD/10000ED.4N20RF-A7-S, INCREMENTAL ENCODER
- BRAND: HENGSTLER
- MODEL: 0 533 760
- RI76TD/10000ED
- 4N20RF-A7-S
- 10…30 VDC/100WA
- SER NO: 040509/0001/1118
Product Overview:
The HENGSTLER RI76TD10000ED.4N20RF-A7-S is a premium, high-resolution incremental rotary encoder from the renowned RI 76 series. Designed for demanding industrial applications, this encoder provides precise and reliable feedback on position, speed, and direction. Its robust construction, high pulse count, and versatile electrical interface make it an ideal solution for automation, motion control, and CNC machinery.
Key Features & Benefits:
-
High Resolution (10,000 PPR):Â Delivers 10,000 pulses per revolution, providing extremely fine positional data for superior control accuracy and smooth operation in high-precision tasks.
-
Robust Design & Long Service Life:Â Features a ball bearing construction with a high shaft load capacity, ensuring exceptional durability and a long operational life even in harsh environments.
-
Differential Line Driver Output (RS422):Â Provides a symmetrical output signal (A, /A, B, /B, Z, /Z) that is highly resistant to electromagnetic interference (EMI), allowing for reliable signal transmission over longer cable distances.
-
Push-Pull Zero Reference (Z Signal):Â A robust Z channel (index or marker) provides an accurate reference point for homing sequences once per revolution.
-
Wide Operating Voltage Range (10-30V DC):Â Offers flexibility for integration into various industrial control systems.
-
High-Speed Operation:Â Capable of handling speeds up to 12,000 rpm, making it suitable for high-performance and high-speed machinery.
-
IP65 Protection Rating:Â The housing is sealed against dust and low-pressure water jets, ensuring reliable performance in challenging industrial settings.
-
Shaft Sealing:Â Effective shaft sealing protects the internal bearings from contaminants like dust, chips, and moisture.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | RI76TD10000ED.4N20RF-A7-S |
| Type | Incremental Rotary Encoder |
| Pulses Per Revolution (PPR) | 10,000 |
| Output Signal | Differential Line Driver (RS422) |
| Output Channels | A, /A, B, /B, Z, /Z |
| Supply Voltage | 10 – 30 V DC |
| Max. Switching Frequency | 200 kHz |
| Max. Rotational Speed | 12,000 rpm |
| Shaft Type | 6 mm solid shaft, single-flatted |
| Bearing Type | Ball Bearing |
| Connection | Flying lead cable with PUR sheath |
| Protection Rating | IP65 |
| Operating Temperature | -10 °C to +70 °C |
Target Applications:
This encoder is perfectly suited for applications requiring high precision and reliability, including:
-
CNC Machining Centers (Lathes, Mills)
-
Robotics and Automated Arms
-
Precision Positioning Systems
-
Servo Motors and Drives
-
Printing and Packaging Machinery
-
Textile Machinery
-
Factory Automation (FA) Systems
Why Choose This Encoder?
The HENGSTLER RI76TD10000ED.4N20RF-A7-S combines German engineering with rugged industrial design. It offers the high resolution needed for advanced motion control while its robust build and noise-immune differential output guarantee signal integrity and long-term reliability. It is a trusted component for engineers who cannot compromise on performance.
