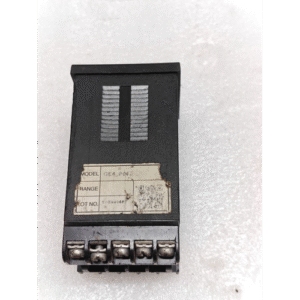

HANYOUNG NUX TEMPERATURE CONTROLLER GE4-P61 METER LCD COUNTER TIMER
- BRAND: HNAYOUNG
- MODEL: GE4-P61
- MADE IN KOREA
- POWER: 24-60VAC, 50-60HZ, 9VA
- MAXIMUM OPERATING TEMPERATURE 55C
The Hanyoung NUX GE4-P61 is a compact and highly versatile digital controller designed to simplify complex automation tasks. By integrating three essential functions—a Temperature Controller, a Timer, and a Counter—into a single, easy-to-use device, it eliminates the need for multiple separate units, saving panel space, reducing wiring complexity, and lowering overall costs.
Its large, clear LCD makes monitoring all parameters at a glance simple, making it an ideal solution for a wide range of industrial and commercial applications.
Key Features
4-Digit Large LCD Display: Easy-to-read display for clear visibility of setpoints, process values, timer, and counter readings.
Multi-Function Capability:
Temperature Control: Features a universal input for various temperature sensors (Thermocouple, RTD) and process signals.
Timer Function: Offers flexible ON-delay, OFF-delay, or signal-type timing operations.
Counter Function: Counts input pulses from sensors, switches, or other devices.
Universal Input: Supports a wide range of sensors including K, J, R, S, T, E, N thermocouples, and Pt100 RTD, as well as voltage (mV, V) and current (mA) signals.
Dual Relay Outputs: Two built-in relay outputs can be independently assigned to control temperature (e.g., heating/cooling), timer operation, or counter operation.
Advanced PID Control: Provides precise and stable temperature control with Auto-Tuning function to automatically calculate the optimal P, I, and D parameters for your system.
Compact DIN Form Factor: Designed to fit a standard 96x96mm (1/4 DIN) cutout, making it easy to install in control panels.
SEO / SEOHYANG Brand: Hanyoung is a reputable Korean manufacturer (often branded as SEO or SEOHYANG in some regions) known for producing reliable and cost-effective automation components.
Technical Specifications
Category Specification
Model GE4-P61 (NUX Series)
Display 4-digit, 0.36″ high, Red LCD
Main Functions Temperature Control, Timer, Counter
Input Types Thermocouples (K, J, R, S, T, E, N), RTD (Pt100), Voltage (0-5V, 1-5V), Current (0-20mA, 4-20mA)
Outputs 2 x Relay Outputs (SPST-NO, 250VAC 5A Resistive)
Power Supply 100-240VAC, 50/60Hz (Standard); 12-24VDC versions are also commonly available.
Mounting 1/4 DIN (96mm x 96mm panel cutout)
Case Material Self-extinguishing ABS Plastic
Key Features PID Control with Auto-Tune, Heater Break Alarm (optional), Communication Options (optional)
Function Details
1. As a Temperature Controller:
Application: Used for heating or cooling control in ovens, plastic machinery, packaging machines, environmental chambers, etc.
Control Action: ON/OFF, Standard PID, or Heating/Cooling PID.
Key Feature: The Auto-Tuning (AT) function learns the system’s thermal characteristics and sets the best PID values for minimal overshoot and fast response.
2. As a Timer:
Application: Used for process sequencing, motor start delays, conveyor operations, or batch processing times.
Modes: ON-Delay, OFF-Delay, or One-Shot.
Setting Range: Typically from 0.1 seconds to 9999 hours/minutes/seconds (depending on unit configuration).
3. As a Counter:
Application: Used for counting products on a production line, monitoring machine cycles, or tracking operational events.
Input: Accepts dry contact signals or pulse signals from photoelectric sensors, proximity switches, etc.
Function: Counts up to a pre-set value and activates an output relay when the target is reached.
Typical Applications
The GE4-P61 is suited for any application that requires a combination of timing, counting, and temperature control, such as:
Plastic Injection Molding Machines: Control barrel temperature and manage cycle timing.
Packaging Machinery: Control heat seal bar temperature and count packages.
Industrial Ovens & Furnaces: Maintain precise temperature with timed processing cycles.
Food Processing Equipment: For cooking, cooling, or drying processes with timed stages.
Automated Assembly Lines: Count parts and control process timing for various stations.
Environmental Test Chambers: Regulate temperature for a pre-set duration.
