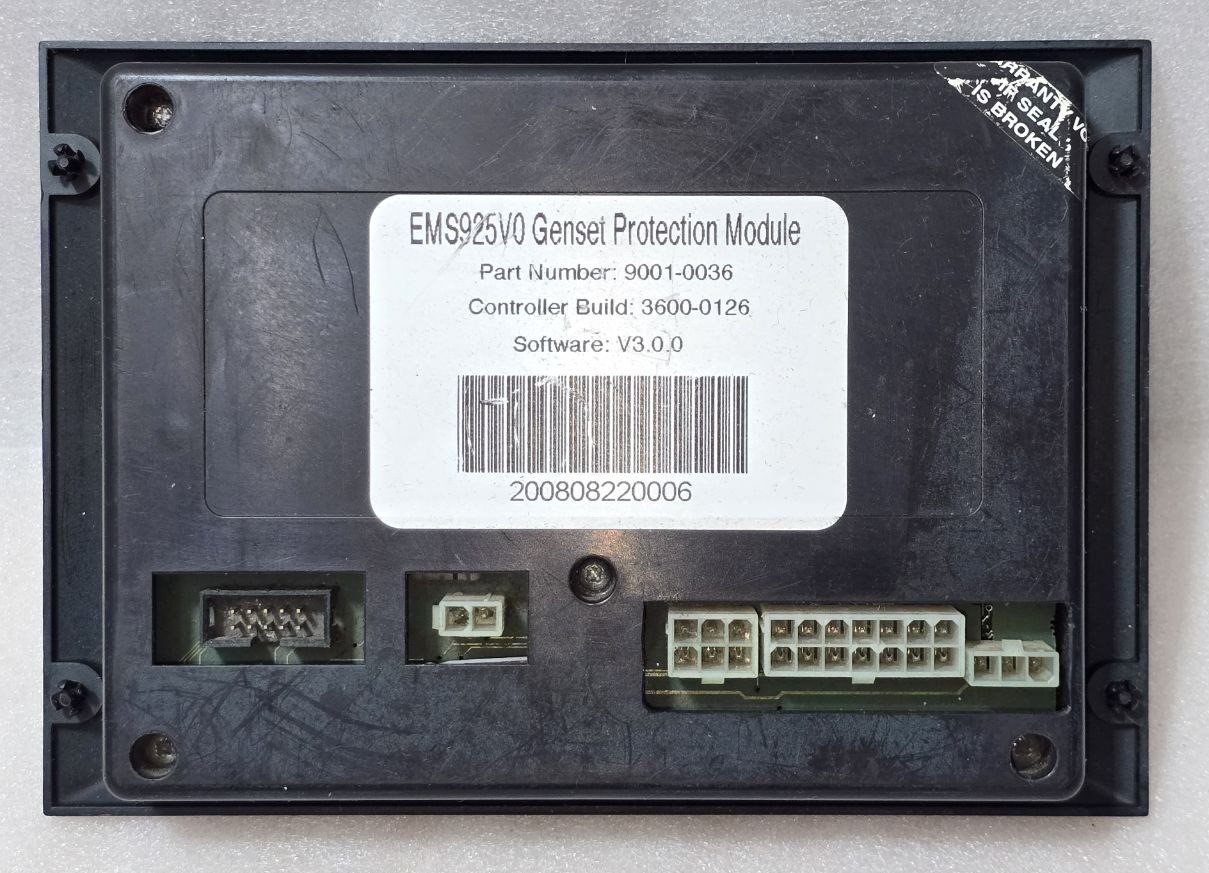

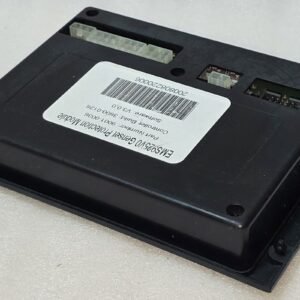

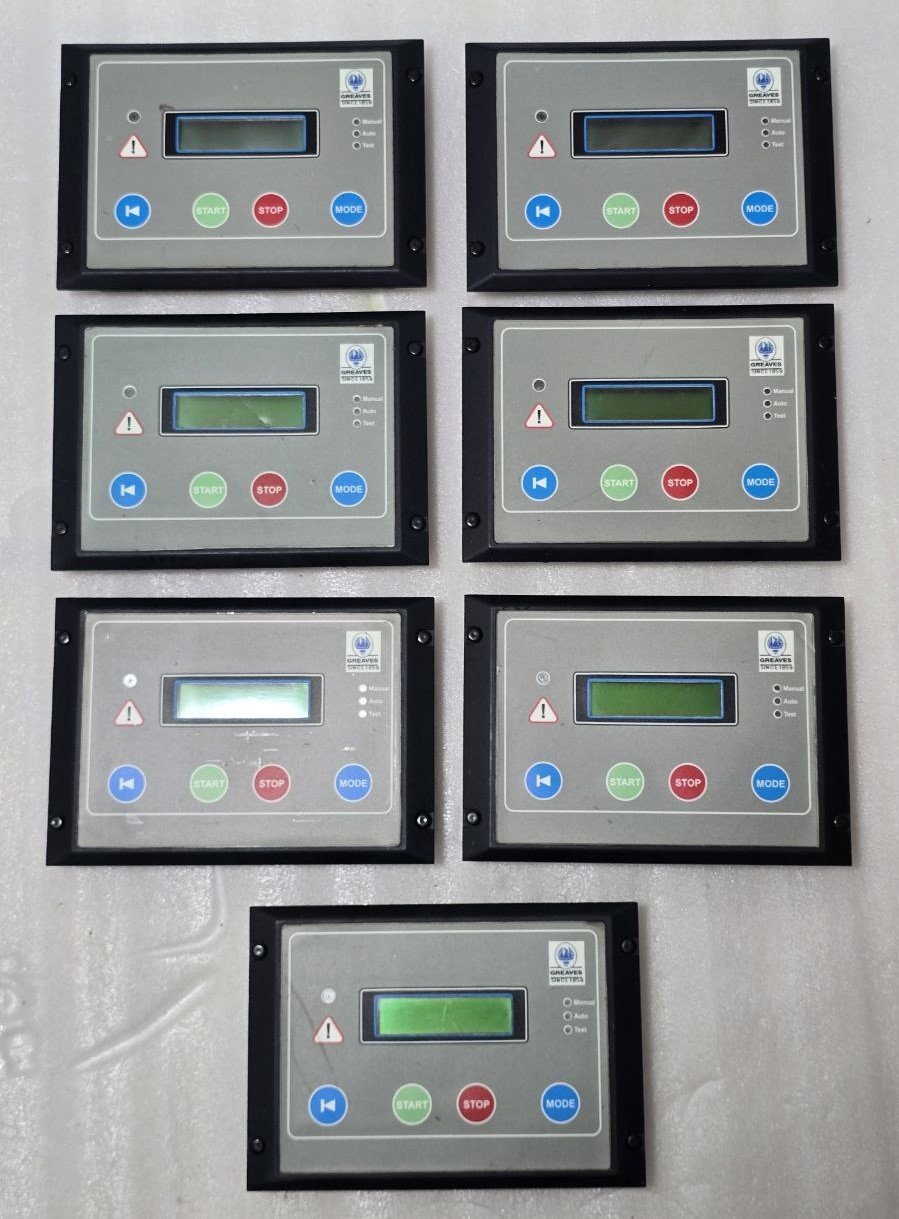

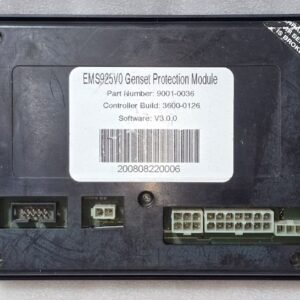

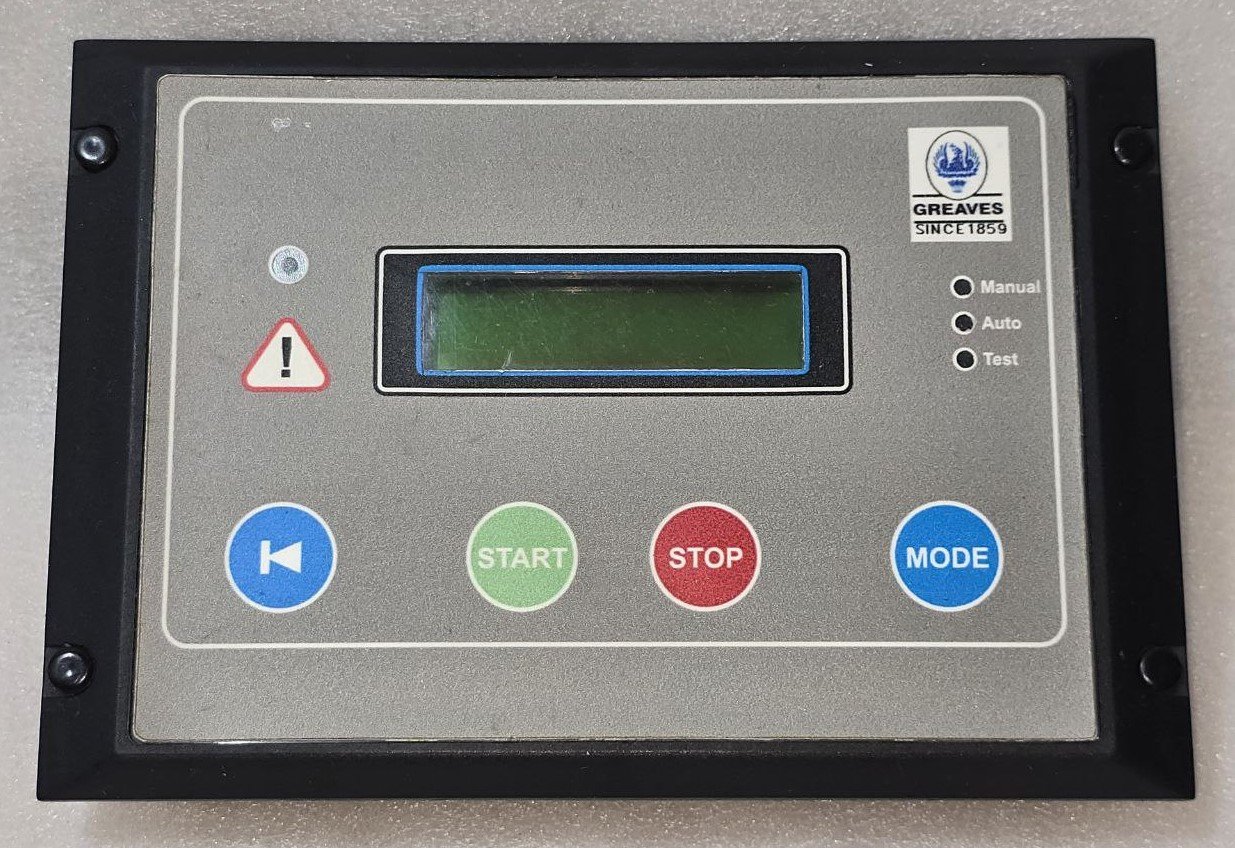

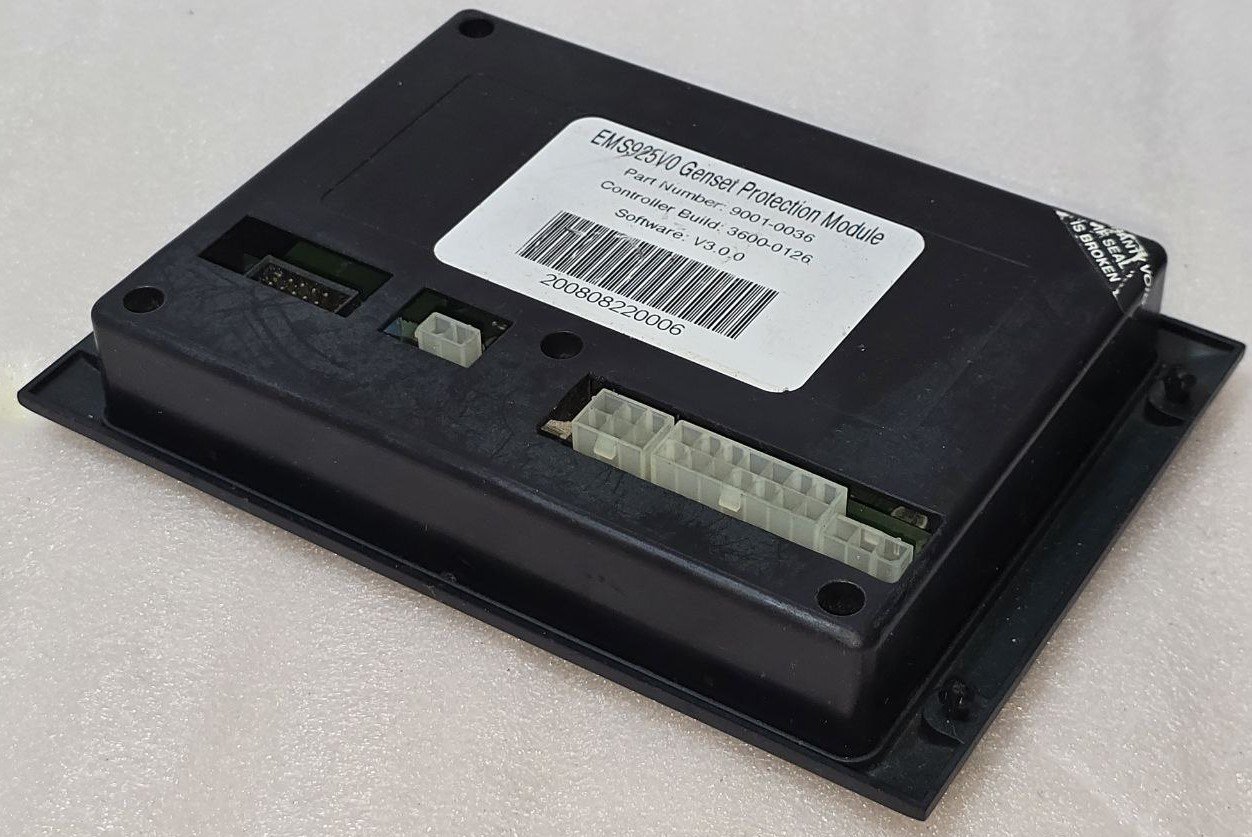

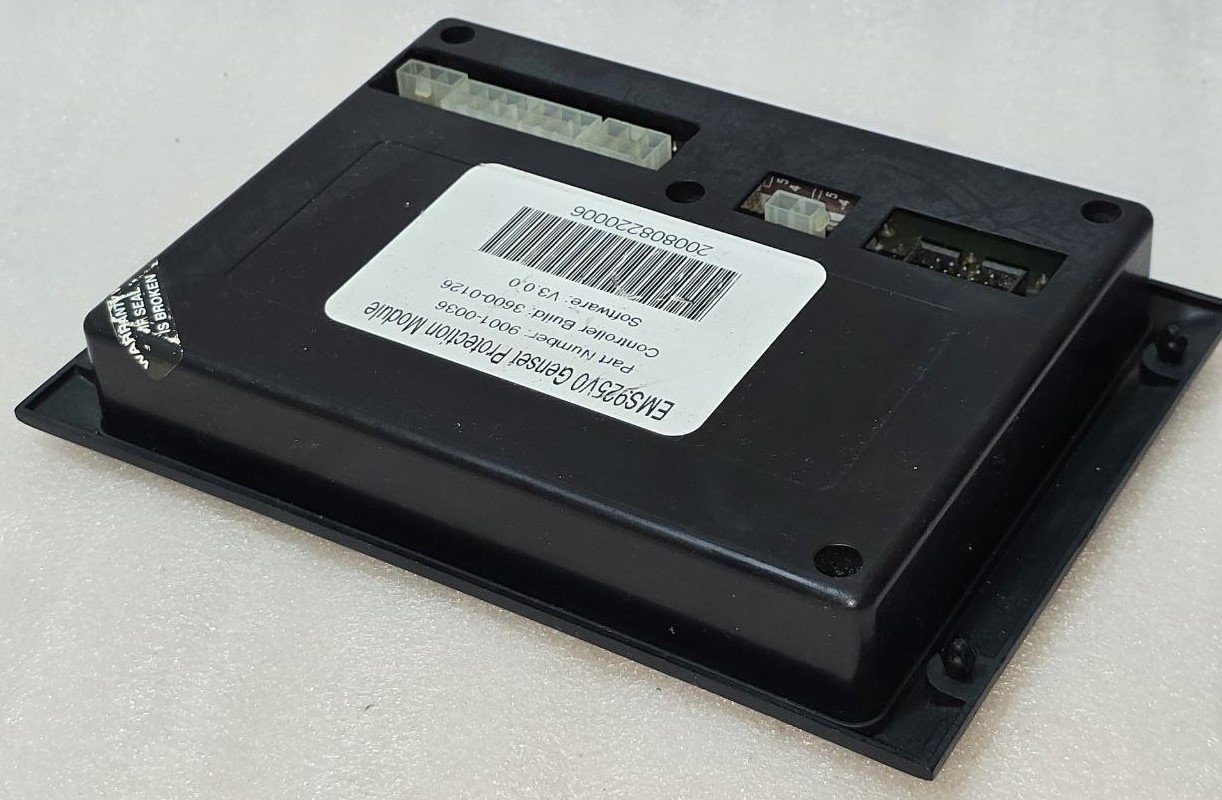

GENSET PROTECTION MODULE EMS925V0 PN 9001 0036 SOFTWARE V3.0.0 17:29

The EMS925V0 is a sophisticated, microprocessor-based generator set (genset) protection and control module designed to monitor, protect, and manage diesel or gas engines and their associated alternators. It is a core component in power generation systems, ensuring operational safety, reliability, and equipment longevity by continuously checking critical parameters and taking immediate action in case of a fault.

This module is part of the EMS (Engine Management System) series, known for its robustness and application in demanding industrial environments.

Key Features and Functionality

1. Comprehensive Engine Protection:
The module monitors the prime mover (engine) to prevent catastrophic damage. Key protection functions include:

• Engine Overspeed: Protects against runaway engine conditions.

• Engine Underspeed: Monitors for failure to reach or maintain correct speed.

• Low Oil Pressure: Critical for preventing engine seizure and wear.

• High Engine Coolant Temperature: Prevents overheating damage.

• Coolant Level Low: Monitors coolant reservoir.

• Emergency Stop: Monitors inputs from emergency stop buttons.

• Fail-to-Start: Detects if the engine fails to start after a programmed number of attempts.

• Crank Disconnect: Automatically disconnects the starter motor once the engine starts.

• Overcrank Protection: Prevents damage from extended cranking.

2. Comprehensive Alternator (Generator) Protection:
It safeguards the electrical generator from harmful conditions:

• Overvoltage & Undervoltage: Protects connected loads and the generator itself.

• Overfrequency & Underfrequency: Ensures power quality and stability.

• Overcurrent / Short Circuit: Protects against excessive electrical load.

• Earth Fault (Ground Fault): Detects insulation failures for system safety.

3. Control and Management Functions:

• Automatic Start/Stop Control: Initiates and shuts down the genset based on external signals (e.g., from a mains failure relay or a building management system).

• Pre-/Post-Glowing Control: Manages glow plugs for diesel engines in cold conditions to ensure reliable starting.

• Engine Run-time Meter: Tracks total operational hours for maintenance scheduling.

• Fuel Solenoid Control: Manages the fuel rack or valve.

• Start Output Control: Operates the starter motor solenoid.

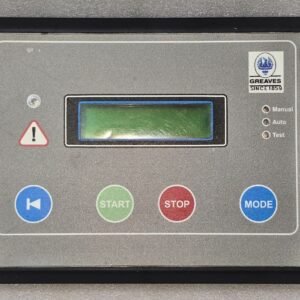

4. User Interface and Communication:

• LED Indicators: Provides clear visual status for Run, Stop, Mains Available, Genset Available, and Alarm conditions.

• Communication Ports: Typically features serial communication (e.g., RS485) using protocols like Modbus RTU. This allows for integration into larger SCADA, BMS (Building Management System), or master control panels for remote monitoring and data logging.

• Software Configurability: The parameters (setpoints, delay times, etc.) are fully configurable using dedicated PC software (e.g., DEIF’s Multi-Link or similar), connected via the module’s communication port.

5. Robust Design:

• Built to withstand the harsh environment of a genset, including resistance to vibration, wide temperature ranges, and electrical noise.

Typical Applications

The EMS925V0 is used in a wide range of standby, prime, and peak-shaving power applications, including:

• Emergency Standby Generators for hospitals, data centers, commercial buildings.

• Prime Power Generators for industrial sites, mining, and construction.

• Marine Auxiliary Generators.

• Telecom Base Stations.
