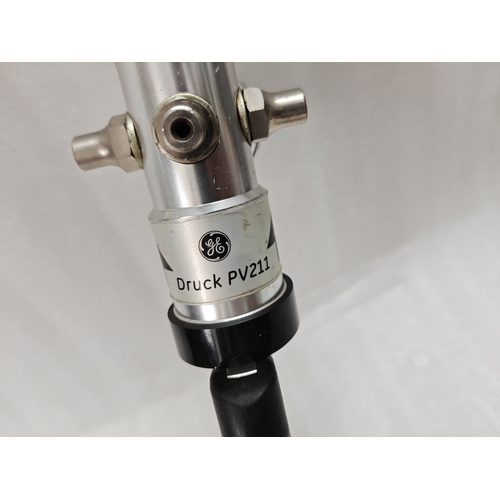

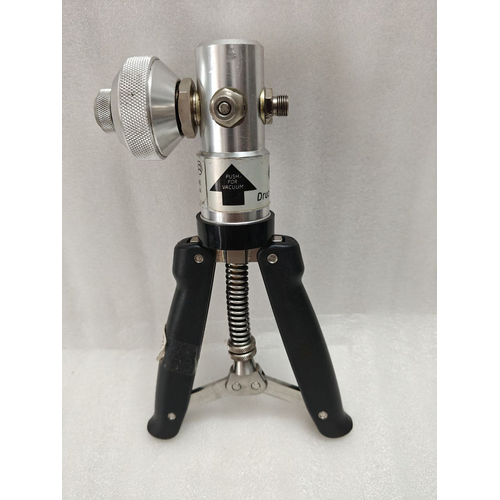

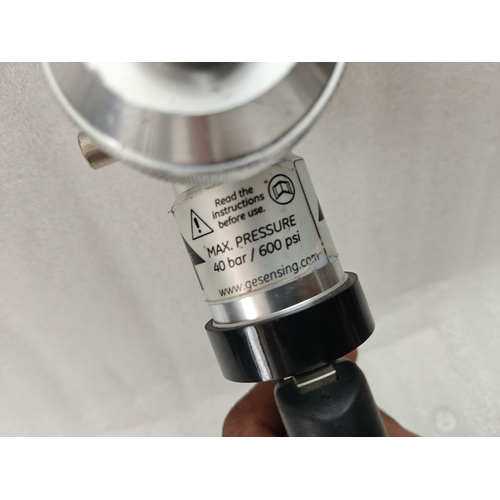

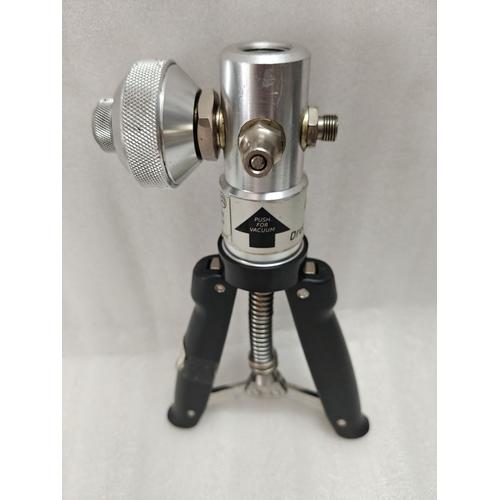

GE DRUCK PV211 40 bar / 600 psi PRESSURE GENERATING HAND PUMP
The GE Druck PV211 is a robust, portable pressure generating hand pump designed for the accurate calibration and testing of pressure instruments. Capable of generating pressures up to 40 bar (600 psi), this self-contained pump eliminates the need for external air or gas supplies, making it an indispensable tool for field service technicians and laboratory engineers.
Engineered for reliability and ease of use, the PV211 provides a smooth, controllable pressure source for calibrating devices like pressure gauges, transmitters, transducers, and switches. It is the trusted, go-to solution for ensuring your pressure instrumentation performs within specified tolerances.
Key Features & Benefits
-
High-Pressure Performance: Generate precise pressures up to 40 bar (600 psi) with a single hand pump, covering a wide range of industrial calibration needs.
-
Exceptional Stability & Control: Fine control valve allows for smooth, incremental pressure adjustments and excellent stability, enabling highly accurate calibration readings and leak tests.
-
All-in-One Portable Kit: The self-contained unit includes an integrated high-quality pressure gauge and a fluid reservoir. Its portable design ensures you have a complete calibration station in one compact, carry-case-friendly unit.
-
Rugged & Reliable Construction: Built with a durable stainless steel piston and fluid path, the PV211 is resistant to corrosion and designed for long-term use in demanding environments, from the workshop to harsh field locations.
-
Safe & Clean Operation: Uses water, oil, or other compatible fluids as the pressure medium, preventing contamination of sensitive instrumentation and ensuring safe operation without the risks associated with high-pressure gas systems.
-
Versatile Connectivity: Features a ¼” BSP (or NPT) test port with a bleed valve, allowing for easy connection to a wide array of devices under test (DUTs).
Technical Specifications
| Feature | Specification |
|---|---|
| Pressure Range | Vacuum to 40 bar (600 psi) |
| Pressure Medium | Compatible with water, oil, or other non-corrosive fluids |
| Accuracy (Integrated Gauge) | Typically ±0.5% of full scale (Specific gauge dependent) |
| Connections | ¼” BSP (or NPT) female test port with bleed valve |
| Fluid Reservoir | Integrated, see-through chamber |
| Materials | Stainless Steel Piston, Brass/Bronze Body |
| Operating Temperature | -10°C to +50°C |
| Applications | Calibration of pressure gauges, transmitters, transducers, switches, and sensors |
