FURUNO SHIP FASCIMILE RECEIVER DFAX FAX-207 TESTED INPUT 12 VDC 2711 1040
DEVICE: WEATHERFAX
BRAND: FURUNO
TYPE: FAX 207 DFAX ( Dual Function Facsmile Receiver / WeatherFax )
The FAX-207 Dual Function Facsimile (DFAX) Receiver provides high resolution charts and satellite images trans-mitted from facsimile stations throughout the world. It can be programmed to receive facsimile broadcasts automat-ically, providing hands-off operation.
The FAX-207 has a wide variety of functions, all con-tained in a rugged plastic case which is small enough to fit on almost any class of vessel. All keys respond immedi-ately to the operator’s command. Each time a keying sequence is correctly executed the unit emits a “beep” to confirm that it has received the operator’s command.
- Noise-free, carbon dust-free thermal printing head.
• High resolution thermal paper provides crisp and clean pictures in four tones. Cloud analysis picture (FM band) presented clearly.
• Programmed with all existing facsimile stations and frequencies. Free memory provides for storage of up to 230 user channels.
• Fully automatic operation by built-in schedule timer. Storage for up to 30 programs provided.
• Fully automatic selection of speed, IOC, phase alignment, and frequency.
• Easy-to-understand menu-driven operation.
• Optional NAV RCV Board provides for reception of NAVTEX messages.
• AM mode available (AM broadcast can be heard.)
• Connectable to personal computer to use FAX-207 as a PC printer. (Optional I/F board required.)

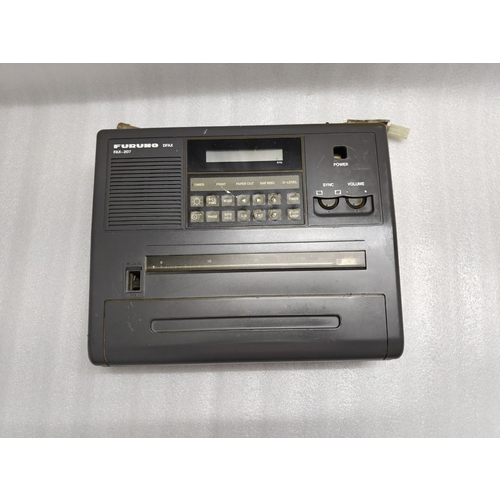

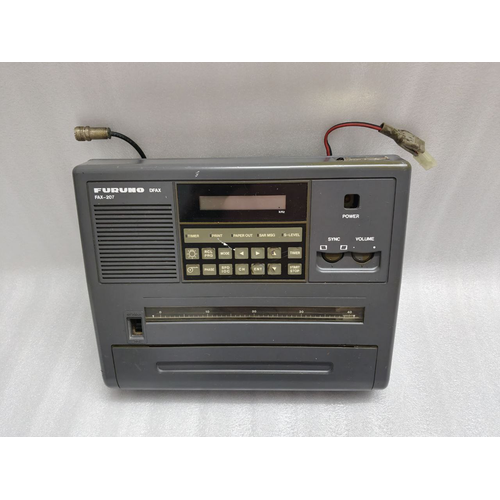

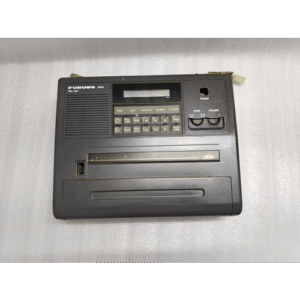

This is a FURUNO DFAX FAX-207, a marine weather chart recorder (facsimile receiver). It has been tested and is functional, requiring a 12 VDC input power source. The unit bears the model-specific identifiers 2714 and 2483. It is being sold as-is, likely for use by enthusiasts, on vintage vessels, or for specific industrial applications.
Detailed Breakdown of the Components
1. Product Identity: FURUNO DFAX FAX-207
-
Manufacturer: FURUNO – A highly respected and world-leading Japanese company specializing in marine electronics (radar, sonar, GPS, fish finders, etc.).
-
Product Type: DFAX or FAX-207 – This is a Weather Facsimile (FAX) Receiver. Its primary function was to automatically receive and print weather charts and maps broadcast from coastal stations and meteorological satellites.
2. Key Feature: TESTED
This is a critical piece of information for a used electronics item. It means the seller has powered the unit on and verified that it is in working condition. It does not necessarily mean every function (like the printer head or radio sensitivity) has been thoroughly tested to new specifications, but it confirms the unit is not dead on arrival.

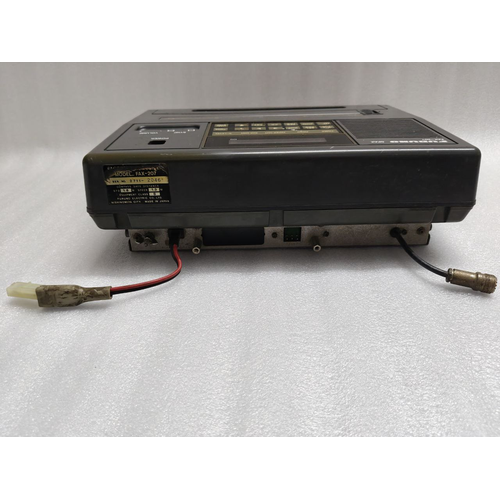

3. Power Requirement: INPUT 12 VDC
-
This unit is designed to run on 12 Volts Direct Current (DC).
-
This is the standard electrical system used on most boats, yachts, and vehicles, allowing for direct connection to the vessel’s battery.
-
It may also be used with a 12V AC/DC power adapter in a fixed location.

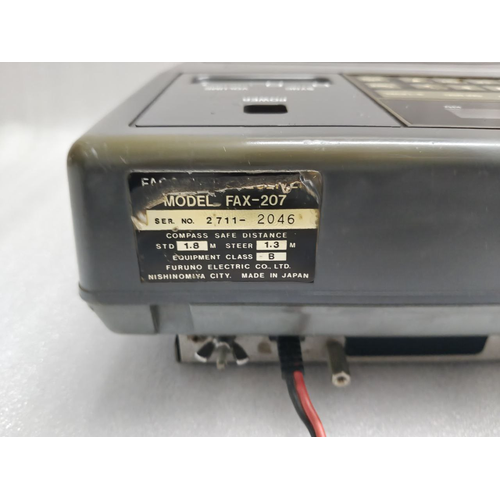

4. Model Codes: 2714 & 2483
These are internal manufacturer codes. They likely refer to:
-
A specific production run or version.
-
A housing or kit number (e.g., 2714 could be the main unit, 2483 could be a mounting bracket or accessory).
-
They are most useful for identifying exact replacement parts or finding specific technical manuals.
