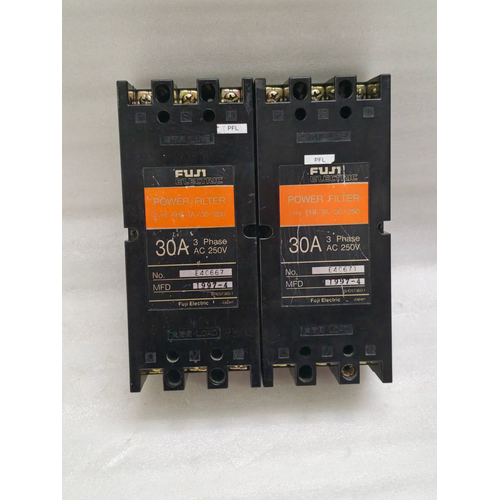

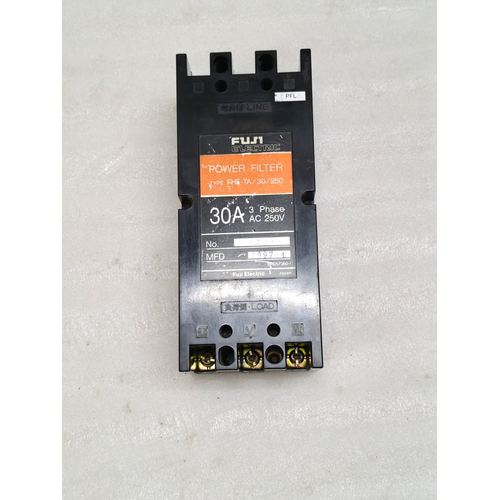

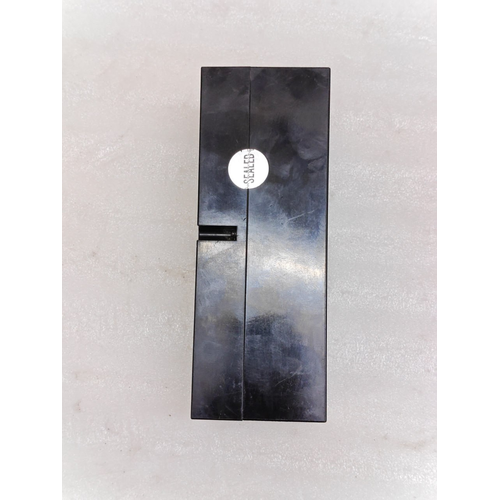

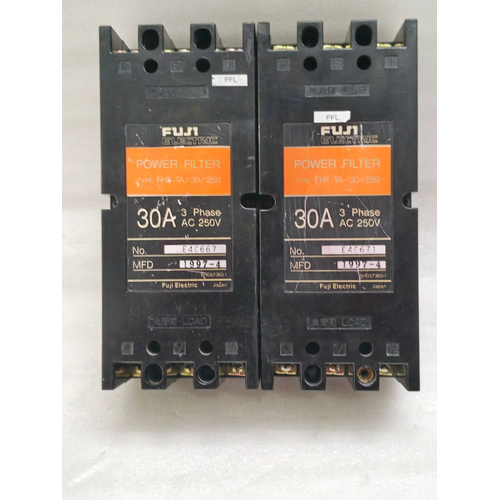

FUJI ELECTRIC FHF-TA 30A AC250V 3-PHASE POWER FILTER
- FUJI ELECTRIC
- POWER FILTER
- TYPE: FHF-TA/30/250
- 30A 3 PHASE AC
- NO: E4C667
- MFD: 1997-4
- JAPAN
The FUJI ELECTRIC FHF-TA 30A AC250V is a robust and reliable 3-phase power line filter designed to suppress electromagnetic interference (EMI) in industrial automation and power conversion systems. This filter ensures the stable operation of sensitive equipment by eliminating high-frequency noise from power lines, thereby complying with international EMC standards.
Ideal for use with:Â Variable Frequency Drives (VFDs), Servo Drives, CNC Machines, Industrial Robots, Uninterruptible Power Supplies (UPS), and other high-power industrial machinery.
Key Features & Benefits
-
Superior Noise Suppression:Â Effectively attenuates both common-mode and differential-mode noise, preventing malfunction of sensitive control circuits and reducing electromagnetic emissions.
-
High Current Rating: Rated for 30 Amps, making it suitable for demanding three-phase industrial applications.
-
Robust Construction:Â Features a metal casing for excellent shielding and durability in harsh industrial environments.
-
Enhanced Safety & Reliability:Â Designed with high-grade materials and components to ensure long-term, fail-safe operation, protecting both machinery and personnel.
-
Easy Installation:Â Compact and lightweight design with standard terminal block connections for straightforward integration into control panels and motor drive systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FHF-TA Series |
| Rated Current | 30 A |
| Rated Voltage | 250 VAC (3-Phase) |
| Withstand Voltage | Line-Line/Line-Ground: 1500 VAC (1 minute) |
| Insulation Resistance | ≥ 100 MΩ (at 500 VDC) |
| Operating Temperature | -25°C to +85°C (with derating above 40°C) |
| Terminal Type | Screw Terminal (M4) |
| Housing Material | Metal (Chassis Ground connection required) |
| Standards Compliance | Conforms to CE, UL, and other international safety and EMC standards. |
Applications
This 3-phase power filter is essential for ensuring electromagnetic compatibility (EMC) in a wide range of industrial settings:
-
Motor Drive Systems:Â Inverter Drives (VFDs), Servo Amplifiers
-
Industrial Automation:Â PLC Control Panels, Robotics, CNC Machining Centers
-
Power Supply Systems:Â UPS, Switching Power Supplies
-
Factory Equipment:Â Welding Machines, Industrial Lasers, Test & Measurement Systems
