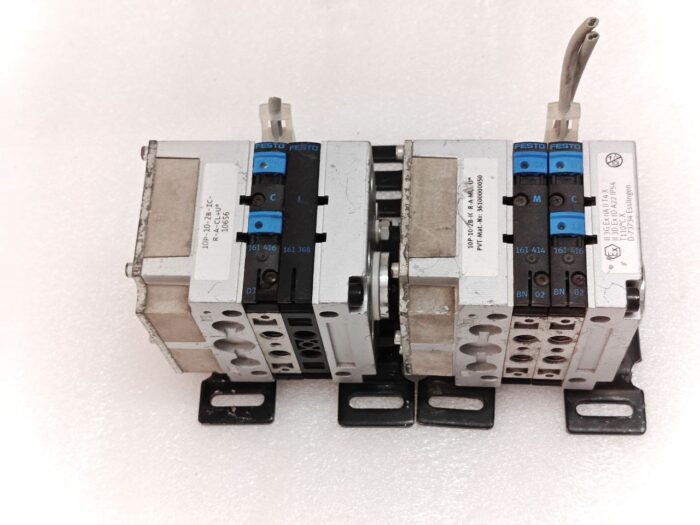

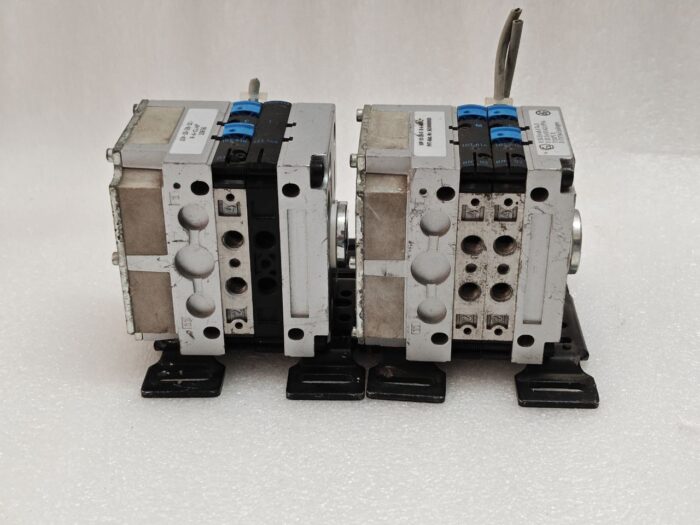

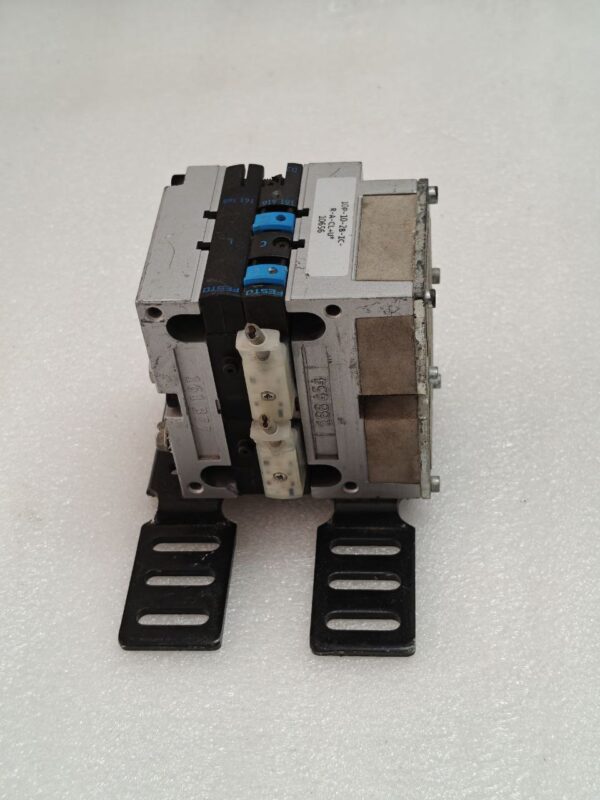

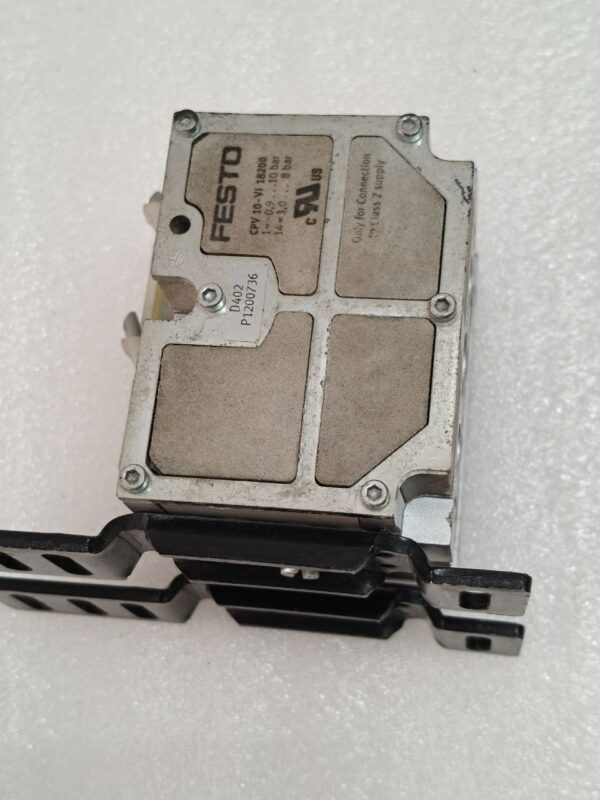

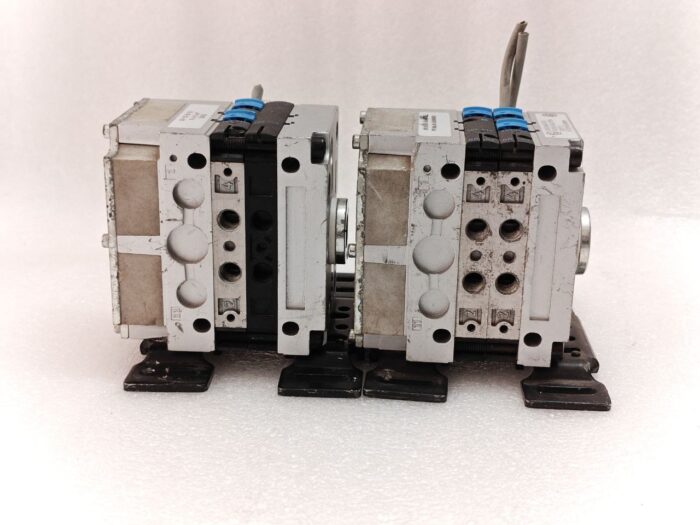

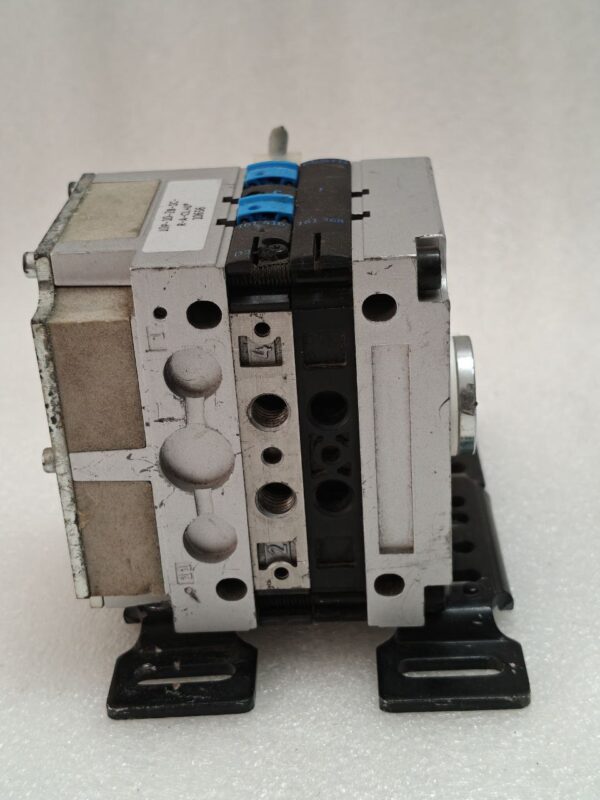

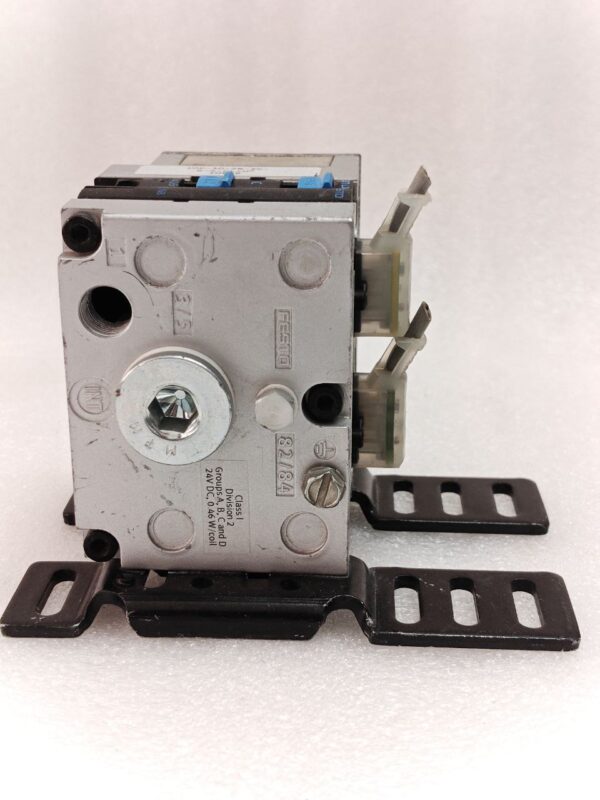

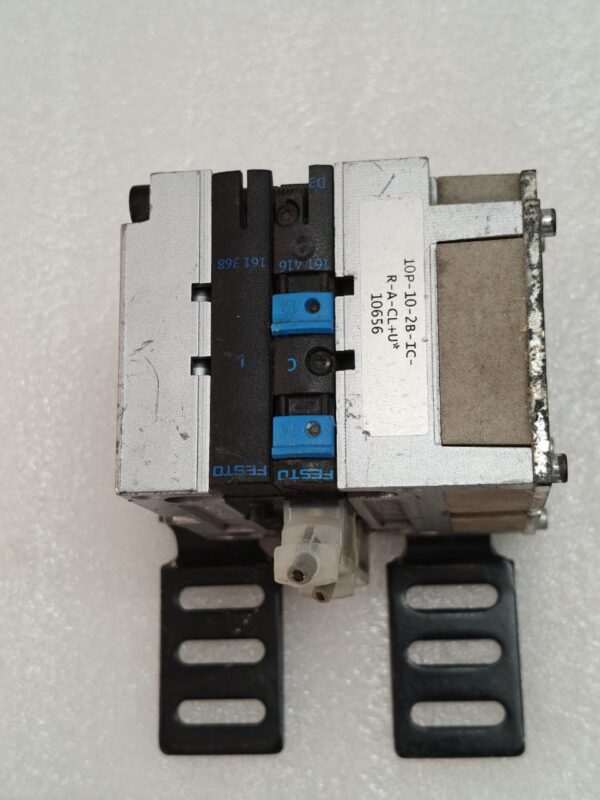

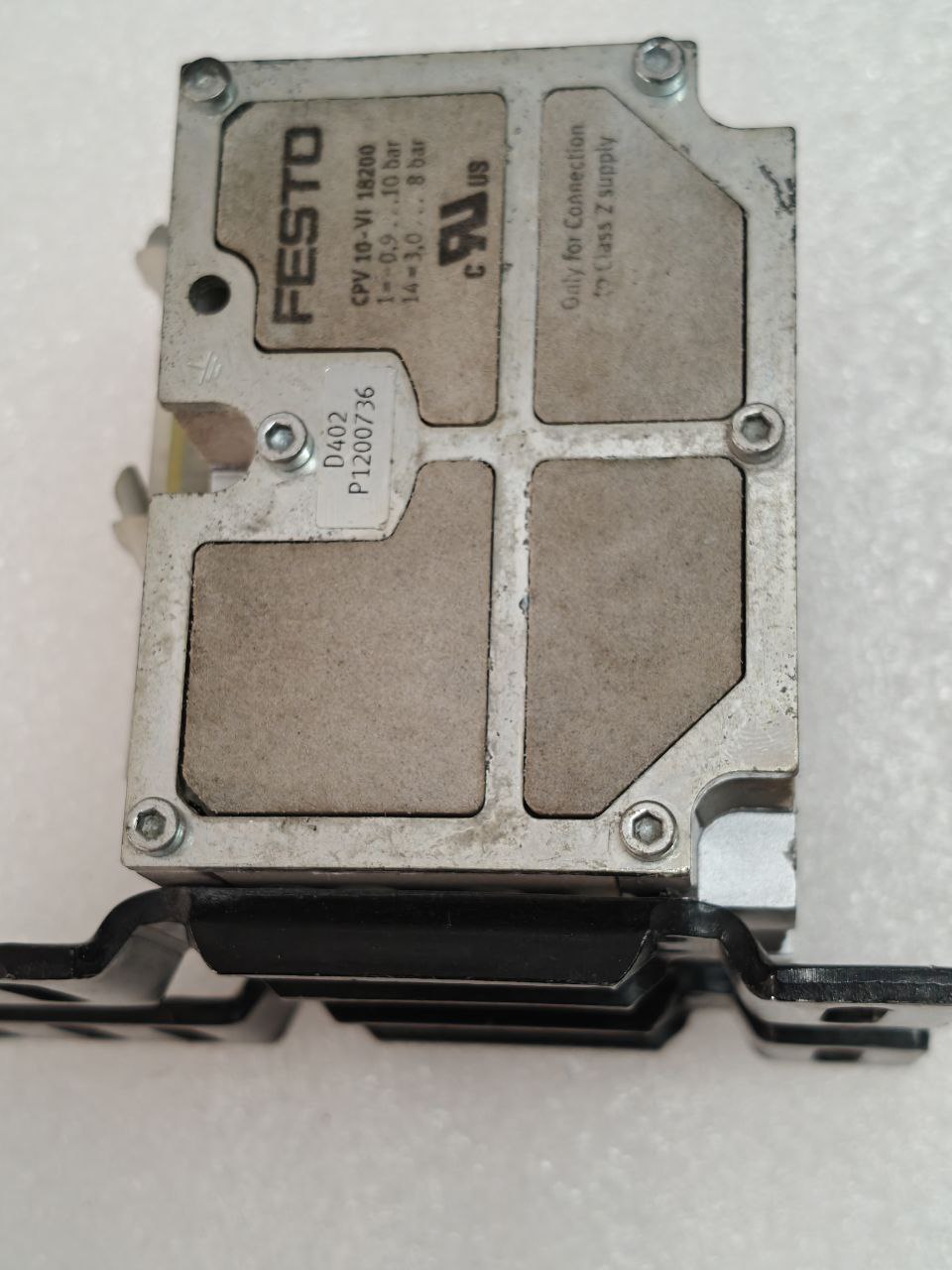

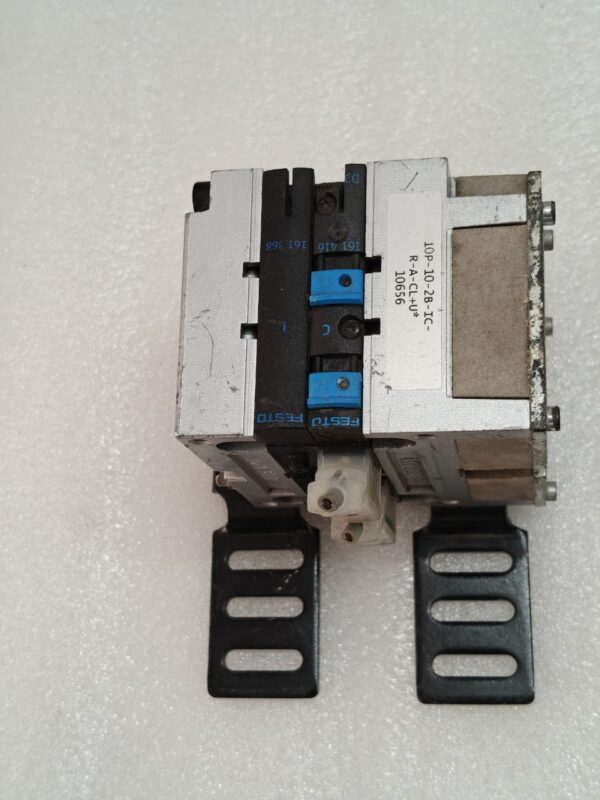

Festo CPV10-VI 18200 Valve Terminal 10p-10-2b-ic-r-a-cl + u 10656 10:45

The Festo CPV10-VI is a compact, modular, and highly versatile valve terminal designed for centralized control of pneumatic systems. The model CPV10-VI 18200 10p-10-2b-ic-r-a-cl represents a specific configuration packed with advanced features for industrial automation.

Product Overview

The CPV10 valve terminal integrates multiple pneumatic valves, electrical connections, and often a fieldbus interface into a single, space-saving unit. It acts as the central “control center” for pneumatic actuators (like cylinders and grippers) in automated machinery, receiving signals from a higher-level controller (e.g., a PLC) and directing air flow to the appropriate actuators.

Detailed Breakdown of the Part Number: CPV10-VI 18200 10p-10-2b-ic-r-a-cl

Each segment of the Festo part number specifies a key feature:

• CPV10: Compact Pneumatic Valve terminal, 10 mm width per valve.

• VI: Version International – A standard, globally compatible version.

• 18200: The specific article number or order code for this configuration.

• 10p: Equipped with 10 individual valve positions (10 valves).

• 10: Each valve has a 10 mm orifice size (G1/4 port), defining its flow capacity.

• 2b: 2-position, bistable valve function. This means the valve has two positions (e.g., extend/retract) and will remain in the last switched position even after the electrical signal is removed, like a latching relay.

• ic: Integrated control electronics. This includes a built-in fieldbus interface and I/O modules for direct connection to sensors.

• r: Equipped with removable electrical connectors (M12 or M8), simplifying wiring and maintenance.

• a: Includes an analog input module, allowing for the control of proportional valves or reading analog sensor signals directly at the terminal.

• cl: Color-coded push-in fittings for the pneumatic tubing, ensuring quick, secure, and error-free assembly.

Key Features & Technical Specifications

Benefits and Advantages

• Space-Saving Design: The 10mm width per valve allows for a very high valve density in a compact footprint, saving crucial panel space.

• Reduced Wiring Effort: The integrated fieldbus system and removable M12 connectors drastically reduce the time and cost associated with wiring compared to individual valves.

• Advanced Diagnostics: Built-in electronics provide detailed diagnostic information (e.g., coil faults, bus communication errors) that can be sent to the PLC for predictive maintenance and faster troubleshooting.

• Flexibility and Modularity: The CPV10 series is highly modular, allowing for customization with different valve functions, I/O modules, and fieldbus protocols to suit any application.

• Bistable Functionality: The 2b valves are energy-efficient as they only consume power when switching. They are also safe for applications where a valve must maintain its position during a power loss.

• Easy Maintenance: The plug-in valves and removable connectors allow for quick replacement without disconnecting all the tubing or wiring, minimizing machine downtime.

Intended Applications

The CPV10-VI valve terminal is ideal for complex automation systems requiring centralized pneumatic control with high-level communication, such as:

• Packaging Machinery

• Automated Assembly Lines

• Robotic End-of-Arm Tooling (EOAT)

• Material Handling Systems

• Automotive Manufacturing Equipment

• Palletizing and Pick-and-Place Units
