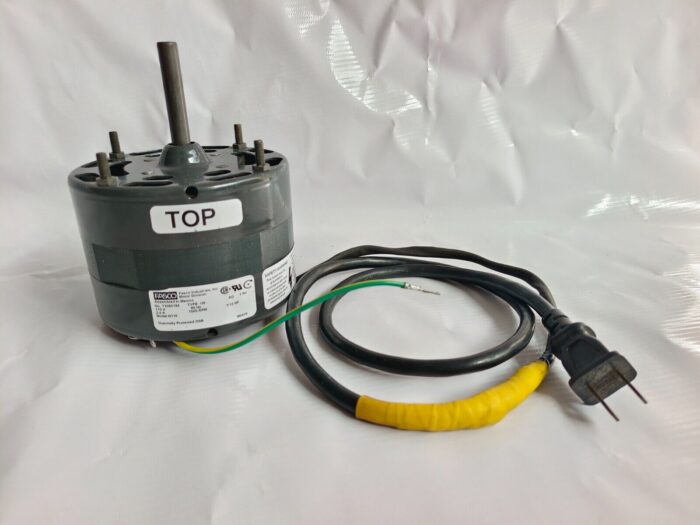

The Fasco D116 is a general purpose motor with a 4.4 inch diameter.  It has a 1/15 horsepower, 1500 RPM, and 115 volts. It has a single phase, 60 Hz, and 2.4 amps. The motor has a CWSE rotation and sleeve bearings. It can be mounted with a belly band or studs.Â
Here are some specifications for the Fasco D116:Â
Shaft: 3/8″ x 2-3/8″
- Bolt circle: 3.89″
- 4 mounting studs: 2.75″ x 2.75″ square
- Motor length less shaft: 3″
- Enclosure type: OAO (Open Air Over)
- Material: Steel
