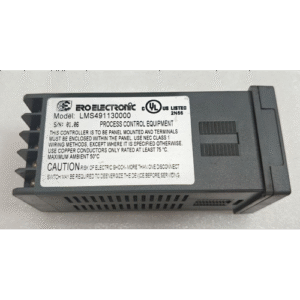

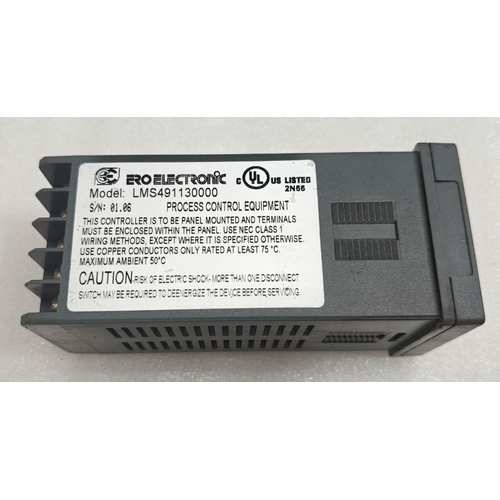

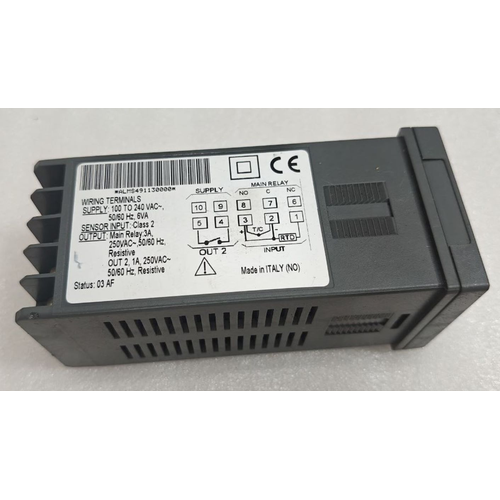

BRAND: ERO ELECTRONIC
MODEL: LMS491130000
S/N: 01.06
PROCESS CONTROL EQUIPMENT

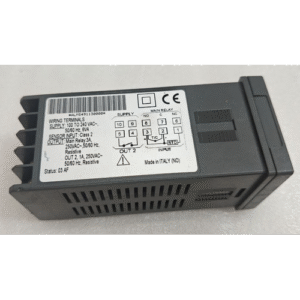

SUPPLY: 100 TO 240 VAC, 50/60HZ, 6VA
SENSOR INPUT: CLASS 2
OUTPUT:MAIN RELAY: 3A, 250VAC, 50/60HZ, RESISTIVE, OUT2, 1A
250VAC, 50/60HZ
STATUS: 03 AF
MADE IN ITALY
The ERO ELECTRONIC LMS491130000 01.06 is a robust and compact DIN rail-mountable temperature controller designed for simple and reliable process control in industrial environments. This single-channel controller is part of ERO’s reliable LMS series, known for its ease of use and precise regulation.
Its primary function is to maintain a set temperature by monitoring a process via a PT100 temperature sensor and switching a connected load (like a heater) using its built-in relay. The “01.06” variant specifies a key configuration: a 6A relay output, making it suitable for controlling loads with moderate power requirements.
Key Features & Benefits
-
Precise PT100 Sensor Input:Â Accurately measures temperature using a industry-standard PT100 (3-wire) platinum resistance thermometer, ideal for a wide range of applications.
-
Compact DIN Rail Design:Â Easily installs on a standard TS35 DIN rail, saving space in control panels and electrical cabinets alongside contactors, circuit breakers, and other automation components.
-

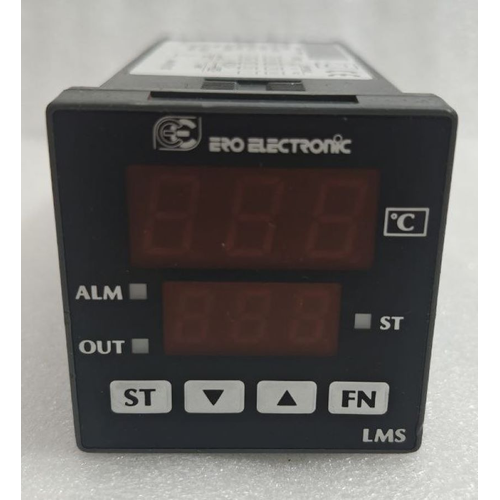

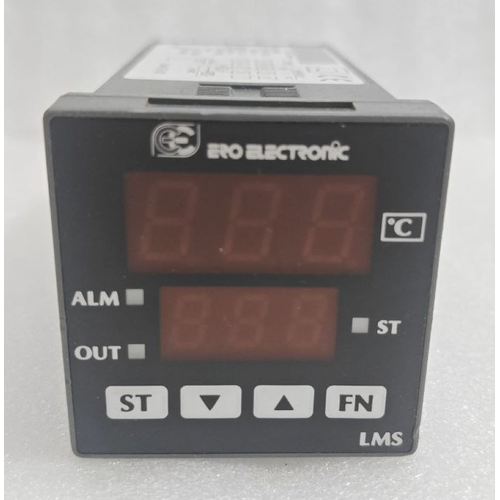

Clear LED Display:Â Features a bright, easy-to-read LED display that simultaneously shows the setpoint (SV) and actual process value (PV).
-
Simple Setpoint Adjustment:Â Intuitive operation with buttons for setting the desired temperature and configuring basic parameters.
-
6A Relay Output (SPDT):Â The built-in 6-ampere single-pole, double-throw (changeover) relay can directly switch heaters, contactors, or small motors. The relay output is indicated by a clear LED.
-
PID Control Algorithm:Â Provides stable and accurate temperature control by minimizing overshoot and offset, ensuring energy efficiency and process consistency.
-
Configurable Alarm Function:Â Includes one programmable alarm output that can be set for various conditions (e.g., high-temperature alarm, deviation alarm), enhancing process safety.
-
IP40 Protection Rating:Â The front panel offers basic protection against accidental contact with live parts, suitable for installation in controlled industrial environments.
Technical Specifications
| Category | Specification |
|---|---|
| Model | ERO ELECTRONIC LMS491130000 01.06 |
| Type | DIN Rail Temperature Controller |
| Input Type | PT100 (3-wire) |
| Number of Channels | 1 |
| Output Type | Relay (SPDT – Changeover) |
| Output Rating | 6A / 250VAC (Resistive Load) |
| Display | Dual LED (PV and SV) |
| Control Algorithm | PID (Proportional, Integral, Derivative) |
| Alarms | 1 Configurable Alarm |
| Mounting | TS35 DIN Rail |
| Front Panel Protection | IP40 |
| Power Supply | Typically 100-240VAC (Verify with datasheet for specific variant) |
Typical Applications
The ERO LMS491130000 is versatile and can be used in various heating control scenarios, including:
-
Industrial Ovens & Furnaces:Â Controlling the temperature of small industrial heating chambers.
-
Plastic Processing Machinery:Â Regulating heater bands on extruders or injection molding machines.
-
Packaging Equipment:Â Maintaining temperature on heat sealing bars.
-
Environmental Chambers:Â Controlling heating elements in test chambers.
-
HVAC Systems:Â Managing auxiliary heating units.
Why Choose the ERO LMS491130000?
This controller offers an excellent balance of essential features, reliability, and value. It is a perfect solution for applications that require straightforward, accurate, and dependable temperature control without the complexity and cost of advanced multi-function controllers. Its DIN rail mounting and standard PT100 input ensure easy integration into existing industrial control systems.
Note:Â Always consult the official ERO ELECTRONIC datasheet for the LMS491130000 series to confirm the exact power supply requirements and detailed wiring diagrams before installation.
