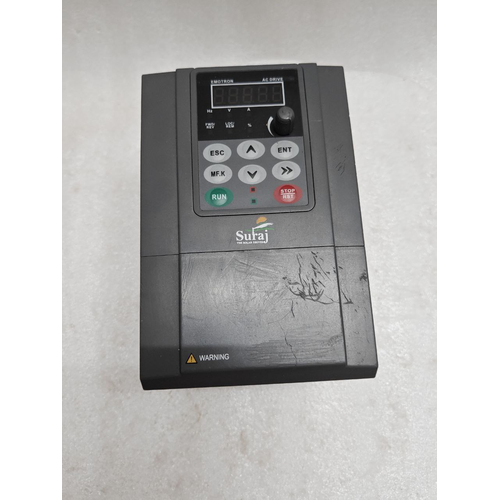

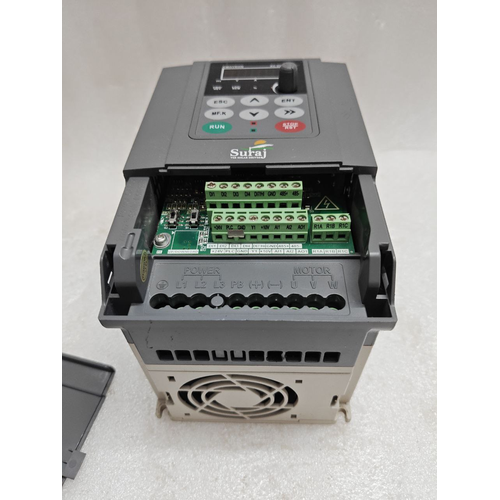

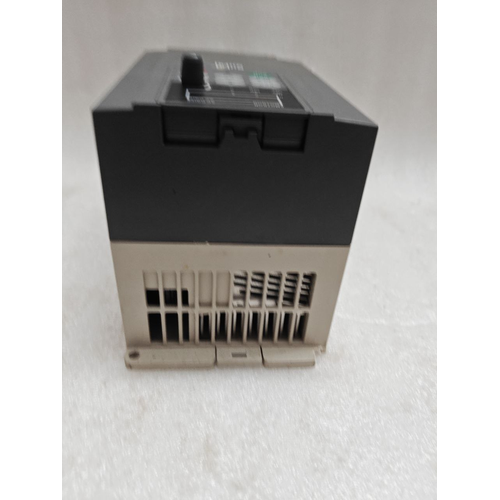

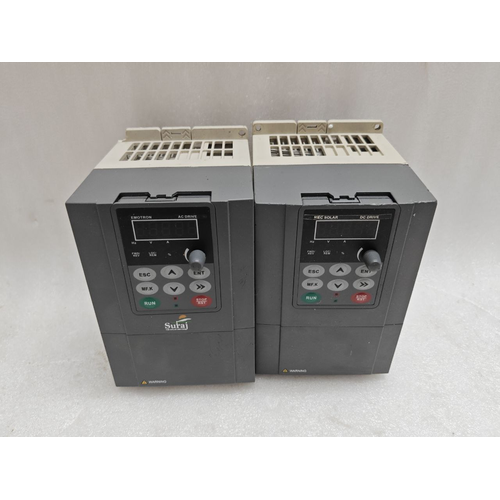

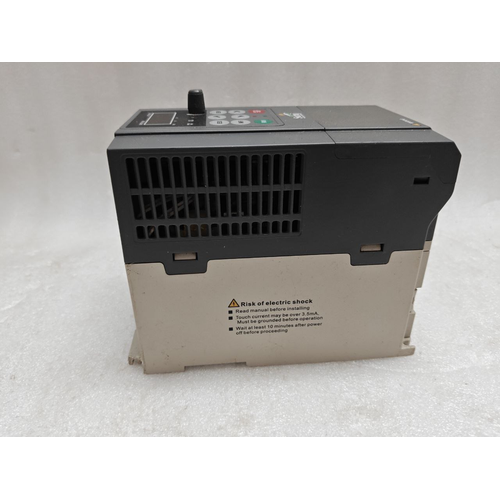

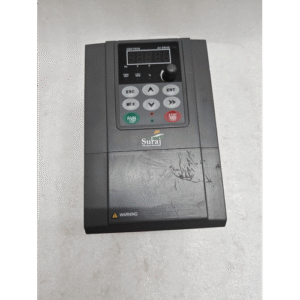

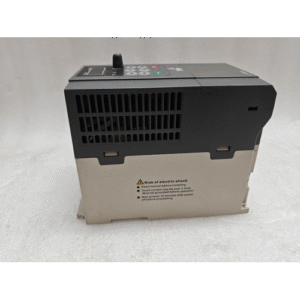

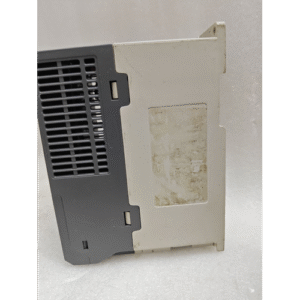

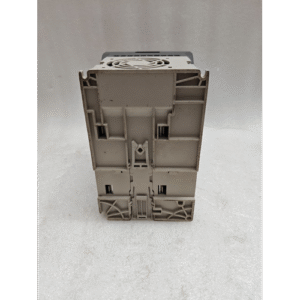

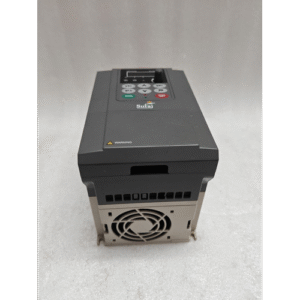

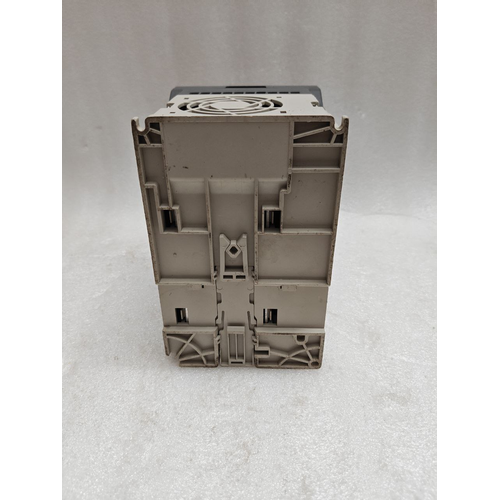

EMOTRON VSR119P5 20 CEB SURAJ AC DRIVE 2.2KW 18A 150-350V 1PH

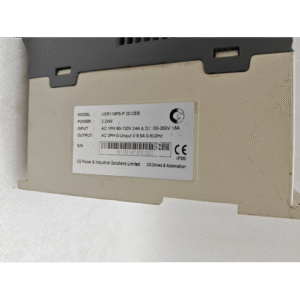

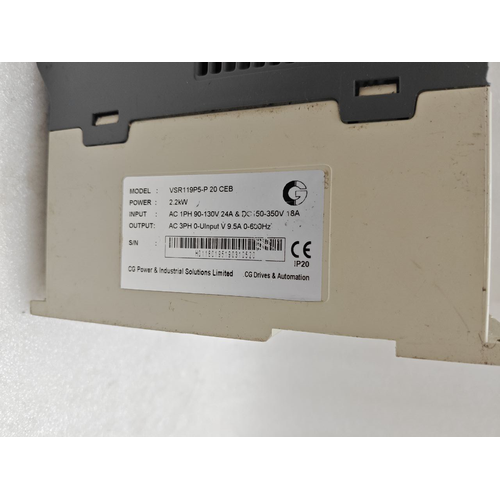

- SURAJ AC DRIVE
- VSR119P5 20 CEB
- POWER: 2.2KW
- INPUT:Â AC 1PH, 90-130V, 24A
- Â Â Â Â Â Â Â DC 150-350V, 18A
- OUTPUT: AC 3PH
- 0-U INPUT V,
- 9.5A, 0-600HZ
- S/N: HO1180195190310520
- IP20
- CG POWER & INDUSTRIAL SOLUTIONS LIMITED
- CG DRIVES & AUTOMATION
The EMOTRON VSR119P5 20 CEB is a compact, versatile, and high-performance Variable Frequency Drive (VFD) designed specifically for controlling the speed of single-phase and three-phase AC motors. The “SURAJ” series is known for its robust build and reliability, making it an ideal solution for a wide range of industrial and commercial applications.
Key Features & Benefits
-
Precise Motor Control:Â Provides smooth and controlled acceleration and deceleration, reducing mechanical stress on motors and machinery, which extends equipment lifespan.
-
Energy Saving:Â Optimizes motor speed to match the actual load requirement, leading to significant energy savings, especially in applications like pumps, fans, and compressors.
-
Robust Protection:Â Built-in protection features safeguard your motor and the drive itself from common electrical faults, including overcurrent, overvoltage, undervoltage, short-circuit, and motor overload.
-

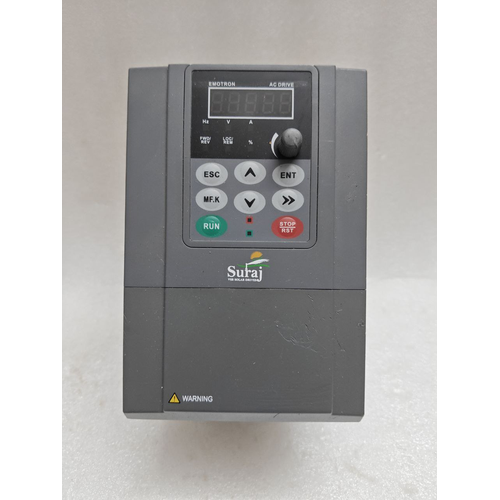

Easy Installation & Operation:Â Features a user-friendly interface with a digital keypad for easy parameter setting and system monitoring. Its compact design allows for space-efficient panel mounting.
-
Wide Operating Voltage Range:Â Capable of operating from a wide 150-350V single-phase input, making it stable and reliable even in areas with fluctuating or poor power supply conditions.
-
SEO Optimized Keywords:Â AC Drive, VFD, Variable Frequency Drive, Single Phase Input, Three Phase Output, Motor Speed Controller, 2.2kW Drive, Energy Saver, Suraj Series.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | EMOTRON VSR119P5 20 CEB (SURAJ Series) |
| Power Rating | 2.2 kWÂ (Approx. 3 HP) |
| Output Current | 18 A |
| Input Supply | 1 Phase, 150 – 350V AC |
| Output to Motor | 3 Phase, 0 – Input Voltage (V/F Control) |
| IP Rating | IP20 (Standard). Protects against contact with live parts but is not dust or water-resistant. Should be installed in a clean, protected electrical panel. |
| Application | Pumps, Fans, Blowers, Conveyors, Compressors, Machine Tools, and other general-purpose machinery. |
Typical Applications
This drive is perfectly suited for applications where speed control leads to process improvement or energy savings:
-
Water & Fluid Handling:Â Centrifugal pumps, booster pumps, water circulation systems.
-
HVAC Systems:Â Exhaust fans, centrifugal fans, cooling tower fans.
-
Material Handling:Â Conveyor belts, packaging machines.
-
General Machinery:Â Lathes, drilling machines, mixers.
