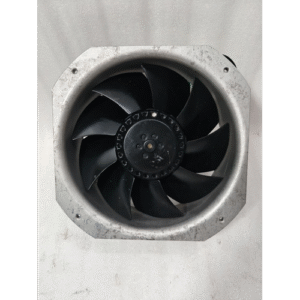

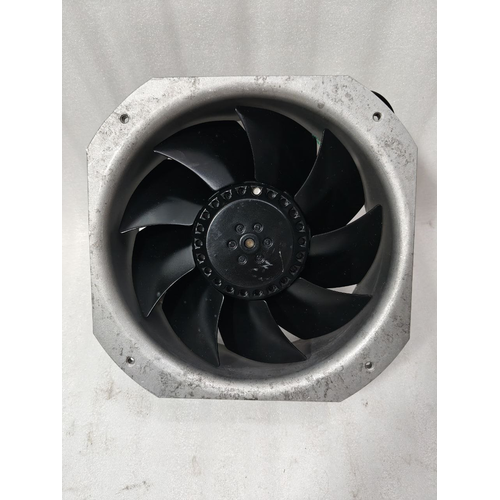

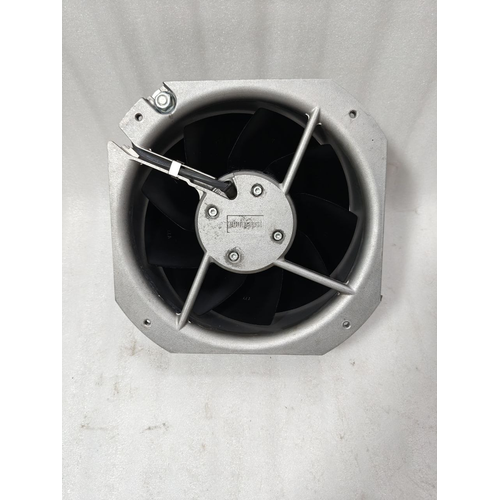

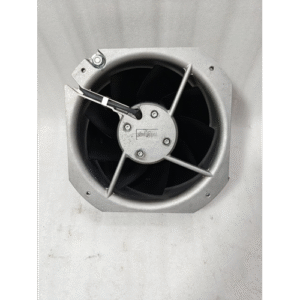

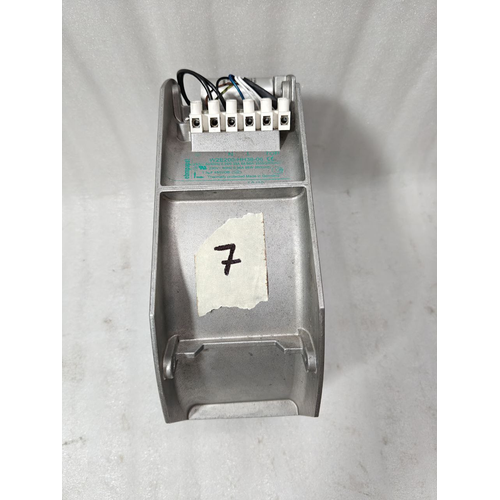

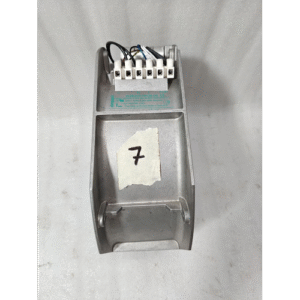

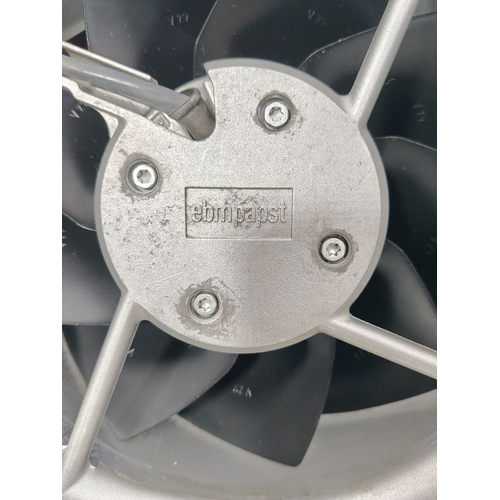

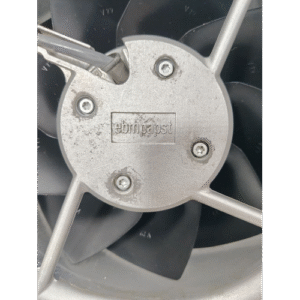

The W2E200-HK38-01 is a 230VAC Axial Fan with a wall ring, ball bearing, terminal power connection and 1-phase 2-pole motor with operating capacitor. Sheet steel, coated in black impeller, Die-cast aluminum wall ring, variable cable exit. Sickle blades, counter-clockwise direction of rotation seen on rotor air exhaust over struts air flow direction with S1 operation mode.

• 2800RPM Speed rating
• 80W Rated power
• 95Pa Maximum back pressure
• -40 to 80°C Maximum permissible ambient motor temperature range
• Thermal overload protector
• Protection class-I
• IP44 Protection rating
