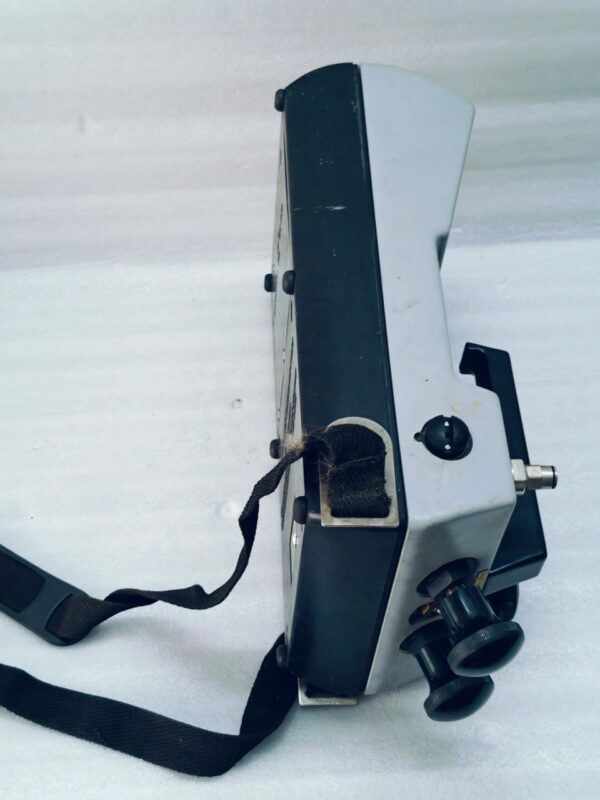

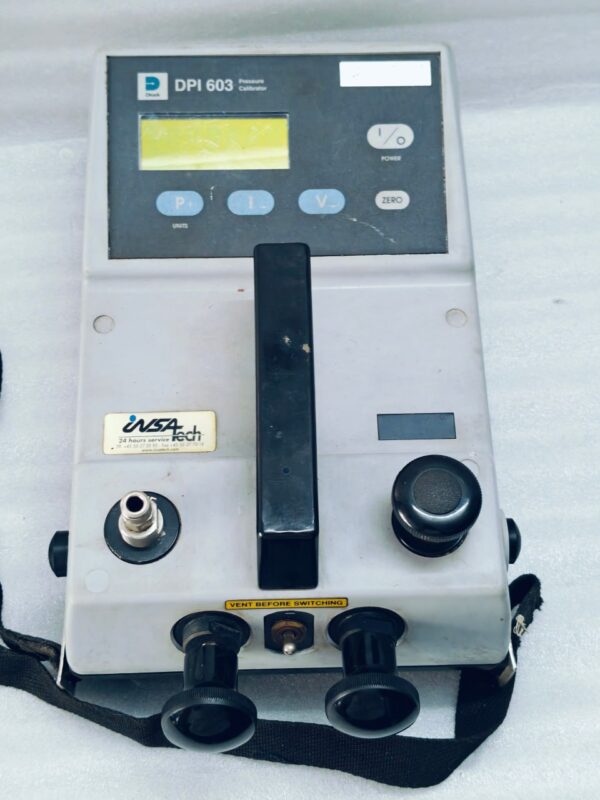

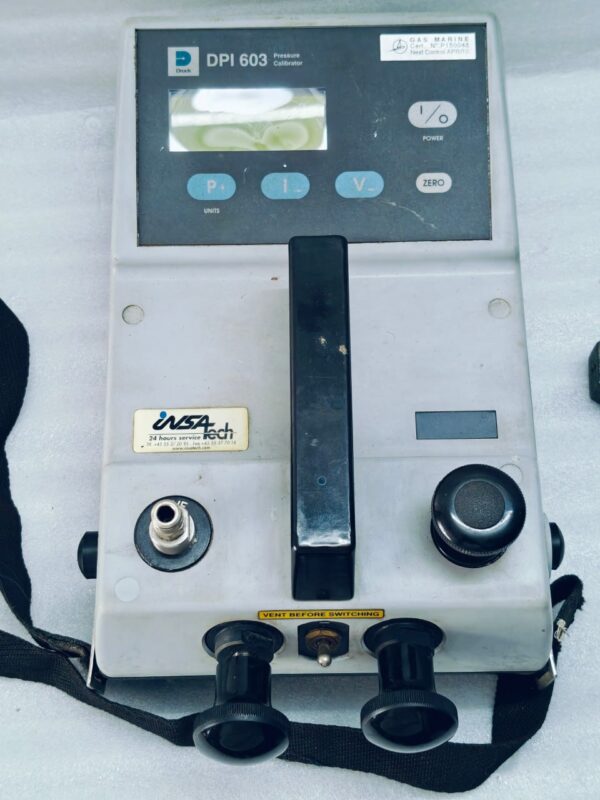

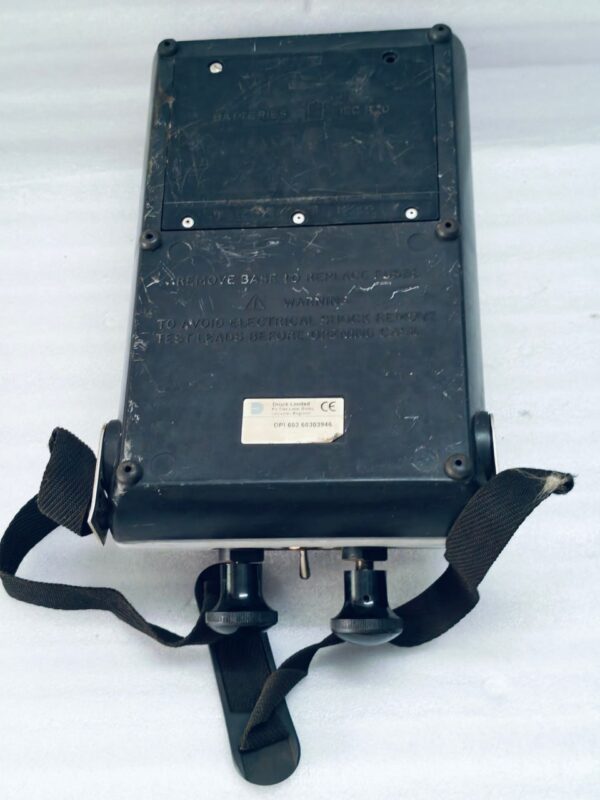

DRUCK DPI 603 PRESSURE CALIBRATOR P150048 16:15

• BRAND: DRUCK
• MODEL: DPI 603
• PRESSURE CALIBRATOR

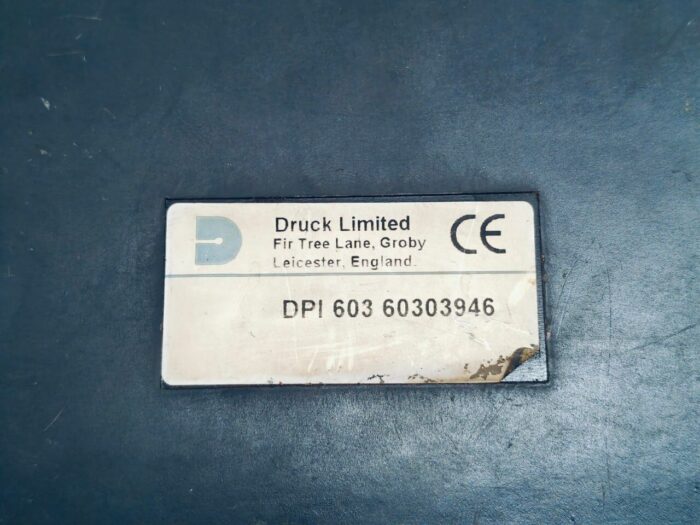

• DPI 603 60303946
• GAS MARINE

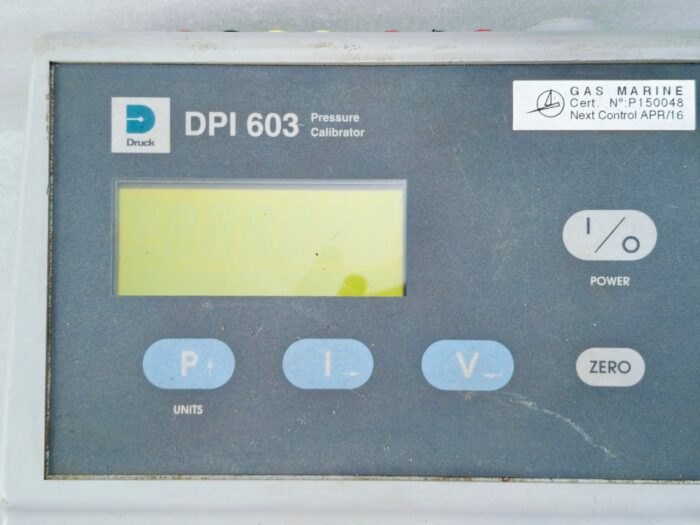

• CERT N: P150048

Product Description: DRUCK DPI 603 Pressure Calibrator (P/N: P150048)

H1: DRUCK DPI 603 Advanced Pressure Calibrator – Precision and Reliability for Critical Applications

The DRUCK DPI 603 (Part Number: P150048) is a high-accuracy, fully portable pressure calibrator and data logger, designed for professionals who demand exceptional performance in the field and workshop. Renowned for its rugged reliability and intuitive operation, the DPI 603 serves as a complete calibration workstation, capable of measuring, sourcing, and logging pressure and electrical signals with unmatched precision.

This versatile instrument is the ideal solution for calibrating pressure transmitters, switches, gauges, and other process instrumentation across a wide range of industries, including oil & gas, pharmaceutical, chemical, and power generation.

Key Features & Benefits:

• All-in-One Functionality: Combines a high-accuracy pressure measurement gauge, a pressure source (pump), and a multi-function electrical calibrator in a single, robust unit. This eliminates the need for multiple devices, streamlining your calibration process.

• Exceptional Accuracy: Achieves measurement accuracy as high as 0.025% of reading, ensuring your calibrations and measurements are reliable and traceable to national standards.

• Intuitive Touchscreen Display: A large, backlit graphic display with touchscreen controls provides clear readouts of pressure, electrical values, and percent error, making complex calibration tasks simple and error-free.

• Dual Pressure & Electrical Measurement: Simultaneously read pressure and measure/source mA, V, mV, and thermocouple (T/C) signals. This is essential for loop calibration and troubleshooting.

• On-Board Data Logging: Record and store thousands of calibration results and test data points directly on the device. Simplify documentation and reporting for compliance and quality assurance.

• Rugged and Portable Design: Built to withstand harsh industrial environments with an IP54 rating for dust and water resistance. Its compact, portable design includes a protective boot for maximum durability on the go.

• Documentation and HART® Communication: Optional HART communication capability allows for configuration and calibration of HART-enabled smart pressure transmitters directly from the DPI 603 interface.

Technical Specifications Summary:

• Model: DRUCK DPI 603

• Part Number: P150048

• Pressure Ranges: Available in multiple ranges (e.g., -1 to 20 bar, 0 to 100 bar, etc.). Specific range for P150048 should be confirmed.

• Pressure Accuracy: Up to 0.025% of reading

• Electrical Measurement: mA, V, mV, Ω, T/C (types J, K, T, etc.)

• Electrical Source: mA, V, mV

• Display: High-resolution, backlit graphical LCD with touchscreen

• Data Logging: Yes, with substantial internal memory

• Connectivity: RS-232 (for PC communication), Optional HART®

• Case Rating: IP54

• Power: Rechargeable internal battery

Who Is This For?

The DRUCK DPI 603 is the perfect tool for:

• Instrumentation Technicians

• Calibration Engineers

• Maintenance Teams

• Quality Assurance/Control Professionals

Applications:

• Calibration of pressure transmitters, transducers, and sensors

• Testing and setting pressure switches

• Bench and field calibration of analog and HART devices

• Troubleshooting 4-20 mA control loops

• Documenting calibration results for audit trails (ISO, FDA, etc.)

Why Choose the DRUCK DPI 603?

The DPI 603 is more than just a pressure calibrator; it’s a productivity tool from the world-leading DRUCK brand (now part of Baker Hughes). It reduces calibration time, minimizes human error, and provides the confidence that comes from using a trusted, high-performance instrument.
