- Model: DPI 104
- Manufacturer: Druck (a renowned brand in pressure measurement, now part of Baker Hughes)

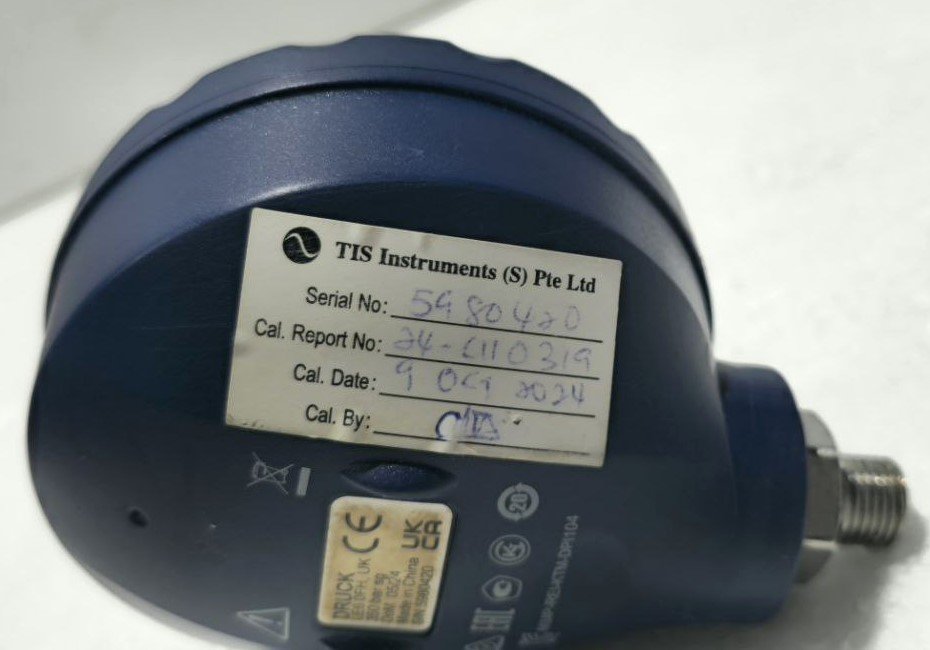

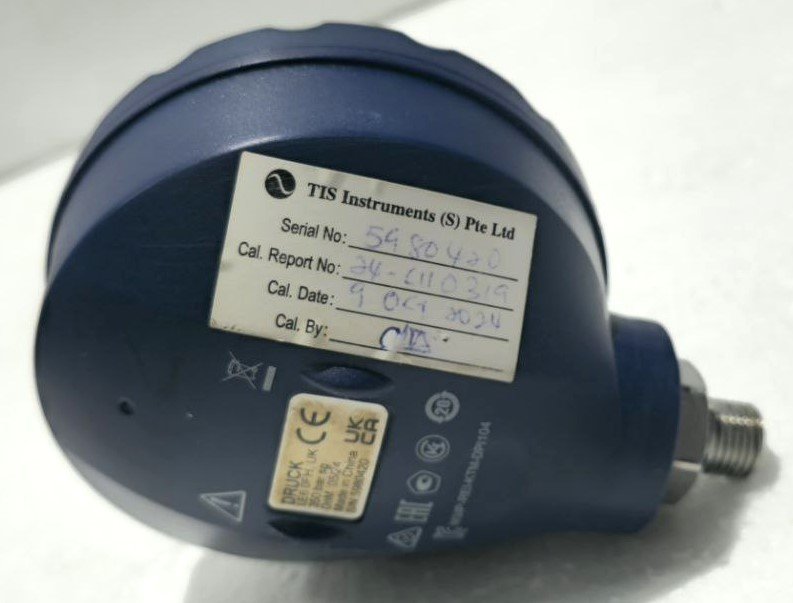

- Part/Order Number: 5980420 (This is the specific MSIP/NSN identifier)

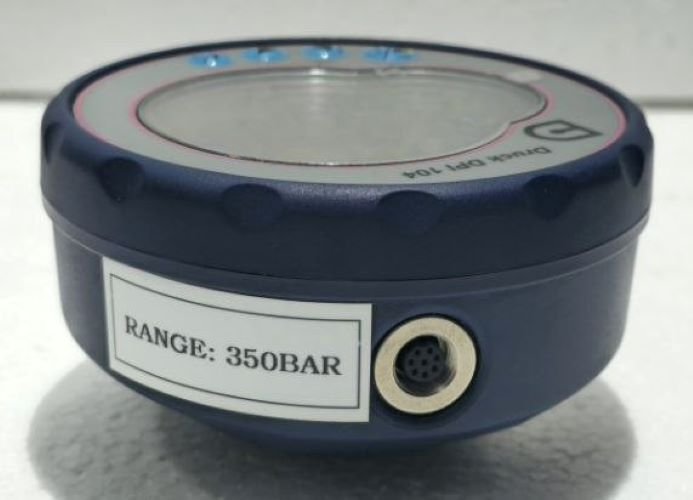

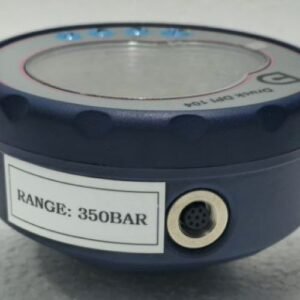

- Pressure Range: Up to 350 bar (This is the maximum pressure for this specific unit. The DPI 104 series comes in various ranges).
- Units: Multiple selectable units (bar, psi, kPa, inH2O, etc.).
- Accuracy: High accuracy typical of the DPI 104 series (e.g., ±0.05% of reading is common for this model).
- Pressure Type: Measures Gauge Pressure (SG). “SG” indicates it measures pressure relative to atmospheric pressure.
- Output / Sensor: High-precision internal pressure sensor.

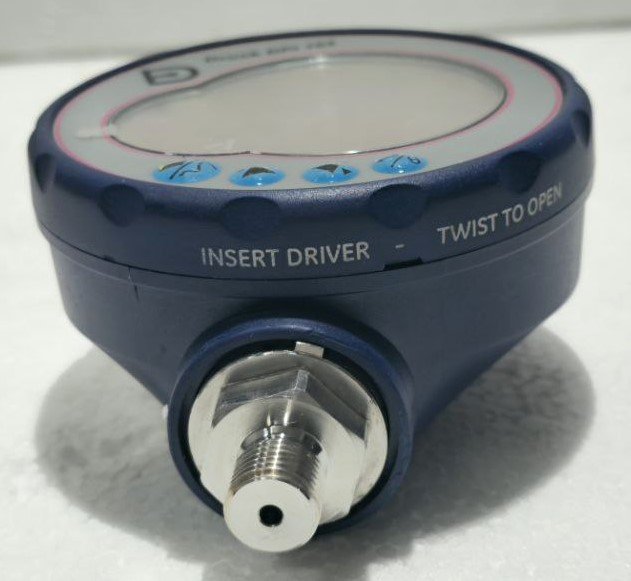

- Display: Integrated digital display for clear readout of measured pressure.
- Portability: Compact, battery-operated design for use in the field.
- Durability: Built to withstand harsh conditions, making it suitable for military, industrial, and calibration workshop use.
- Communications: Likely includes an electrical output (e.g., 4-20mA loop) for recording or controlling, in addition to the display.
The Druck DPI 104 (Part # 5980420) is a versatile and robust portable pressure calibrator and indicator. It combines a high-performance pressure sensor with a clear digital display in a single, handheld unit.
Its primary function is to accurately measure and display gauge pressure up to 350 bar (approximately 5076 psi). It is engineered to provide reliable readings in critical applications such as:
- Calibration & Testing: Used as a reference standard to calibrate other pressure gauges, transmitters, and switches.
- Field Service & Maintenance: Ideal for technicians servicing hydraulic systems, process control instrumentation, pumps, and valves.
- Industrial Monitoring: Provides a trusted measurement for pressure verification in manufacturing, oil & gas, and power generation.

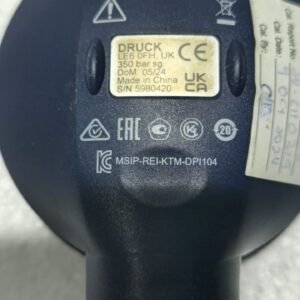

- Military & Aerospace: The MSIP REI designation suggests it meets specific Military Standard Item Profile (MSIP) or similar requirements, indicating it is built to rigorous standards for reliability and environmental hardening. KTM may refer to a specific military or government contract, kit, or project code.
|
