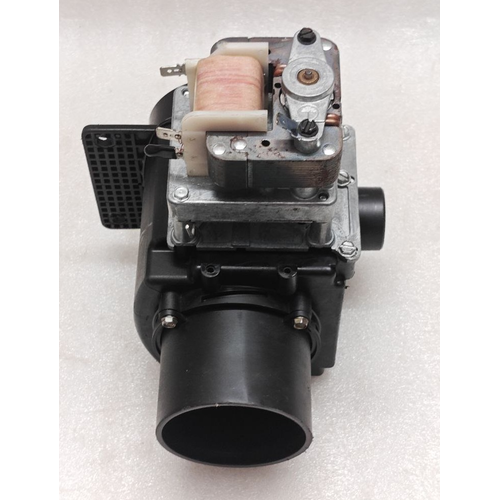

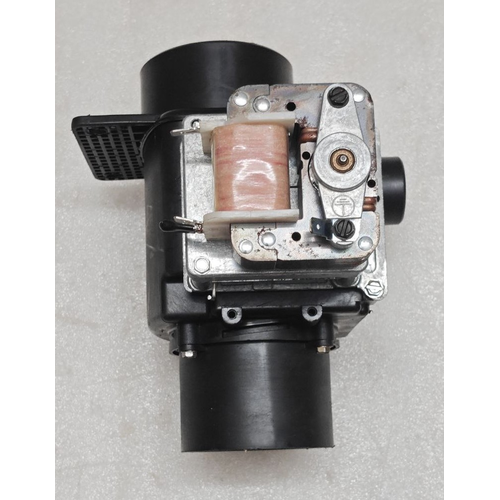

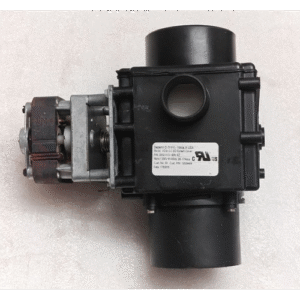

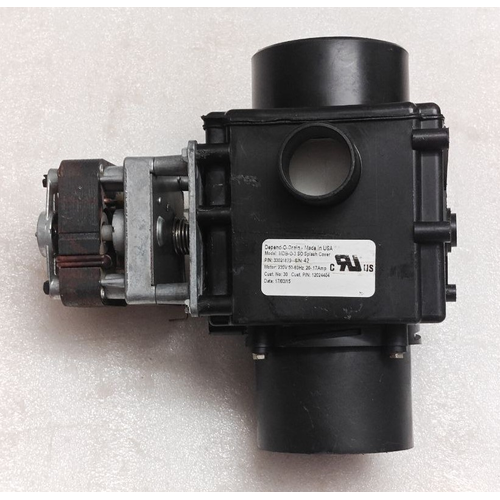

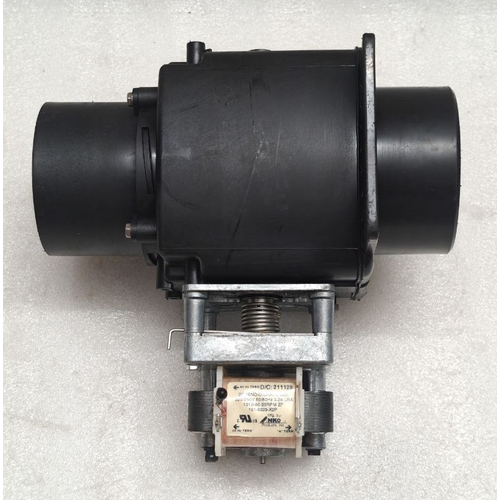

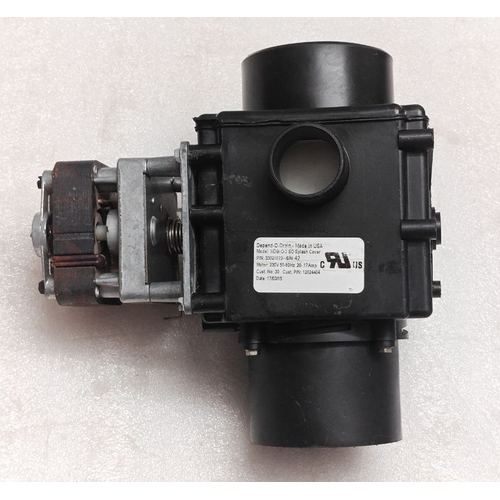

DEPEND-O-DRAIN (MODEL), MDB-O-3 SO, DRAIN VALVE, 3″, NO, INLINE, 230V/50-60HZ, 33021822 18:45

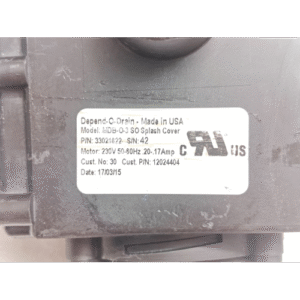

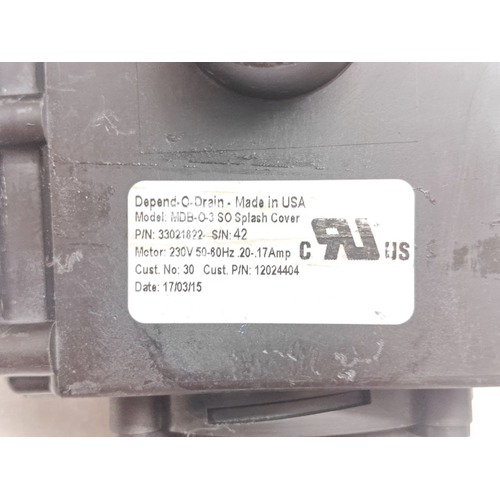

BRAND: DEPEND-O-DRAIN
MODEL: MDB-0-3 SO
SPLASH COVER
P/N: 33021822
S/N: 42
MOTOR: 230V, 50/60HZ,20-17Amp
CUST NO: 30
CUST P/N: 12024404
DATE: 17/03/15
MADE IN USA

he DEPEND-O-DRAIN MDB-O-3 SO is a high-performance, 3-port inline solenoid drain valve designed for efficient and reliable condensate removal in compressed air systems. This “Normally Open” (NO) valve is engineered to fail in the open position, ensuring maximum system protection by preventing pressure buildup and water accumulation in the event of a power failure. Operating on a 230V AC (50-60Hz) power supply, it is ideal for a wide range of industrial applications where consistent and automatic draining is critical.

Key Features & Benefits:

• Automatic Condensate Drainage: Automatically expels accumulated water, oil, and contaminants from air receivers, filters, and dryers, protecting your equipment and maintaining air quality.

• Normally Open (NO) Safety Design: In its de-energized state (power off), the valve remains open. This fail-safe design prevents dangerous pressure buildup and potential water-related damage to downstream equipment.

• 3-Port Inline Configuration (G1/4″): Features one inlet and two outlet ports, allowing for flexible installation and the option to route the drained condensate to a specific location.

• Robust Solenoid Operation: Provides fast, reliable, and consistent opening and closing cycles for precise control of the draining process.

• Universal Voltage (230V 50-60Hz): Compatible with standard industrial power supplies across many regions, simplifying integration into existing systems.

• Durable Construction: Built with high-quality materials to withstand harsh industrial environments, ensuring long service life and reduced maintenance.

• Model Number: MDB-O-3 SO | Material Number: 33021822

Technical Specifications:

• Model: DEPEND-O-DRAIN MDB-O-3 SO

• Manufacturer Part Number: 33021822

• Valve Type: Solenoid Operated Drain Valve

• Function: Normally Open (NO)

• Port Configuration: 3-Port, Inline

• Port Size: Typically G1/4″ (Confirm with manufacturer datasheet)

• Voltage: 230V AC

• Frequency: 50-60 Hz

• Application: Automatic draining of compressed air filters, dryers, receivers, and other vessels.

Applications:

Ideal for use in:

• Compressed Air Filters

• Refrigerated Air Dryers

• Desiccant Air Dryers

• Air Receivers/Tanks

• Moisture Separators

• General industrial automation systems requiring fluid control.
