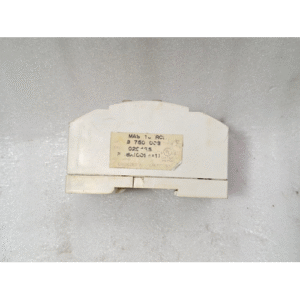

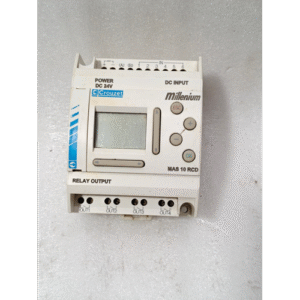

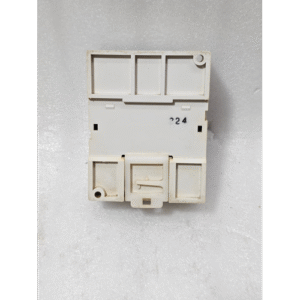

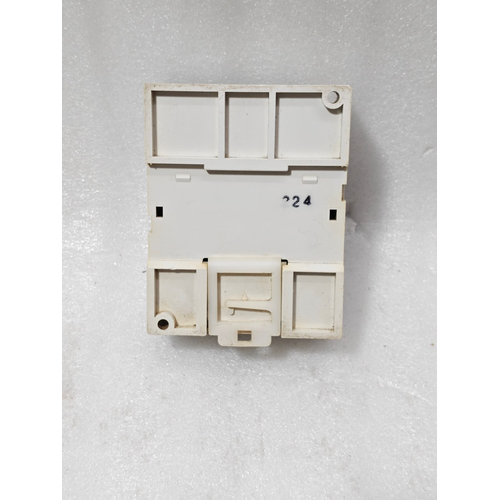

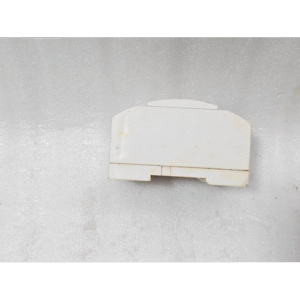

CROUZET MAS 10 RCD MILLENIUM CONTROLLER RELAY 8A 24VDC 029485 16:37

• BRAND: CROUZET
• MODEL: MAS 10 RCD
• RELAY OUTPUT
• POWER DC 24V
• OUTPUT: 8A
• MADE IN JAPAN

The Crouzet MAS 10 RCD Millenium is a versatile and compact programmable timer relay designed for industrial automation and control applications. With 8 different, user-selectable functions, this robust relay offers exceptional flexibility for timing tasks such as delayed start, interval control, pulse generation, and more. Operating on a 24VDC supply, it provides a reliable 8A switching capacity for a wide range of loads.

This model is a cornerstone of the Millenium series, known for its durability, ease of use, and DIN rail mounting for simple integration into any control panel.

Key Features & Benefits:

• 8 Programmable Functions: A single device replaces multiple dedicated timers. Functions include On-Delay, Off-Delay, Interval, Pulse Generator, One-Shot, Asymmetrical Cycle, Star-Delta, and Flicker.

• Wide Supply Voltage: Operates efficiently on 24VDC, making it suitable for standard industrial control circuits.

• Robust 8A Switching Capacity: Capable of directly controlling contactors, solenoids, small motors, and indicator lamps without the need for an intermediate relay.

• Easy Configuration: Intuitive configuration via a rotary switch for function selection and a potentiometer for time adjustment (from 0.1s to 10h).

• Compact DIN Rail Mounting: Saves valuable space in control cabinets and allows for quick and easy installation.

• LED Status Indication: Clear visual feedback for power and output state, simplifying setup and troubleshooting.

• High-Quality Construction: Designed and manufactured by Crouzet, a trusted leader in industrial components, ensuring long-term reliability.

Technical Specifications:

• Manufacturer: Crouzet

• Model Series: Millenium

• Product Type: Multifunction Timer Relay

• Reference / Part Number: MAS 10 RCD, 029485

• Supply Voltage: 24 VDC

• Output Type: SPDT (1 CO – Changeover Contact)

• Switching Capacity: 8A Resistive

• Number of Functions: 8

• Time Range: Adjustable from 0.1 seconds to 10 hours (depending on function and range)

• Mounting: 35mm DIN Rail

• Dimensions (W x H x D): 17.5mm x 90mm x 64.5mm

8 Available Timing Functions:

1. T: On-Delay – The output energizes after a set delay from the application of the input signal.

2. F: Off-Delay – The output remains energized for a set time after the input signal is removed.

3. I: Interval – The output energizes immediately and for a fixed time, regardless of the input signal duration.

4. P: Pulse Generator – Produces a continuous cycle of ON and OFF pulses.

5. M: One-Shot (Monostable) – The output provides a fixed-duration pulse upon receiving an input trigger.

6. C: Asymmetrical Cycle – Creates a repeating cycle with independent ON and OFF times.

7. Y: Star-Delta – Provides a changeover delay for star-delta motor starters.

8. L: Flicker – The output switches on and off at a fast rate, ideal for alarm or warning lights.

Common Applications:

The Crouzet MAS 10 RCD is ideal for a vast array of automation and control scenarios, including:

• Conveyor belt sequencing

• Packaging machinery

• Lighting control (stairwell lights, signage)

• Pump and motor control (anti-cycle timers, duty changeover)

• Ventilation and air conditioning systems

• Automated door and gate controls

• Industrial washing cycles
