CARLO GAVAZZI AC/DC SPD2430 24VDC-1.25A 24VDC1.25A 24VDC 1.25A 92028

CARLO GAVAZZI AC/DC SPD2430 24VDC-1.25A 24VDC1.25A 24VDC 1.25A 92028

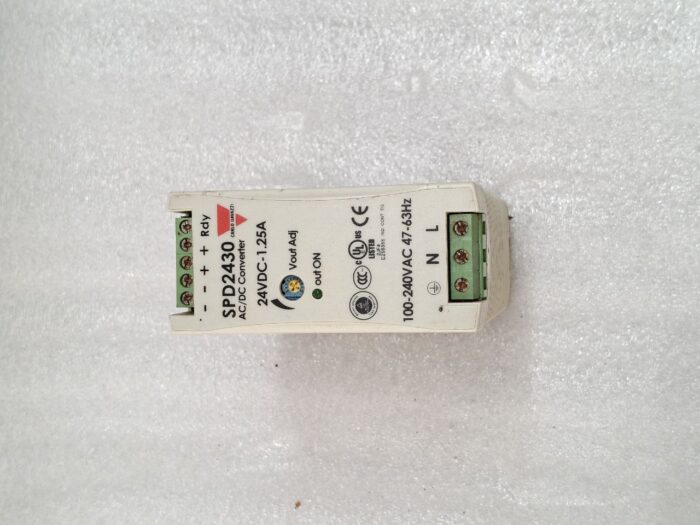

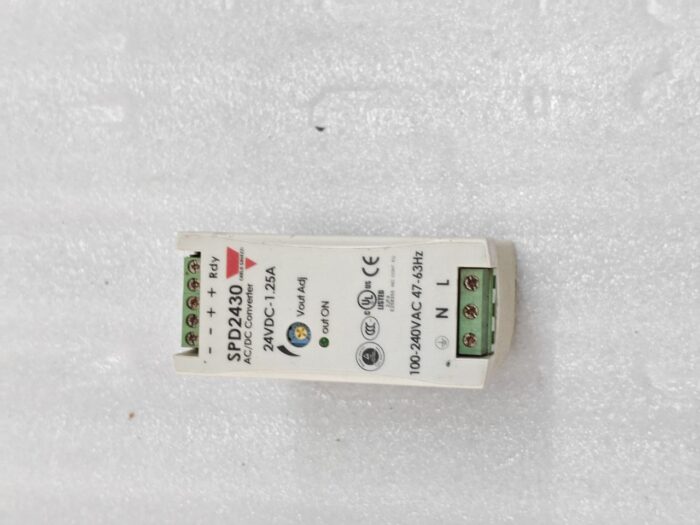

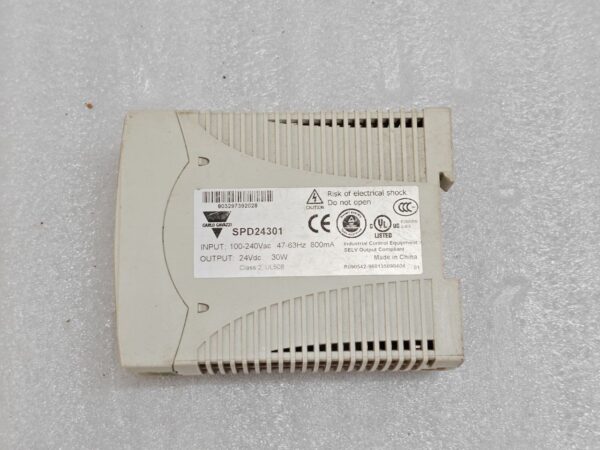

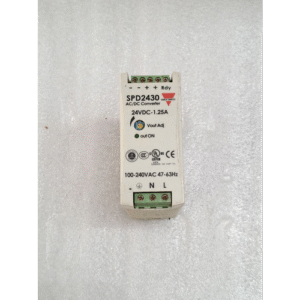

The Carlo Gavazzi SPD2430 is a compact, single-phase, 30-Watt DIN rail mountable power supply designed for industrial control applications. It is part of the reliable and cost-effective “SPD” series, known for providing clean and stable DC power for PLCs, sensors, relays, and other automation components.

Key Features

• Output: 24 VDC at 1.25 A, providing a total power of 30 Watts.

• DIN Rail Mountable: Easily installed on a standard TS35/7.5 or TS32/15 DIN rail, saving panel space and simplifying installation.

• Wide Range AC Input: Operates from 85-264 VAC, making it suitable for use in regions with varying line voltages and providing high immunity to input voltage fluctuations.

• High Efficiency: Typically >85%, reducing heat generation and energy consumption.

• Compact Design: Its slim form factor is ideal for space-constrained control cabinets.

• Reliable Operation: Features include overvoltage protection, overload protection, and short-circuit protection to ensure the safety of the power supply and the connected load.

• Long Service Life: Equipped with high-quality components, including long-life electrolytic capacitors, for a design life of over 10 years at full load and 40°C ambient temperature.

• Safety Certifications: Complies with international safety standards (UL/ cUL, CE marked).

Technical Specifications at a Glance

Typical Applications

The SPD2430 is designed for a wide range of industrial and building automation applications, including:

• Programmable Logic Controllers (PLCs)

• Sensors and Photoelectric Switches

• Relays, Contactors, and Solenoid Valves

• Human-Machine Interfaces (HMIs)

• Control Cabinets for Machinery

• Building Management Systems (BMS)
