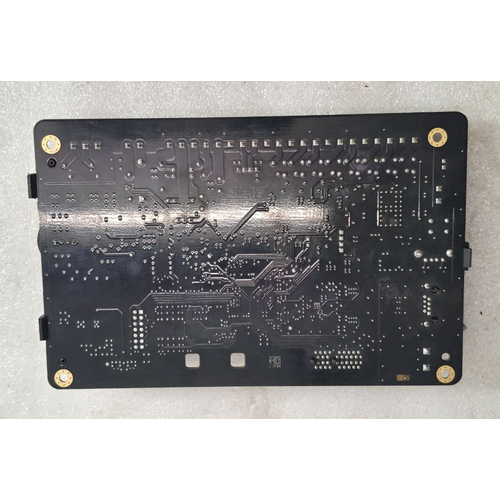

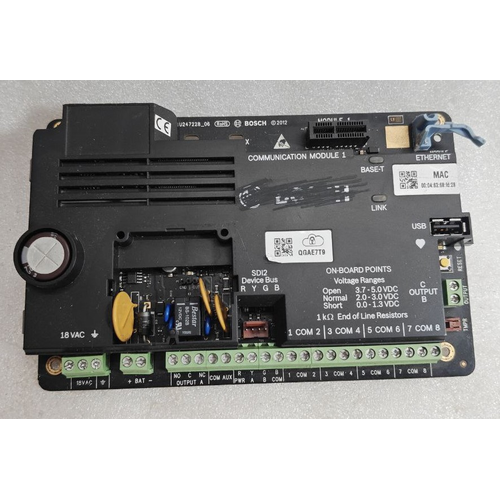

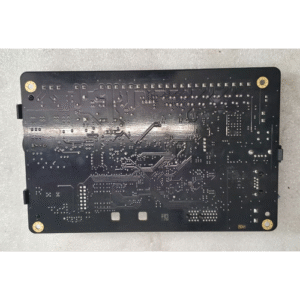

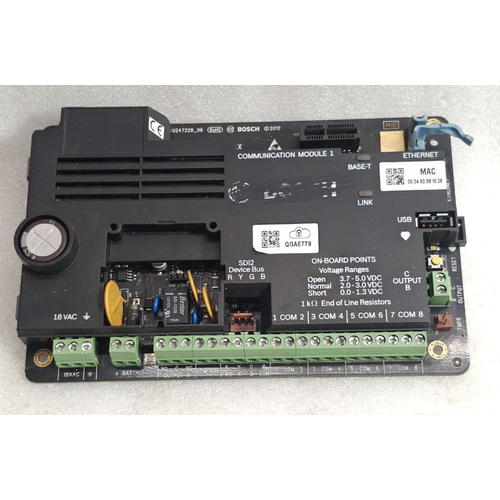

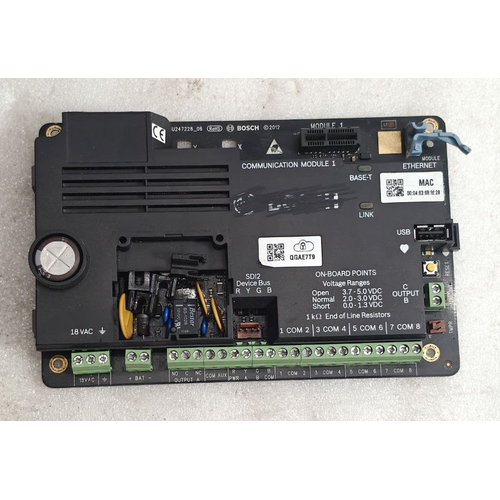

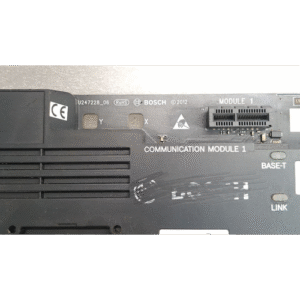

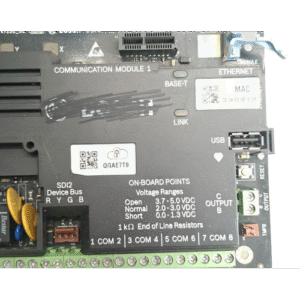

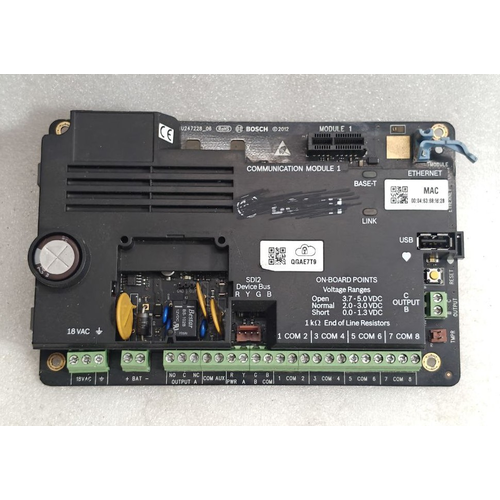

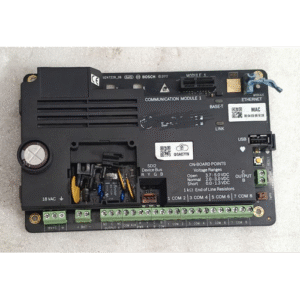

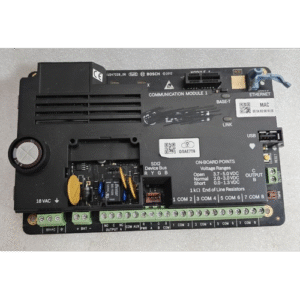

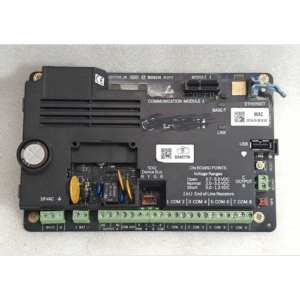

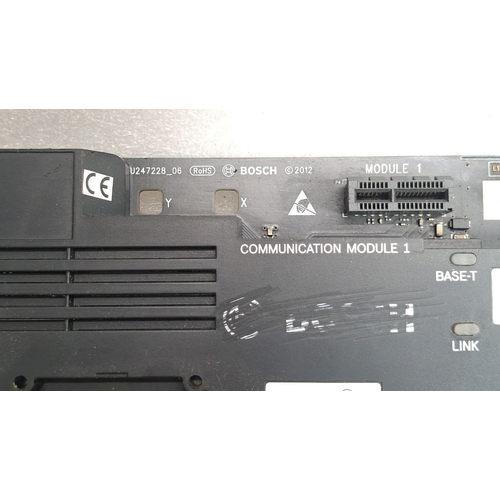

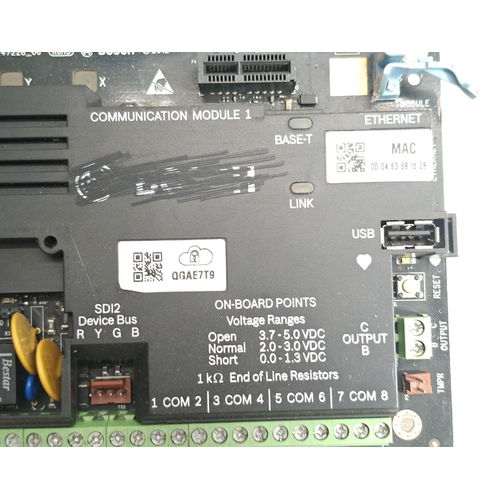

BOSCH B465 UNIVERSAL DUAL PATH COMMUNICATION MODULE 1 15:28

The Bosch B465 is a sophisticated alarm communication module designed for professional-grade security and fire alarm systems. Its primary function is to provide dual-path reporting for alarm signals, sending them from a control panel to a central monitoring station via two independent communication channels for maximum reliability.

Key Features & Specifications

• Manufacturer: Bosch (A global leader in professional security and fire alarm systems, known for high-reliability products).

• Model: B465 Universal Dual Path Communication Module

• Type: Alarm Signal Transmitter / Communicator.

• Dual-Path Technology: This is its core feature. It uses two separate communication methods to send signals:

  1. Cellular Network: It contains a 4G LTE cellular radio (and likely 3G fallback) to communicate over mobile networks. This is the primary wireless path.

  2. Internet (IP): It has an Ethernet port for connecting to a local area network (LAN) and sending signals over the internet. This is the primary wired path.

  • If one path fails (e.g., a internet outage or cellular jammer), the module automatically switches to the other, ensuring the alarm signal gets through.

• Compatibility: “Universal” in its name means it is designed to work with a wide range of Bosch control panels (like the B8512G, B9512G, FPD-7024 series, and many more) via a compatible bus interface. It may also work with some non-Bosch panels using contact ID outputs.

• Power: Typically powered by the main security alarm control panel it is connected to.

• Backup Power: Likely has a connection for a backup battery to maintain communication during a power failure.

• Reporting: Transmits standard alarm signals (e.g., Contact ID, SIA) to the central station, indicating alarms, troubles, restorals, and supervisory signals.

What is it used for? (Purpose)

This module is the critical link that ensures an alarm signal is received by the monitoring company. It is used in:

• Commercial Security Systems: For businesses, banks, and retail stores.

• Residential Security Systems: For high-end smart homes or homes in areas with high security needs.

• Fire Alarm Systems: To ensure fire signals are reliably transmitted to the fire department.

• Critical Infrastructure Security: Where system failure is not an option.

Who is this for? (Ideal User)

This is a professional-grade component exclusively for:

• Licensed & Certified Security System Installers and Technicians.

• Security Companies upgrading or repairing existing Bosch systems.

• It is NOT a DIY product. Installation requires programming the alarm panel, configuring the module for the specific central station, and potentially activating a cellular service plan.

Critical Considerations for a “USED” Unit

1. Cellular Carrier Sunsetting: This is the biggest risk. Cellular networks (especially 3G) are being shut down. You must verify that the cellular module inside this unit is 4G LTE capable and is still supported by carriers (e.g., AT&T, Verizon). A used unit could be an obsolete 3G model, making it worthless.

2. Compatibility: Must be confirmed to work with the specific model of the existing Bosch control panel.

3. Programming: Requires professional software (like Bosch’s Config Tool) and knowledge to program the dialer numbers, account numbers, and communication formats.

4. Service Activation: The cellular component will require an active monthly service plan with a carrier, which often involves a fee and activation process.

5. Unknown History: The internal battery may be dead, and the cellular radio may be locked to a specific carrier or out of date.
