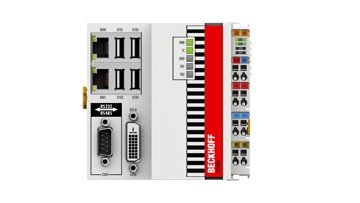

Beckhoff CX5020-0112 | BECKHOFF | Embedded PC with Intel Atom® process
- Manufacturer: BECKHOFF
- CX5020-0112: E-bus, Windows Embedded CE 6, TwinCAT 2 PLC runtime, TwinCAT 2 NC PTP runtime
- Processor: Intel Atom® Z530, 1.6 GHz clock frequency
- Number of cores: 1
- Flash memory: slot for Compact Flash card, 128 MB included (expandable)
- Main memory: 512 MB RAM (expandable ex factory to 1 GB)
- Persistent memory: integrated 1-second UPS (1 MB on Compact Flash card)
- Interfaces: 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0, 1 x optional interface
- Diagnostics LED: 1 x power, 1 x TC status, 1 x flash access, 2 x bus status
- Clock: internal battery-backed clock for time and date (battery exchangeable)
- Operating system: Windows Embedded CE 6, Windows Embedded Standard 2009
- Control software: TwinCAT 2 runtime
- TwinCAT 3 runtime (XAR)
- I/O connection: E-bus or K-bus, automatic recognition
- Power supply: 24 V DC (-15 %/+20 %)
- Current supply E-bus/K-bus: 2 A
- Max. power consumption: 13 W
- Dimensions (W x H x D): 106 mm x 100 mm x 92 mm
- Weight: approx. 575 g
- Operating/storage temperature: -25…+60 °C/-40…+85 °C
- Relative humidity: 95 %, no condensation
- Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
- EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
- Protection rating: IP20
- Approvals/markings: CE, UL, with CX1900-0105 ordering option: ATEX
- Ex marking: II 3 G Ex nA IIC T4 Gc
- TwinCAT 3 platform level: Performance (40)
- Shipping weight: 2 Kg
