BAUMER ITD 4 A 4 Y78 11096357 INDUSTRIAL ENCODER INCREMENTAL 1024 H IN H2SK12 S 14 12:20

• BRAND: BAUMER
• MODEL: ITD 4A 4 Y78
• 1024 H NI H2SK12
• S14
• 8-30 VDC
• ITEM: 11096357
• SERIAL: 700003532350
• WWW.BAUMER.COM
• MADE IN GERMANY
• K233

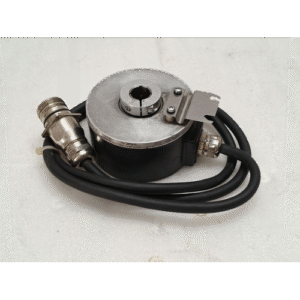

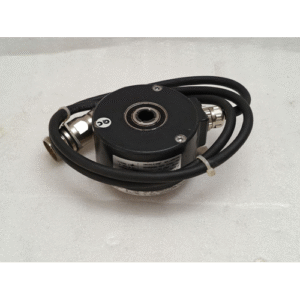

Product Description: Baumer ITD 4 A 4 Y78 Industrial Incremental Encoder

This is a high-quality, industrial-grade incremental rotary encoder designed for precise motion feedback in demanding automation and machinery applications. The model number ITD 4 A 4 Y78 specifies its key electrical and mechanical characteristics.

Detailed Breakdown of the Part Number

Let’s decode the model number ITD 4 A 4 Y78 and the other markings:

1. ITD: This is the Series Name. Baumer’s ITD series is known for its robust industrial design, high resolution, and reliability.

2. 4: This indicates the Output Circuit.

   • 4 typically signifies a Line Driver output (RS-422 compatible). This provides differential signals (A, /A, B, /B) which are highly resistant to electrical noise, making it ideal for long cable runs in industrial environments.

3. A: This denotes the Supply Voltage.

   • A usually means a universal voltage range, commonly 5 VDC.

4. 4: This specifies the Resolution (Pulses per Revolution).

   • 4 in this position corresponds to 1024 PPR. This is confirmed by the text “1024” on the label.

5. Y78: This is a Variant/Special Code. This internal Baumer code specifies details like the shaft type, seal type, or specific customer requirements. In this case, it’s associated with the H2SK12 S 14 shaft and connection specification.

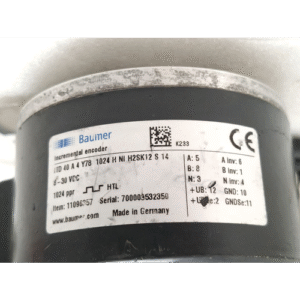

Key Specifications from the Label

• Type: Industrial Incremental Encoder

• Resolution: 1024 PPR (Pulses Per Revolution). This means it outputs 1024 square wave pulses per full shaft rotation.

• Output Signal: Line Driver (Differential)

• Supply Voltage: Typically 5 VDC (based on the “A” in the model code).

• Connection: H2SK12 S 14

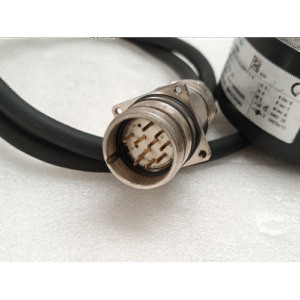

  • This refers to a specific connector type. The H2SK12 is a Baumer-specific code for a 12-pin, M23-style industrial circular connector.

• Serial Number: 11096357

  • This is a unique identifier for this specific unit, used for tracking, warranty, and factory calibration.

• Catalog Number: Y78 11096357 (This combines the variant and serial number).

SEO-Optimized Product Description

Title: Baumer ITD 4 A 4 Y78 – 1024 PPR Incremental Encoder with Line Driver Output

Meta Description: Industrial Baumer ITD incremental encoder, 1024 PPR, Line Driver (RS-422) output, 5VDC supply. Features a robust housing and M23 connector for harsh environments. Part # ITD 4 A 4 Y78.

Product Overview:

The Baumer ITD 4 A 4 Y78 is a premium incremental rotary encoder built for high-performance industrial automation. With a resolution of 1024 pulses per revolution (PPR) and a noise-immune Line Driver output, it delivers precise and reliable feedback for speed, position, and direction control.

Key Features & Benefits:

• High Resolution (1024 PPR): Provides precise motion feedback for accurate speed regulation and position counting.

• Line Driver Output (RS-422): Differential signaling ensures superior noise immunity and reliable data transmission over long distances in electrically noisy industrial settings.

• Robust Industrial Design: The encoder is built to withstand the rigors of factory environments, including shock, vibration, and contaminants.

• Standard M23 Connector (H2SK12): Features a common industrial circular connector for quick, secure, and reliable cabling.

• 5 VDC Power Supply: Standard voltage for compatibility with most PLCs, drives, and motion controllers.

Typical Applications:

• Servo Motors and Drives

• CNC Machinery

• Packaging Equipment

• Material Handling Systems

• Printing Presses

• Textile Machinery

• Robotics and Automation
