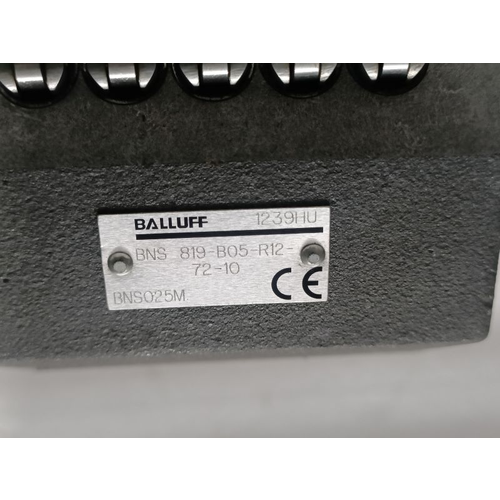

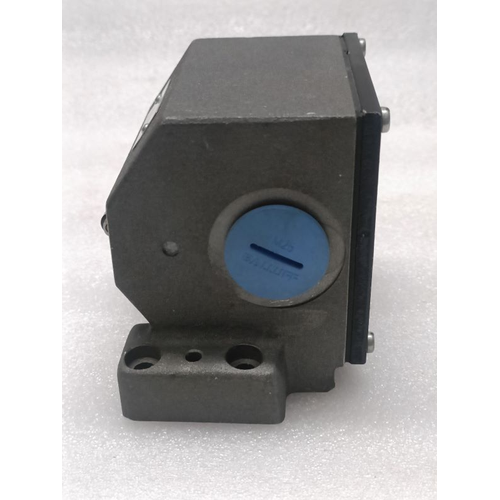

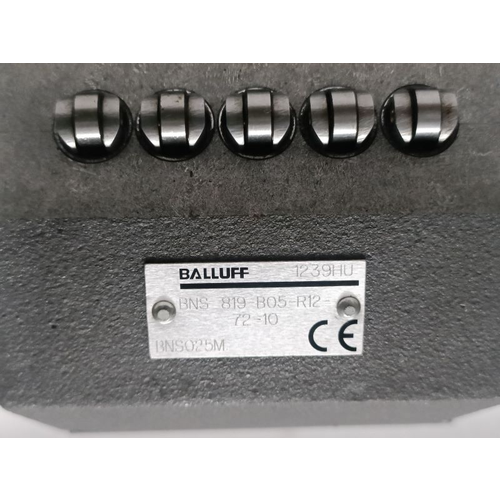

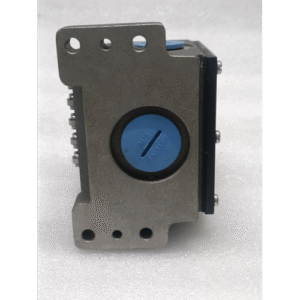

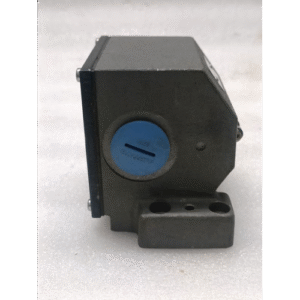

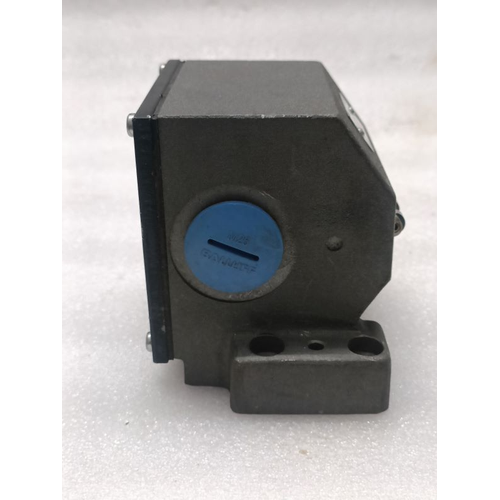

BALLUFF BNS 819-B05-R12-72-10 / BNS819B05R127210

BALLUFF BNS 819-B05-R12-72-10  / BNS819B05R127210

The Balluff BNS 819-B05-R12-72-10 is a high-precision, analog inductive distance sensor designed for demanding industrial automation applications. This sensor provides a continuous, non-contact measurement of the position, displacement, or vibration of metallic targets, making it an ideal solution for tasks requiring extreme accuracy and reliability.

Part of Balluff’s renowned BNS 819 series, this model is engineered for easy integration and robust performance in harsh environments, such as those found in machine tools, assembly automation, and press shops.

Key Features & Benefits

• High-Precision Analog Output: Delivers a continuous voltage signal (0-10 V) proportional to the distance to the target, enabling precise monitoring and control in closed-loop systems.

• Extended Sensing Range: With a measurement range of 10 mm, it is suitable for applications requiring a longer working distance.

• Exceptional Linearity and Resolution: Provides highly accurate and repeatable measurements, ensuring consistent process quality and reducing scrap parts.

• Robust Metal Housing: The stainless steel face and threaded barrel (M18x1) offer excellent resistance to mechanical impact, wear, and harsh industrial coolants or lubricants.

• Integrated IO-Link Interface: This “Smart Sensor” capability allows for easy parameterization, advanced diagnostics, and streamlined device replacement, minimizing downtime.

• Fixed Cable Connection: The 2-meter, PVC-jacketed cable (potted connection) provides a robust and reliable solution for applications where connector failure is a concern.

Technical Specifications (Decoded from Part Number)

The part number BNS 819-B05-R12-72-10 can be broken down as follows:

• BNS 819: Series name for Balluff’s analog inductive distance sensors.

• B05: Specific model variant with a 10 mm measuring range and 0-10 V analog output.

• R12: Defines the mechanical design as an M18x1 threaded barrel with a fixed cable exit.

• 72: Specifies a 2-meter, 3-conductor PVC cable.

• 10: Indicates the electrical connection is pin 3 (IO-Link/SDI) according to the pinout.

Summary of Key Specs:

• Function: Analog Inductive Distance Sensor

• Output Signal: 0 – 10 V

• Sensing Range: 10 mm

• Housing: M18 x 1, Stainless Steel

• Connection: 2m fixed PVC cable

• Communication: IO-Link 1.1

• Protection Class: IP67

Typical Applications

This sensor is perfect for any application requiring non-contact, precise distance or position feedback:

• Position Monitoring of hydraulic and pneumatic cylinders

• Vibration Analysis on motors, spindles, and rotating machinery

• Thickness Measurement of metal sheets or parts

• Runout and Eccentricity detection

• Press Ram positioning and control

• Automated Assembly and robotics for end-effector positioning
