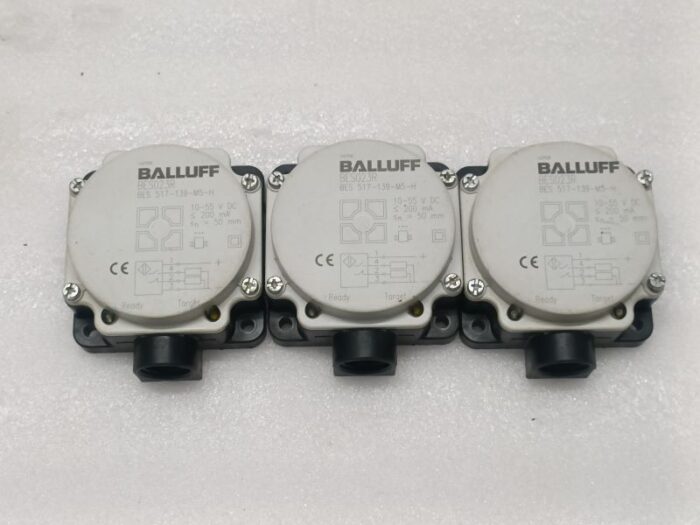

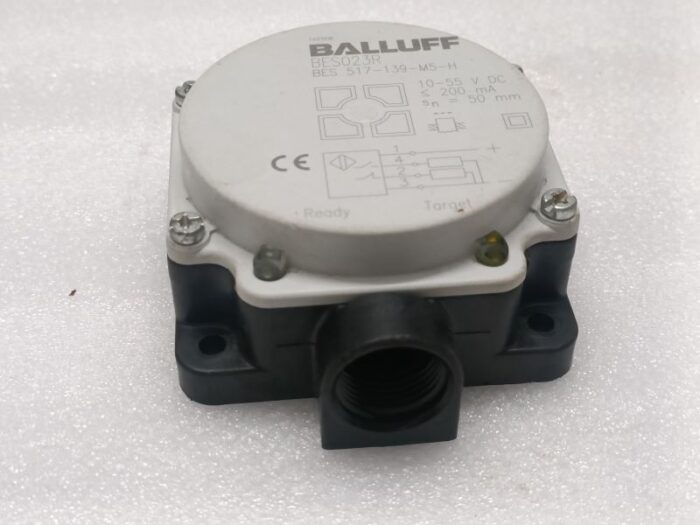

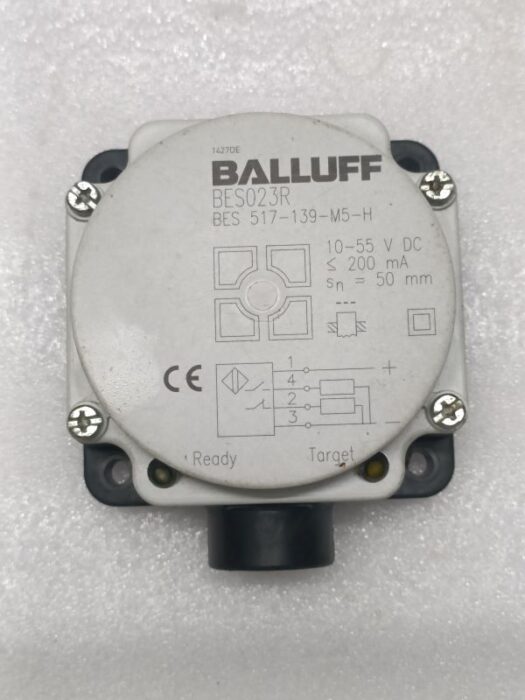

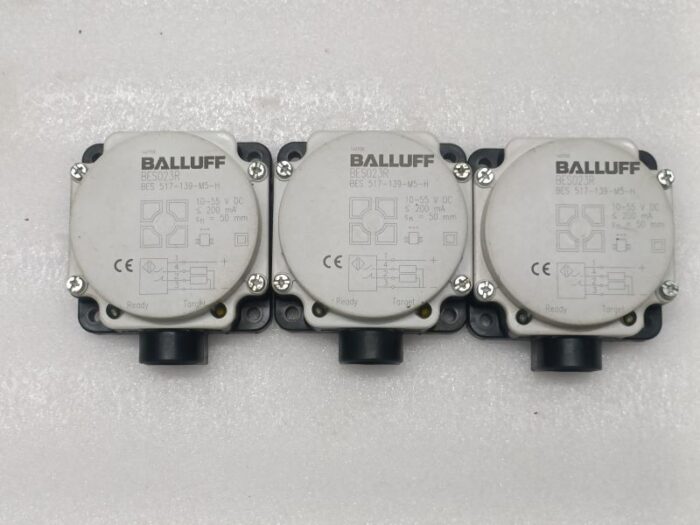

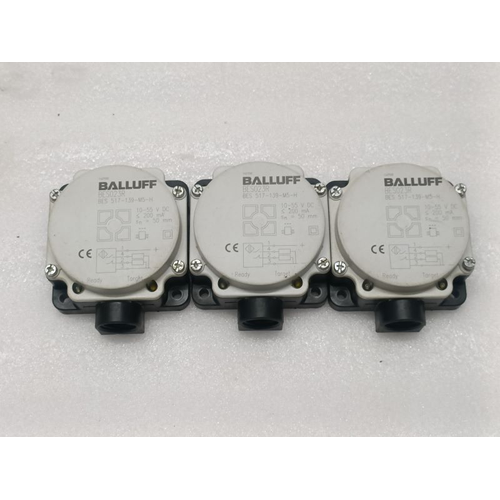

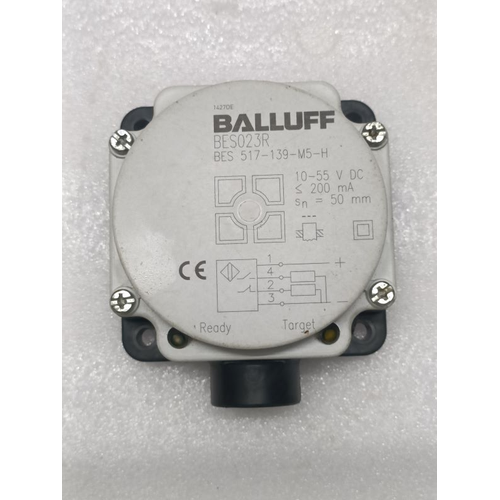

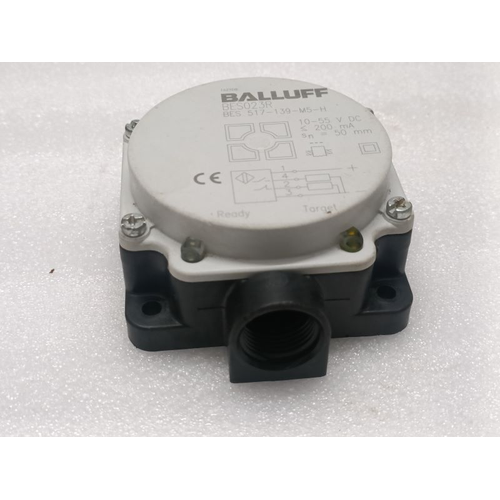

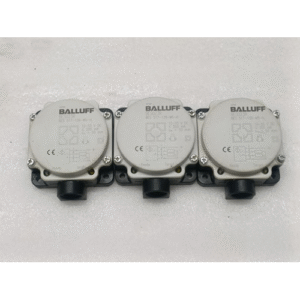

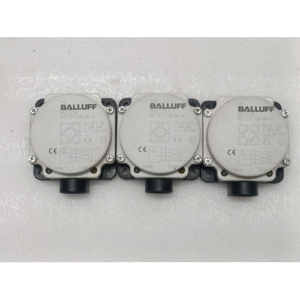

BALLUFF BES 517-139-M5-H / BES517139M5H Industrial Control System
Â
- Manufacturer: Balluff
- Inductive sensor
- BES 517-139-M5-H
- BES023R
- Active surface :
- PNP :
- NO/NC :
- 50.00 mm
- Non embeddable
- Screw terminal
- General attributes
- Approvals / Conformity : CE
- Basic standard : IEC 60947-5-2
- Enclosure Type per IEC 60529 : IP67
- Function indicator : Yes
- Polarity reversal protected : Yes
- Power indicator : Yes
- Protection Class : II
- Short circuit protected : Yes
- Electrical attributes :
- Eff. operating distance Sr
- Connection type : Screw terminal
- Eff. operating current Ie : 200 mA
- Eff. operating voltage Ue DC : 24.0 V
- Electrical version : DC, direct current
- Load capacitance max. (at Ue) : 1.000 ?F
- Max. no-load cur. Io undamped : 15.0 mA
- Minimum operating current Im : 0 mA
- No-load current Io damped max. : 15.0 mA
- Operating voltage UB max. DC [V] : 55.0 V
- Operating voltage UB min. DC [V] : 10.0 V
- Rated insulation voltage Ui : 250 VAC
- Rated short circuit current : 100 A
- Ripple max. (% of Ue) : 15 %
- Switching freq. f max. (at Ue) : 100 Hz
- Switching function : NO/NC
- Switching output : PNP
- Voltage drop static max. : 2.5 V
- Mechanical attributes
- Ambient temperature Ta max. : 70 ?C
- Ambient temperature Ta min. : -25 ?C
- Assured operating distance Sa : 40.00 mm

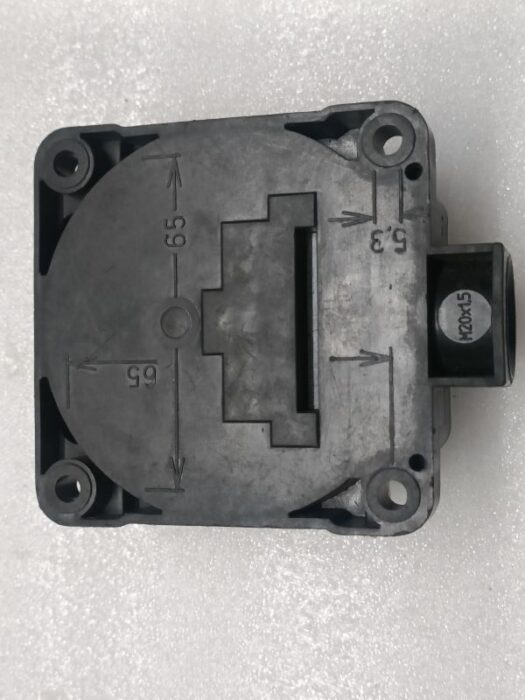

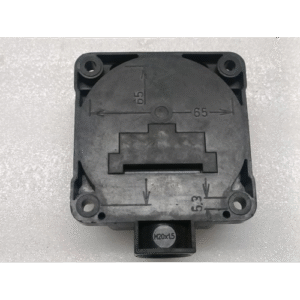

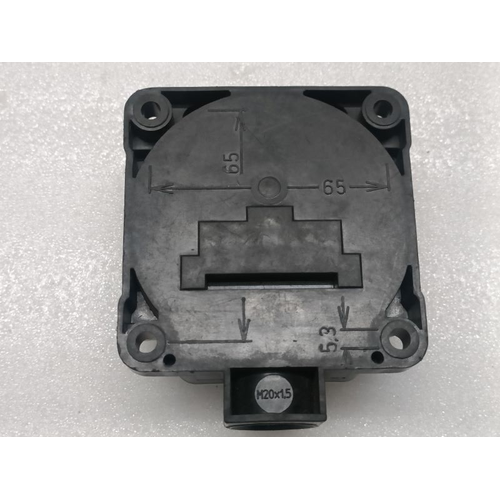

- Cable gland thread size : M20x1.5
- Depth : 40.0 mm
- 50.00 mm
- Height (small side) : 80.0 mm
- Housing material : PBT
- Mech. installation condition : Non embeddable
- Rated operating distance Sn [mm] : 50.00 mm
- Sensing face material : PBT
- Tightening torque : 4-5 Nm (M20x1.5)
- Tightening torque for clamping : 0.80 Nm
- Width (long side) : 80.0 mm
- Wire cross-section max. : 2.5 mm?
- Additional text : LED 1: Function; LED 2: Operating voltageThe sensor is functional again after the overload has been eliminated.
- Shipping Weight : 1 Kg
