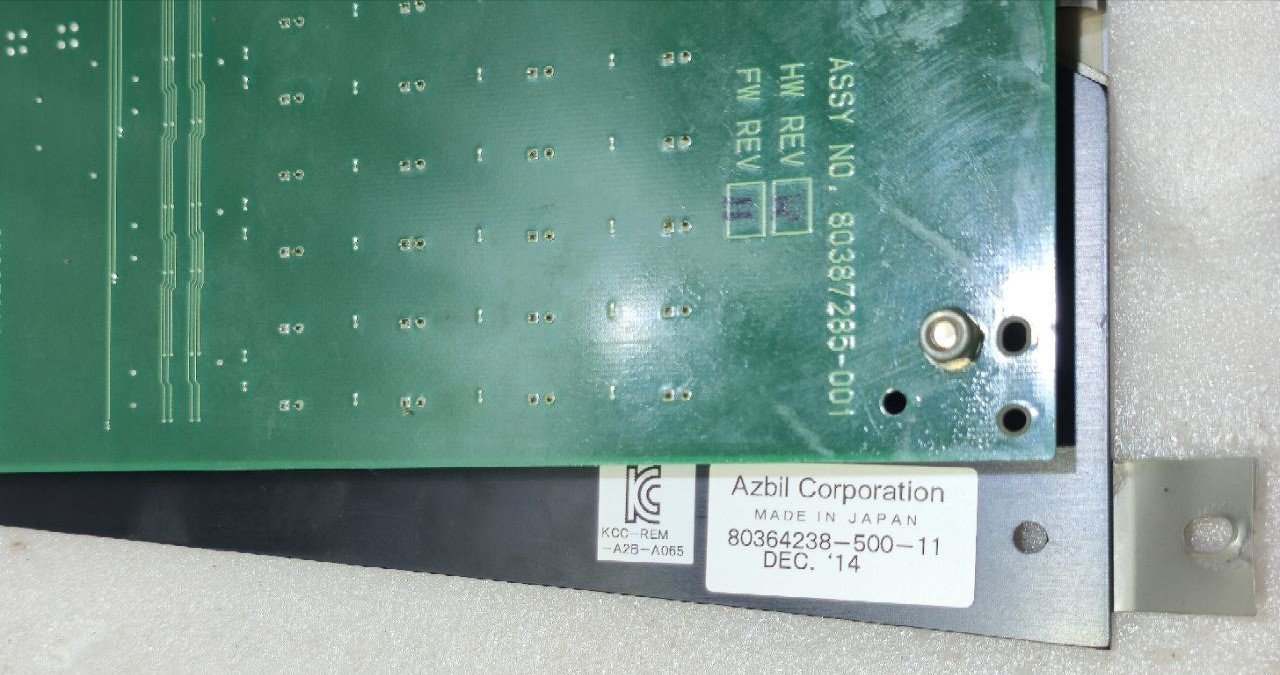

AZBIL CORPORATION 80364238 500 11 HONEYWELL CODE 611454063 OPERATOR KEYBOARD

AZBIL CORPORATION 80364238 500 11 HONEYWELL CODE 611454063 OPERATOR KEYBOARD

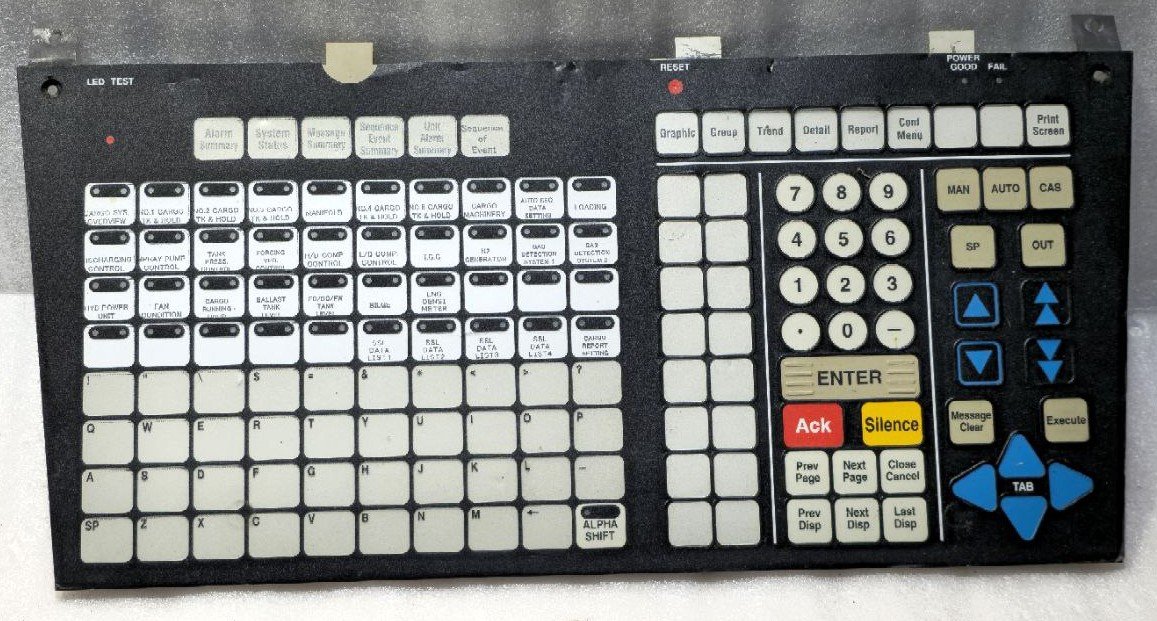

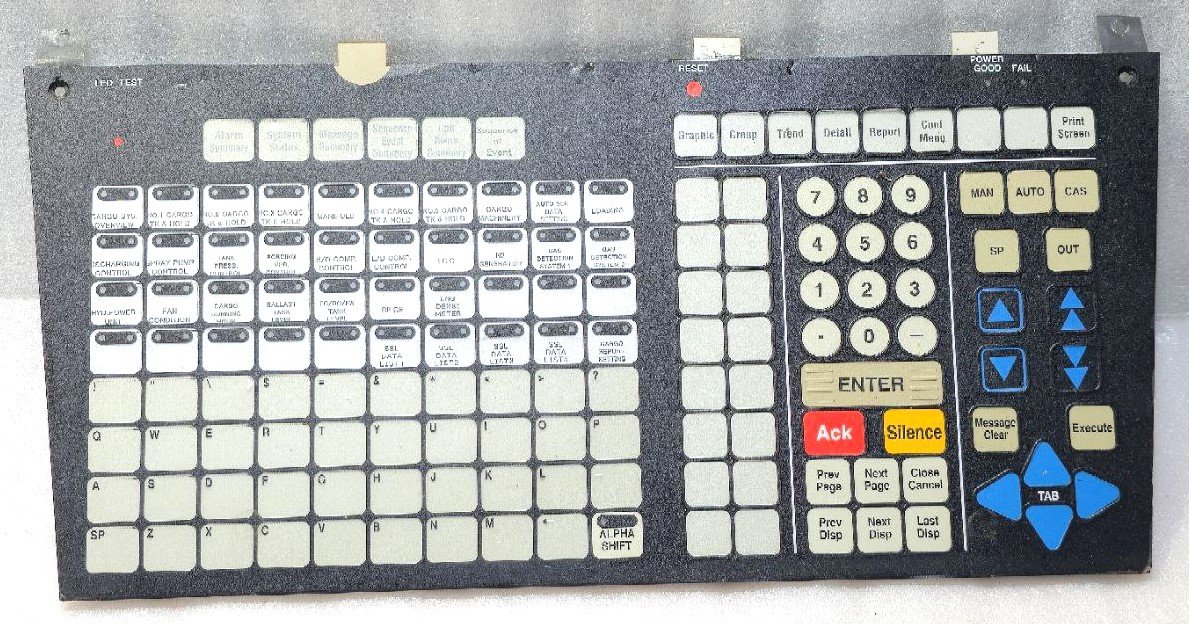

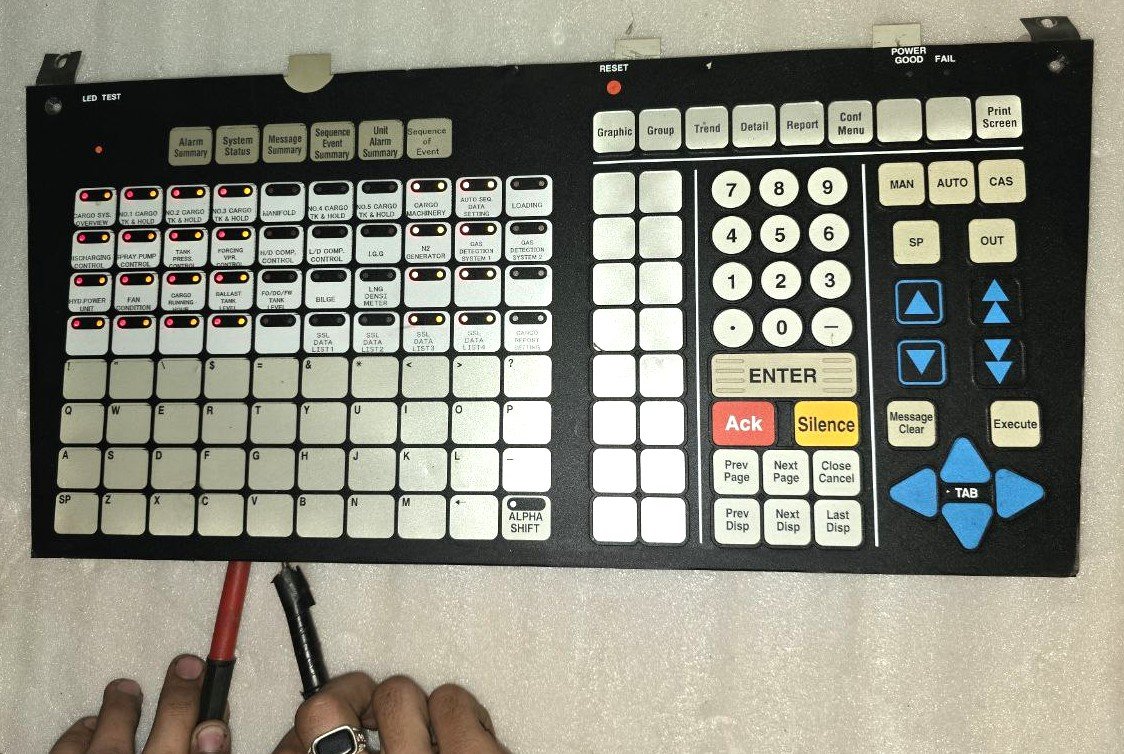

Honeywell UDC 500 / 600 / 700 Series Operator Interface or Keyboard Module.

Primary Identification: Honeywell Supplier Code (611454063) or Honeywell Part Number that this code corresponds to (exact PN would require internal Honeywell cross-reference).

Technical Description:
This is a dedicated operator keyboard/interface panel designed for Honeywell’s UDC series of single-loop digital controllers (such as the UDC 500, 600, or 700). It provides a localized human-machine interface (HMI) for process monitoring and control.

Key Features & Functions:

• Direct Controller Interface: Plugs directly into a compatible Honeywell UDC controller.

• Digital Display: Typically a 4-digit LED or vacuum fluorescent display for showing process variables (PV), setpoints (SP), and other parameters.

• Tactile Keypad: Dedicated keys for navigation, parameter adjustment, mode selection (Auto/Manual), and alarm acknowledgment.

• Process Control: Allows operators to view process values, change setpoints, adjust output levels, and toggle control modes without needing a central DCS/SCADA system.

• Configuration Access: Often provides access to controller configuration menus for initial setup or tuning by authorized personnel.

• Robust Design: Built for industrial environments, often with a NEMA-rated faceplate.

Typical Applications:
This keyboard is used wherever a Honeywell UDC controller is installed, providing essential local control and visibility for:

• Industrial Furnaces & Kilns

• Boiler Control

• Environmental Chambers

• Process Heating & Cooling Loops

• Packaged Equipment with embedded temperature/pressure control.
