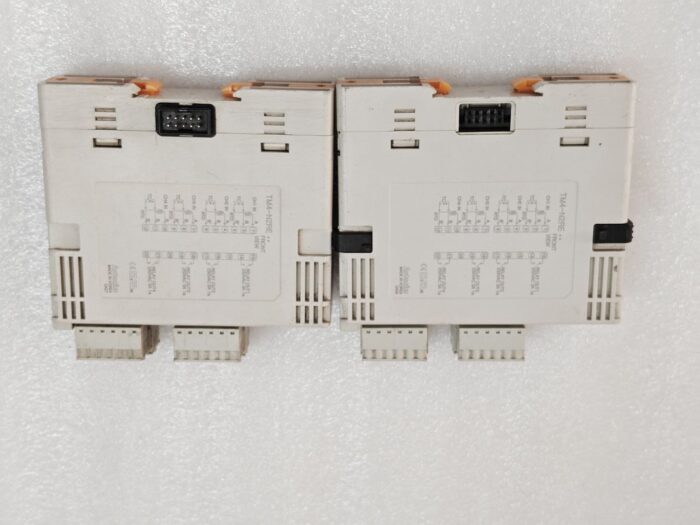

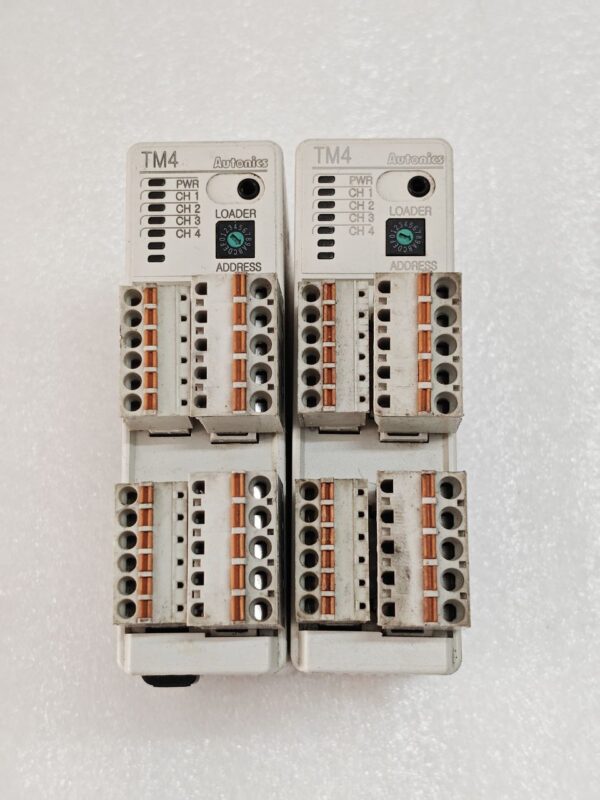

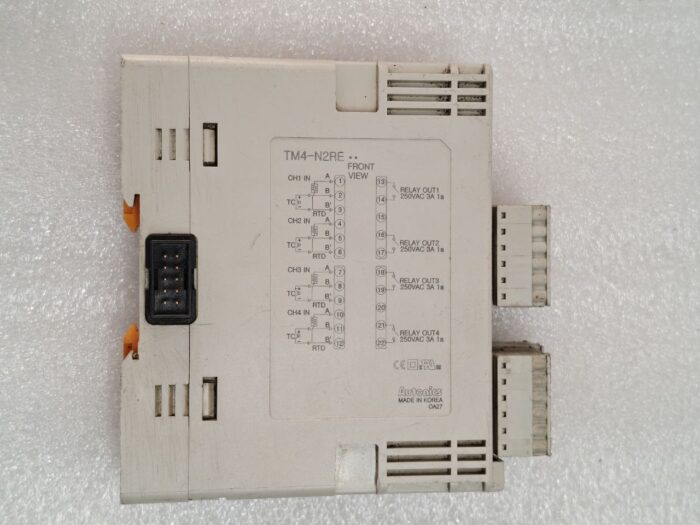

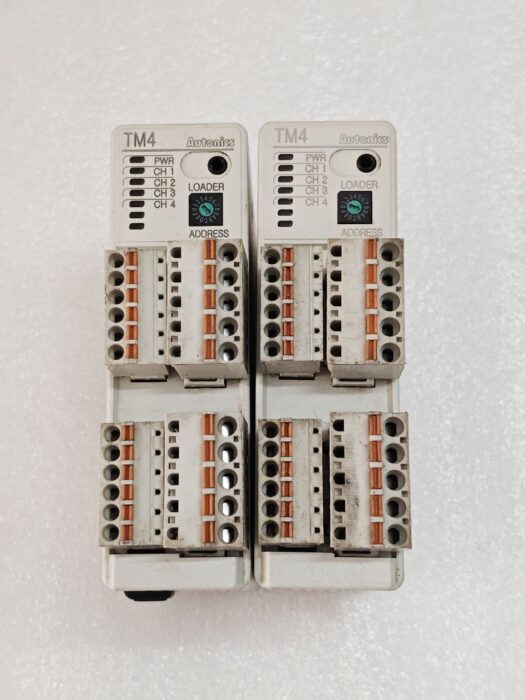

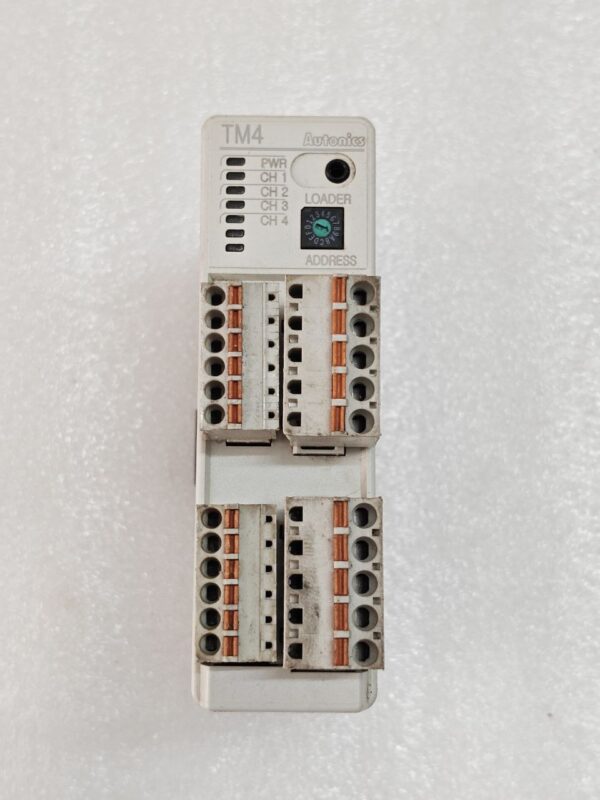

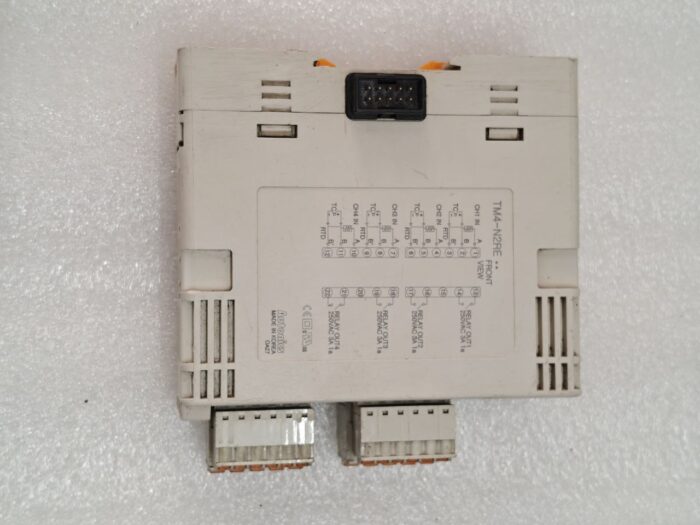

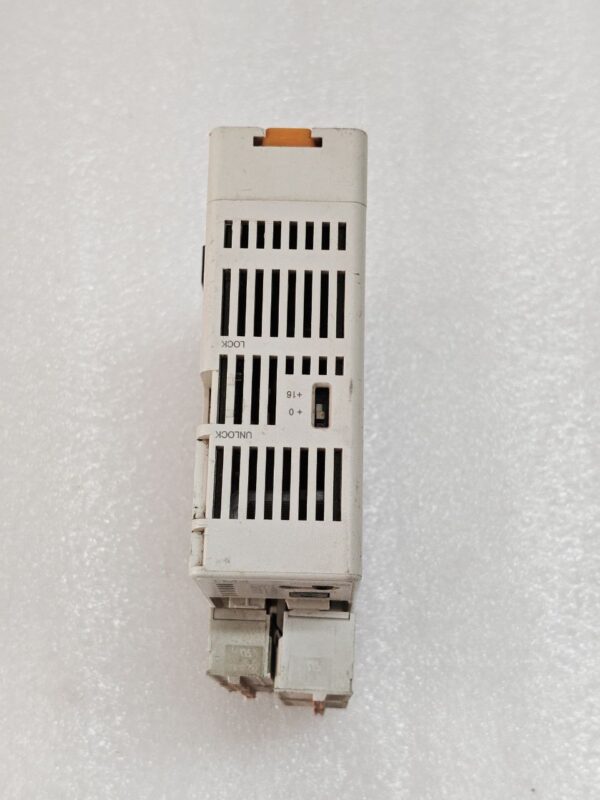

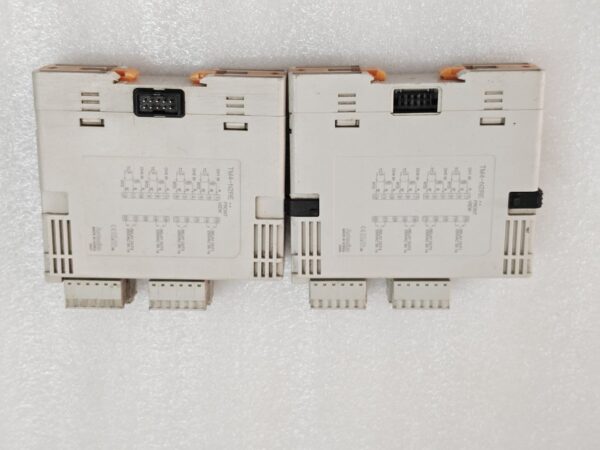

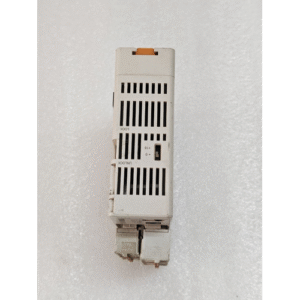

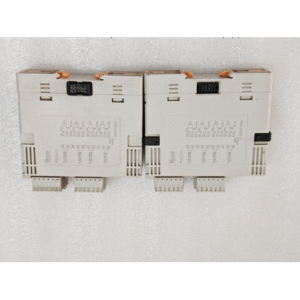

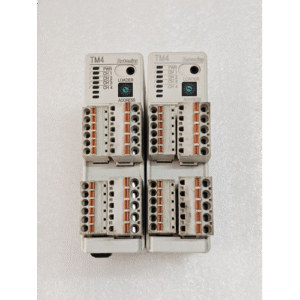

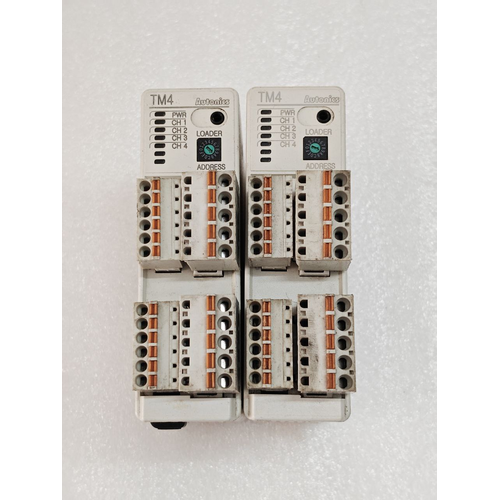

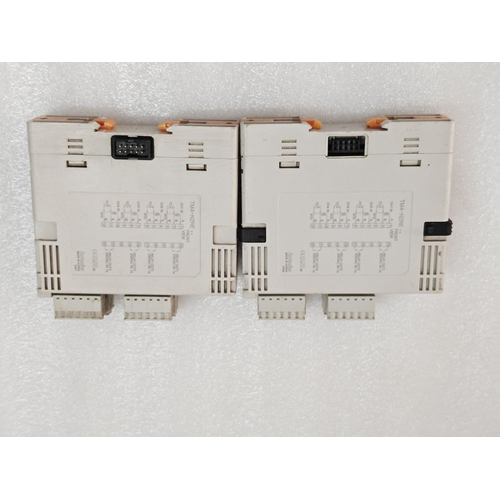

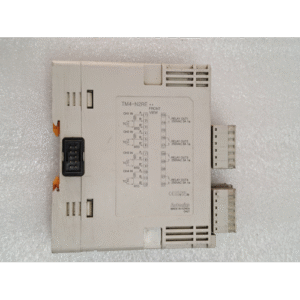

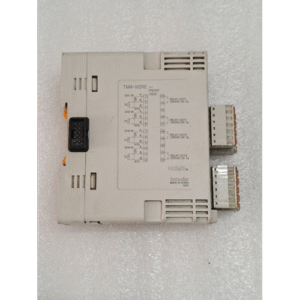

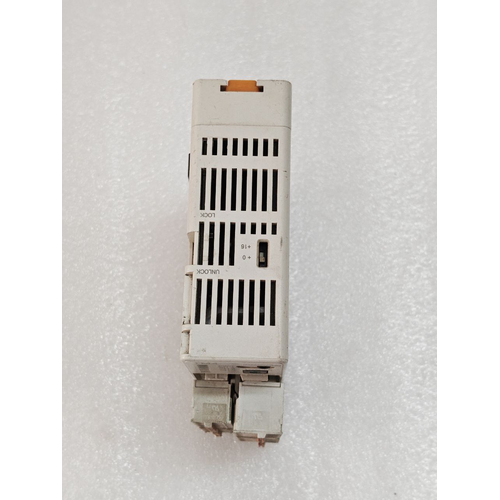

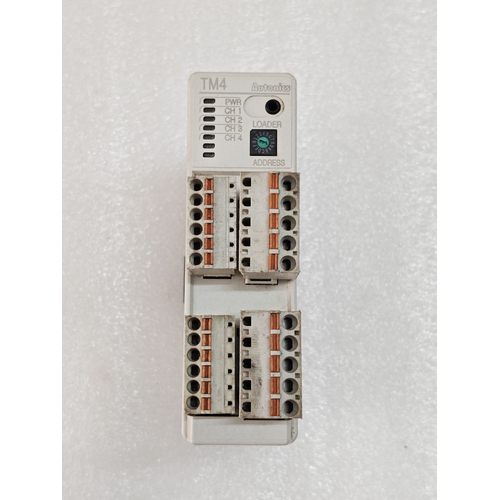

Autonics TM4-N2RE Modular Multi-Channel PID Temp Controller QA27 16:37

The TM series modular type PID temperature controllers are capable of controlling up to 4 channels (TM4) simultaneously. Using the expansion connectors, The TM series can be easily expanded to control up to 124 (TM4) without additional wiring for power or communication. The temperature controllers feature high-speed sampling cycles (TM4: 100 ms ), RS485 communication support, and simultaneous heating and cooling control. Parameter configuration and status monitoring via PC is easy with the included DAQMaster software.

• Multi-channel (4-channel : TM4) input and output control
• Module connection and expansion with expansion connectors
  – Communication between modules
  – No additional power supply wiring
  – Expandable up to 31 units (124-channels)
• High-speed sampling cycle (4-channel : 100ms)
• Simultaneous heating and cooling control function
• Parameter configuration via PC (USB and RS485 communication)
  – DAQMaster software included (comprehensive device management software)
  – Parameter configuration without power supply or wiring using SCM-US
  Communication converter sold separately : SCM-WF48 (Wi-Fi to RS485  USB converter), SCM-US48I (USB to RS485 converter), SCM-38I (RS232C to RS485 converter), SCM-US (USB to serial converter)
• Easy wiring and maintenance with various connectors : sensor input connector, Control output connector, Power/communication connector
• RS485 Communication
  – Protocol : Modbus RTU or ASCII
  – Communication speed : Max. 115,200bps
• Screwless push-in type connection for simple and easy connection
• Isolated input channels (dielectric strength : 1000VAC)
• Heater disconnect alarm function (CT input)
  Current transformer (CT) sold separately : CSTC-E80LN, CSTC-E200LN, CSTS-E80PP

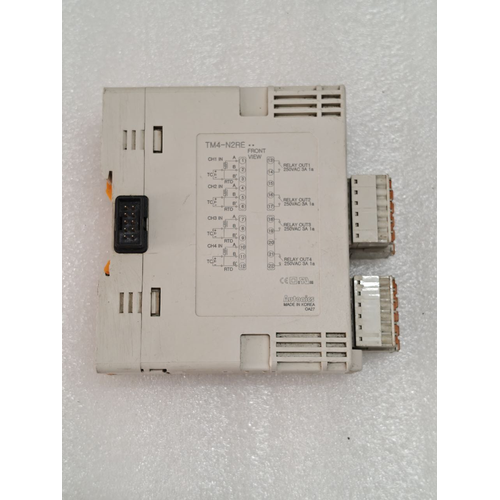

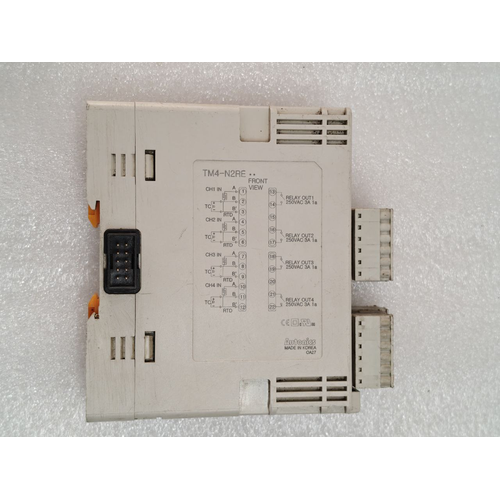

The Autonics TM4-N2RE is a advanced, modular 1/16 DIN PID temperature controller designed for sophisticated multi-zone heating or cooling systems. With its compact form factor and powerful 4-channel control capability from a single unit, it simplifies complex wiring, saves panel space, and delivers exceptional accuracy for demanding processes in manufacturing, packaging, plastic molding, and more.

Key Features & Benefits

• 4-Channel Modular Control: Independently monitor and control up to four different temperature zones with one compact controller, reducing hardware costs and panel space by up to 75% compared to four individual units.

• Dual 4-Digit Display: Simultaneously view the Process Value (PV) and Set Value (SV) for all channels on a clear, high-brightness LED display, ensuring at-a-glance operational awareness.

• Universal Input & Relay/Voltage Output: Offers flexible compatibility with a wide range of temperature sensors (Thermocouple Types K/J) and supports both relay and voltage output types for driving various loads like SSRs, contactors, and valves.

• Advanced PID Control with Auto-Tuning: Ensures stable and precise temperature maintenance by automatically calculating the optimal Proportional, Integral, and Derivative values for each channel, minimizing overshoot and improving product quality.

• DIN-Rail Mountable & Compact Design: The 1/16 DIN size allows for easy installation on standard DIN rails, making it ideal for control cabinets where space is at a premium.

• Multi-Function I/O & Communication: Features alarm outputs, a transmission output, and optional communication modules (RS485/RS232) for seamless integration into PLCs, SCADA systems, and factory networks.

 Detailed Technical Specifications (Model: TM4-N2RE)

 Why Choose the Autonics TM4-N2RE?

Space and Cost Efficiency: Eliminate the need for multiple single-loop controllers, drastically reducing wiring complexity, installation time, and overall system cost.

Unmatched Flexibility: Its universal input and configurable output make it a versatile drop-in solution for upgrading existing systems or designing new ones, future-proofing your investment.

Autonics Reliability: Backed by Autonics’ reputation for manufacturing durable and high-performance industrial automation components, ensuring long-term stability and minimal downtime.
