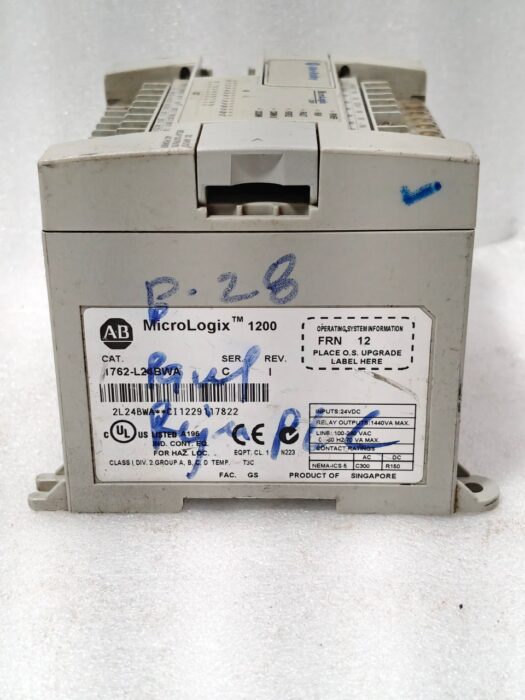

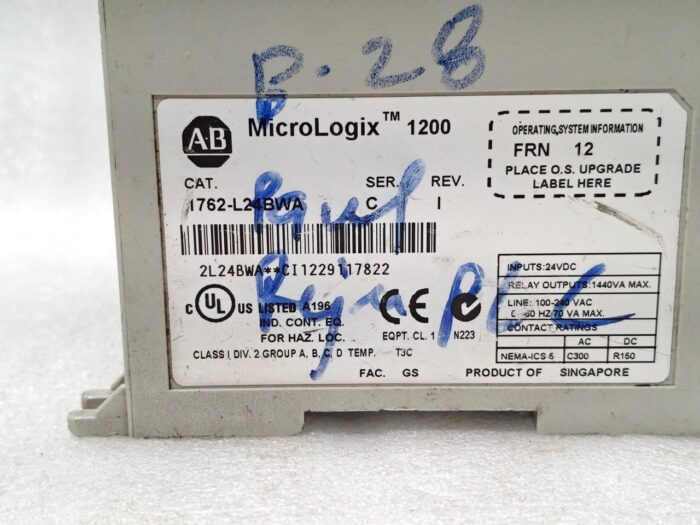

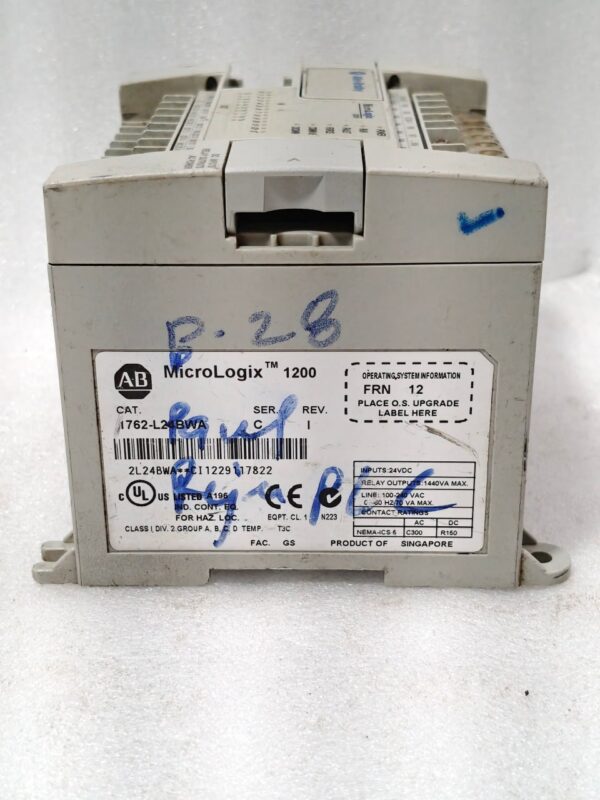

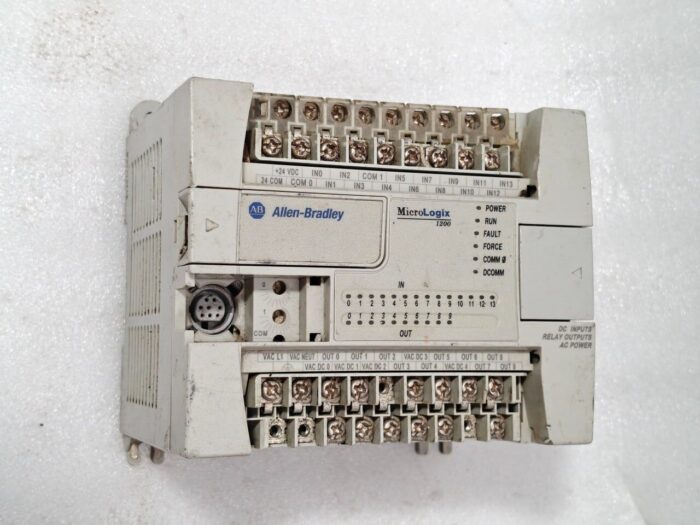

ALLEN BRADLEY MICROLOGIX 1200 1762 L24BWA SER CÂ REV-I POINT CONTRLOLLER 50-60 HZ
- ALLEN BRADLEY
- MICROLOGIX 1200
- MODEL: 1762-L24BWA
- SER: C
- REV: I
- 24 POINT CONTROLLER
- FRN: 12
- INPUTS: 24VDC
- RELAY OUTPUTS: 1440VA MAX
- LINE: 100-240VAC, 50-60HZ, 70VA MAX
- CONTACT RATINGS: NEMA-IEC-5
- C300AC, R150DC
- COUNTRY: SINGAPORE

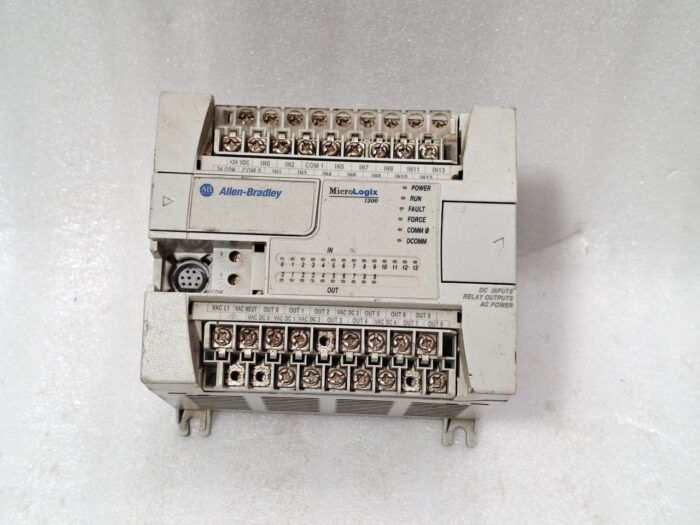

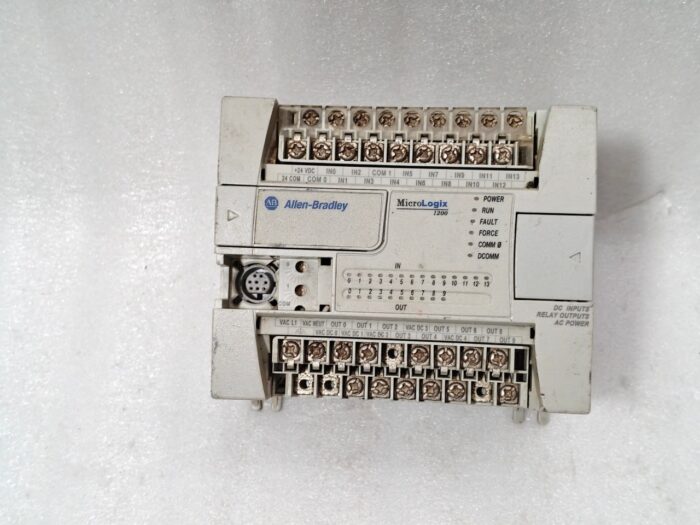

The Allen-Bradley MicroLogix 1200 is a compact, fixed I/O programmable logic controller (PLC) from the MicroLogix 1000 family. It was designed for simple, stand-alone automation applications requiring a limited number of inputs and outputs. The “1762-L24BWA” model is a 24V DC input / 24V DC output (sourcing) unit with a built-in power supply.
It is a mature product, and while still supported by Rockwell Automation, it has been largely superseded by newer platforms like the Micro800 series.
Detailed Model Number Breakdown: 1762-L24BWA Ser C Rev I
-
1762:Â The family designation for MicroLogix 1200 controllers and their associated I/O expansion modules.
-
L: Indicates it is a Logic Controller (the CPU).
-
24:Â Specifies the total number of built-in I/O points.
-
20 Discrete Inputs (24V DC)
-
4 Discrete Outputs (24V DC Sourcing)
-
-
B: Indicates the controller has a Communication Port (RS-232 DF1 protocol) for programming and HMI connectivity.
-
W: Signifies the unit has a real-time clock (RTC). This allows the controller to time-stamp events and run programs based on the time of day.
-
A: Denotes the Input/Output type and power supply.
-
A in this context means: 24V DC Inputs and 24V DC Sourcing Outputs, with a 85-265V AC or 85-305V DC built-in power supply.
-
-
Ser C: The Series identifier. Later series (like C) often included minor hardware improvements and bug fixes over earlier series (A, B).
-
Rev I: The Revision level. This indicates a specific engineering revision of the hardware.
Key Features and Specifications
| Feature | Specification |
|---|---|
| Controller Type | Fixed I/O Micro PLC |
| I/O Count | 20 Inputs / 4 Outputs (24V DC) |
| Output Type | Sourcing (PNP) |
| Power Supply | 85-265V AC, 50/60 Hz OR 85-305V DC (as indicated by your “50-60 Hz” tag) |
| Communication Port | One (1) RS-232 port (DF1 protocol, CH0) for programming (RSLogix 500) and connecting devices like PanelView Standard HMIs. |
| Real-Time Clock | Yes (indicated by the W) |
| Program Memory | 6 Kwords |
| Data Memory | 2 Kwords |
| Ladder Logic | Up to 1,000 elements |
| High-Speed Counter | One (1) 20 kHz HSC with dedicated inputs |
| Pulse Output | Not available on this model |
| Expansion Capability | Can be expanded with up to two (2) 1762 I/O expansion modules (e.g., adding more digital or analog I/O). |
| Programming Software | RSLogix 500 (Standard or Micro starter edition). Note: This software is now sold as a legacy product. |
SEO Product Description & Common Applications
The Allen-Bradley MicroLogix 1200 1762-L24BWA is a versatile industrial automation controller ideal for small-scale control systems. Its compact design and fixed I/O configuration make it a cost-effective solution for basic machine control, replacement of relays, and process automation tasks.
Typical Applications include:
-
Simple Machine Control:Â Conveyor control, packaging machines, small assembly stations.
-
Material Handling:Â Control of pick-and-place units, sorting systems.
-
Commercial Applications:Â Control of HVAC systems, water treatment systems, and pumping stations.
-
Replacement of Relay Panels:Â Modernizing old relay-based logic with a programmable controller for greater flexibility and diagnostics.
