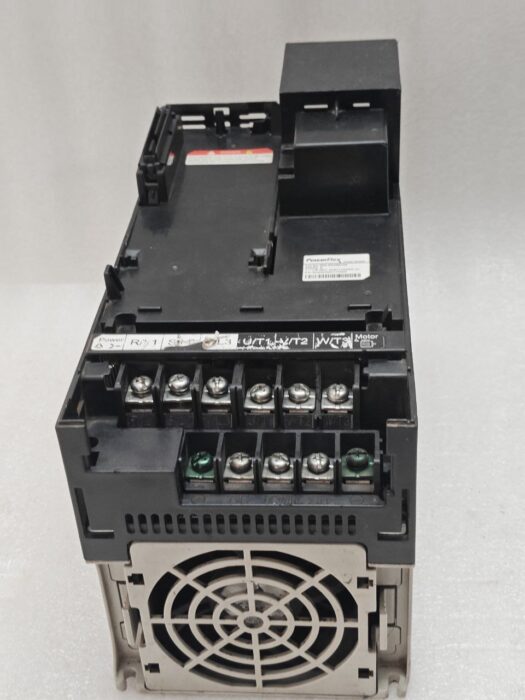

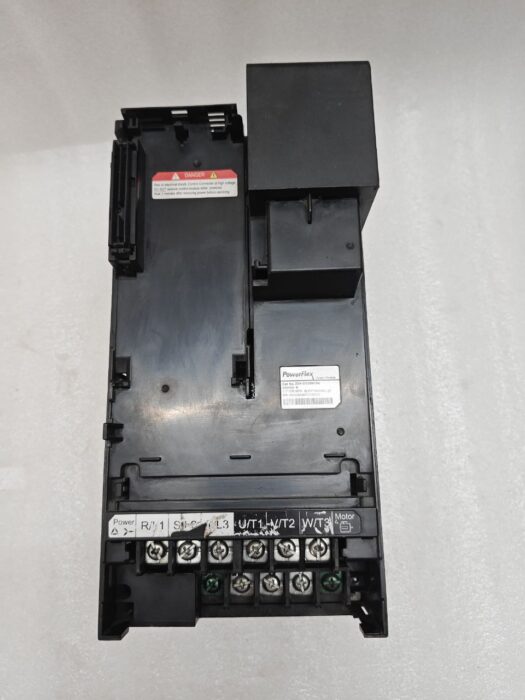

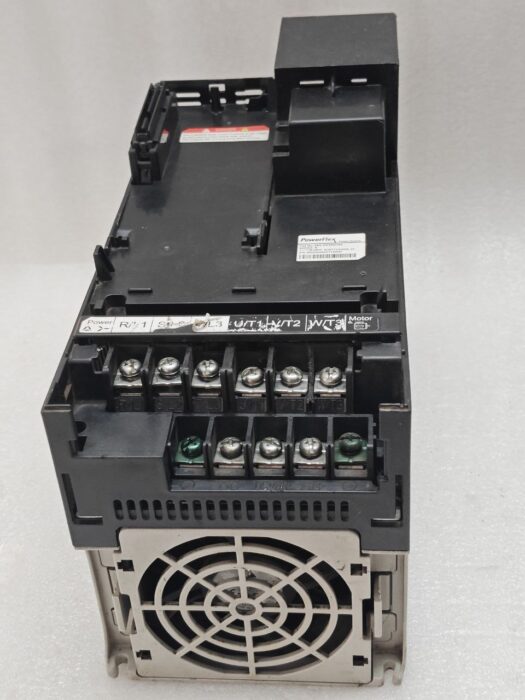

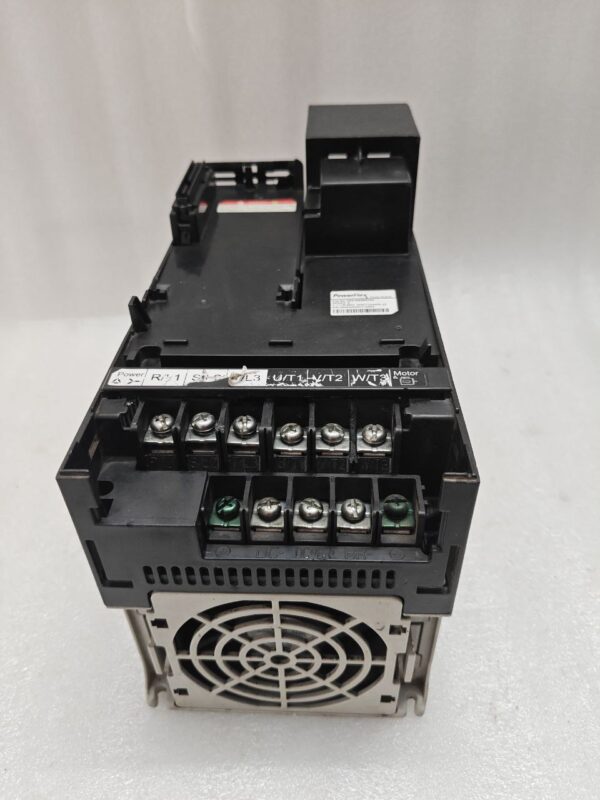

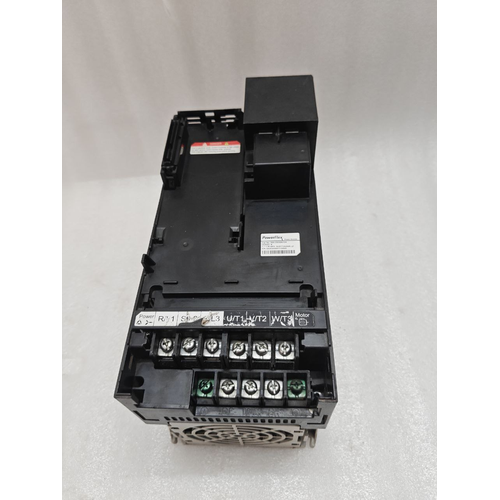

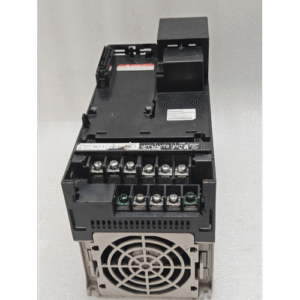

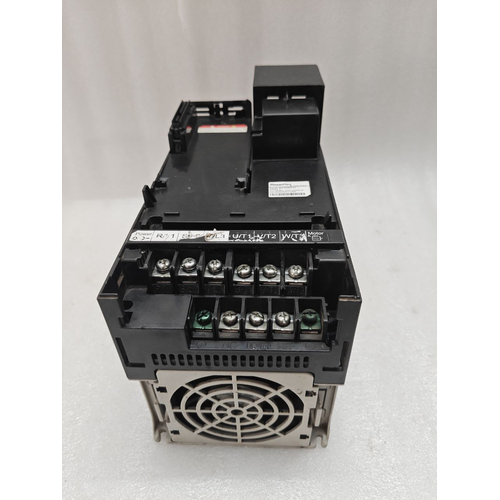

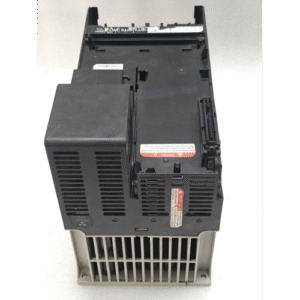

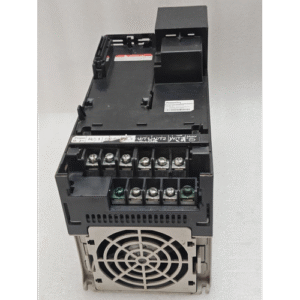

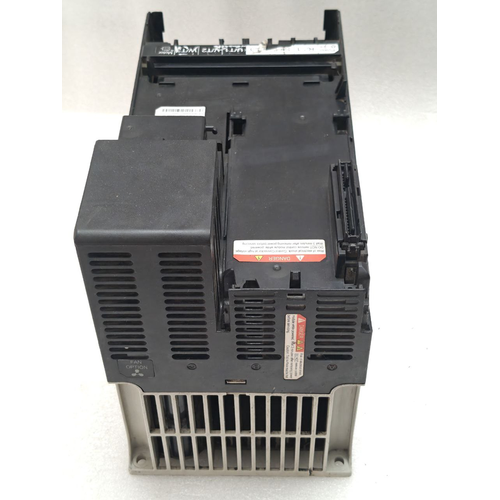

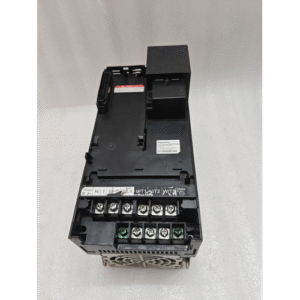

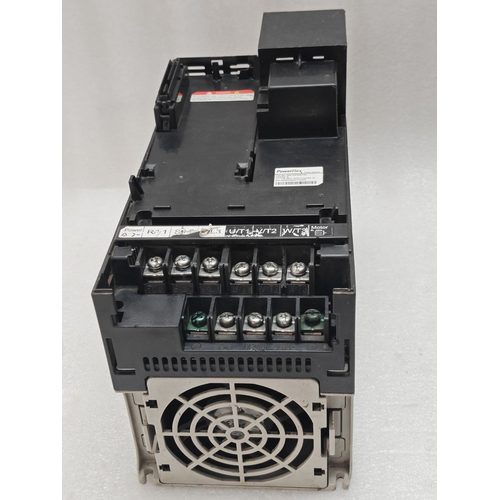

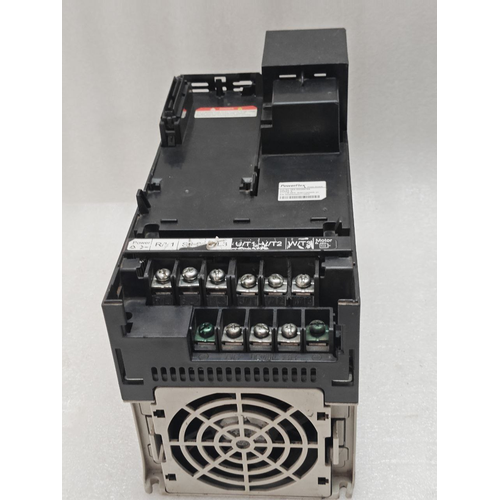

ALLEN-BRADLEY CAT 25A-D030N104 SERIES-B Power Flex 523 AC Drive 15HP 17:29

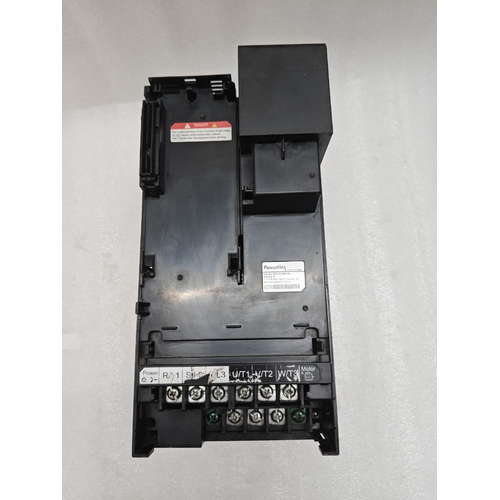

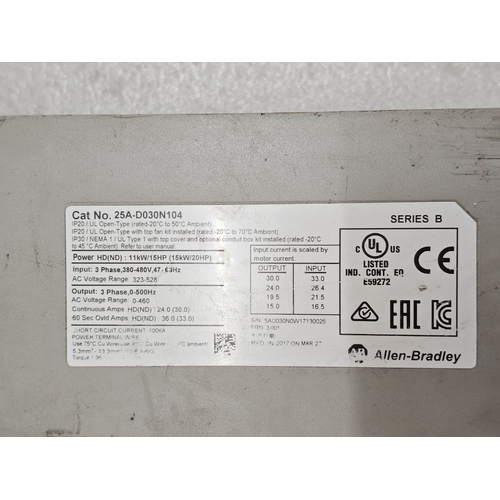

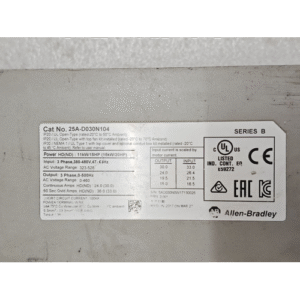

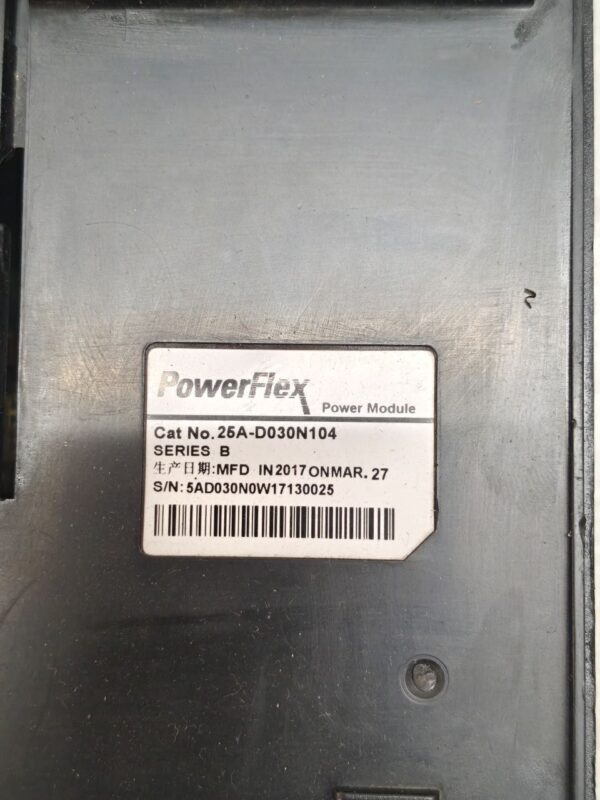

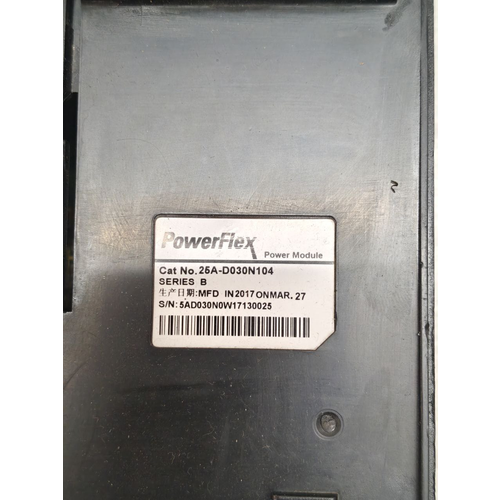

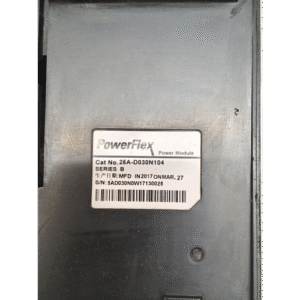

• ALLEN BRADLEY
• CAT 25A
• CAT NO: 25A-D030N104
• SERIES B

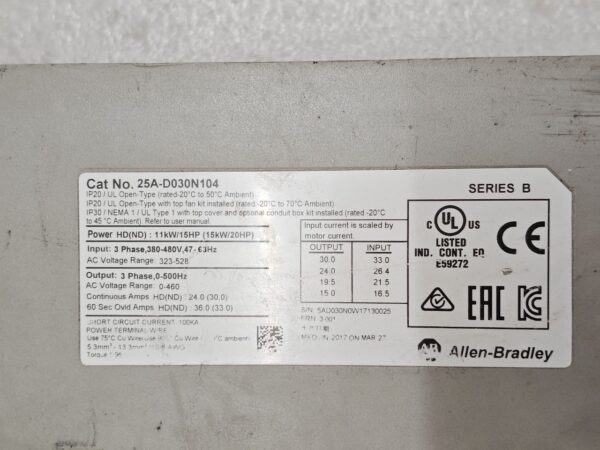

• IP20/UL OPEN-TYPE (RATED-20C TO 50C AMBIENT)
• IP20/UL OPEN TYPE WITH TOP FAN KIT, INSTALLED (RATED -20C TO 70C AMBIENT)
• IP30/NEMA 1/UL TYPE 1 WITH TOP COVER AND OPTIONAL CONDUIT BOX KIT INSTALLED (RATED -20C TO 45C AMBIENT
• POWER HD (ND): 11KW/15HP (15KM/20HP)
• INPUT: 3PHASE, 380-480V, 47-63HZ
• AC VOLTAGE RANGE: 323-528
• OUTPUT: 3PHASE, 0-500HZ
• AC VOLTAGE RANGE: 0 – 460
• CONTINUOUS AMPS HD(ND): 24.0(30.0)
• 60SEC OVLD AMPS HD(ND): 36.0(33.0)
• SHORT CIRCUIT CURRENT: 100KA
• POWER TERMINAL WIRE: USE 75C CU WIRE
•                                               5.3mm2-13.3mm2(0.6 AWG)
• MANUFACTURING DATE: 27/03/2017
• S/N: 5AD030N0W17130025
• FRN: 3.00
• E59272
• MADE IN CHINA

The Allen-Bradley PowerFlex 523 is a compact, versatile, and user-friendly variable frequency drive (VFD) designed for simple, motor-controlled applications. The model 25A-D030N104 Series B is a robust 15 HP unit, engineered to provide reliable speed control for AC motors, resulting in improved efficiency, process control, and energy savings.

Key Features & Benefits

• Compact Design: Saves valuable panel space, making it ideal for both new installations and retrofits.

• Easy to Use: Features an intuitive built-in keypad with a dual-line, 4-character display and a simple programming menu for quick startup and configuration.

• Robust Performance: Built to withstand demanding industrial environments with a wide operating temperature range and immunity to input voltage transients.

• Embedded Communication: Includes a built-in RS-485 (DSI) communication port, allowing for easy network connectivity to Allen-Bradley PLCs (like CompactLogix and ControlLogix) and other devices using various protocols.

• Flexible Control: Supports multiple control methods including Sensorless Vector Control for high starting torque and improved low-speed performance, and V/Hz (Volts per Hertz) control for simple, general-purpose applications.

• Dynamic Braking: Integrated DC bus braking helps bring motors to a stop more quickly, improving control and safety.

• Global Compliance: Certified for use in North America (cULus), Europe (CE), and other international markets, ensuring compliance with global standards.

Technical Specifications
