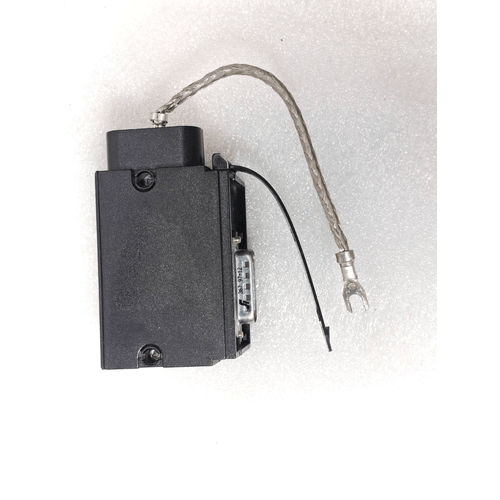

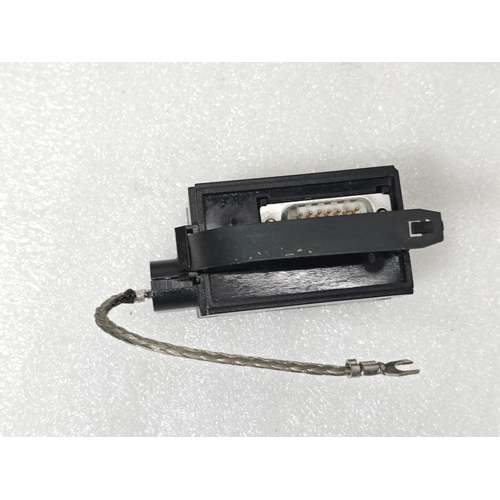

AEG SCHNEIDER TELEMECANIQUE TSXLES71 082582 TRANS MOD CHAIN JUNCTION FRANCE 17:08

The AEG Schneider Electric Telemecanique TSXLES71 082582 is an 8-channel, 24V DC transistor output module, designed as a junction block for the Modicon TSX Micro and Momentum PLC platforms. This “Trans Mod Chain” module acts as a reliable interface, converting the PLC’s low-power control signals into powerful switching commands to activate solenoids, contactors, relays, and other industrial DC loads with speed and precision.

Its robust design and high switching frequency make it an ideal choice for automated machinery, conveyor systems, and packaging equipment requiring fast, solid-state control.

H2: Key Features & Technical Specifications

• Manufacturer Brands: AEG / Schneider Electric / Telemecanique

• Product Line: Modicon / TSX Micro / Momentum

• Model: TSX LES 71 (082582 is the specific catalog number/part number)

• Type: 8-Channel, Sourcing (PNP) Transistor Output Module

• Output Voltage: 24V DC

• Current per Channel: 0.5 A

• Total Current per Module: 2.0 A (maximum)

• Function: Junction block for modular I/O expansion.

• Connection: Uses a removable screw terminal block for easy wiring and maintenance.

• Compatibility: Designed for use with Modicon TSX Micro and Momentum programmable logic controllers.

• Origin: Manufactured in France, ensuring high quality and reliability.

H2: Primary Applications

This output module is essential for controlling a wide range of industrial automation devices, including:

• DC Solenoids and Valves

• Contactors and Relays

• Indicator Lamps (LEDs)

• Small DC Motors

• Automated Assembly & Packaging Systems

• Material Handling & Conveyor Control

H2: Benefits of Using the TSXLES71 082582

• High-Speed Switching: Transistor outputs enable much faster switching cycles (On/Off) than mechanical relays, ideal for high-speed applications.

• Long Service Life: With no moving parts, transistors offer a vastly longer operational life compared to relay outputs, reducing maintenance and downtime.

• Compact & Modular: Its modular design allows for flexible and space-efficient system configuration within the TSX/Momentum rack.

• High Reliability: Built to the renowned Telemecanique and Schneider Electric standards for performance in demanding industrial environments.

• Easy Integration: Simple wiring via the terminal block and seamless integration with the Modicon PLC ecosystem.
