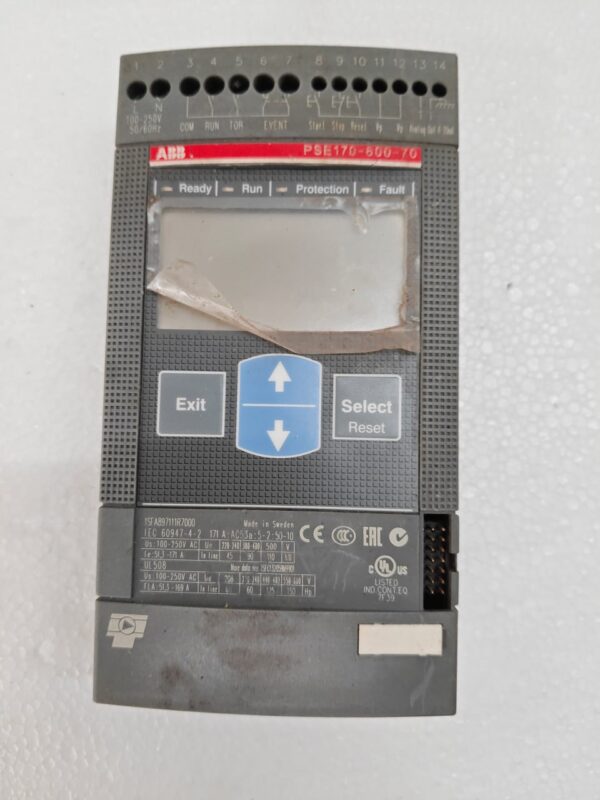

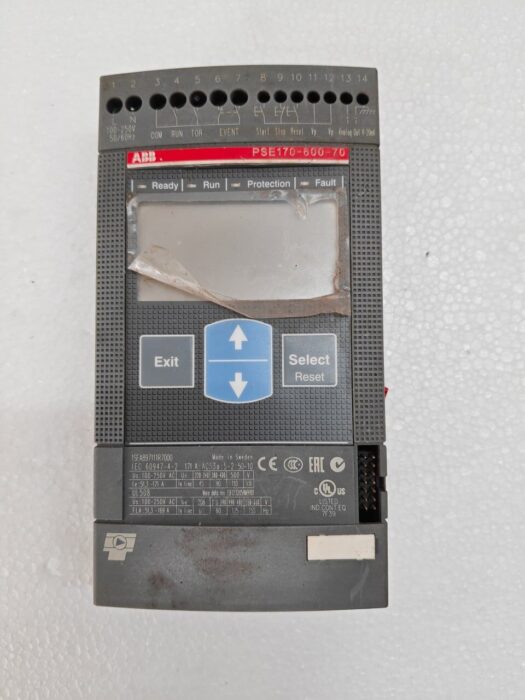

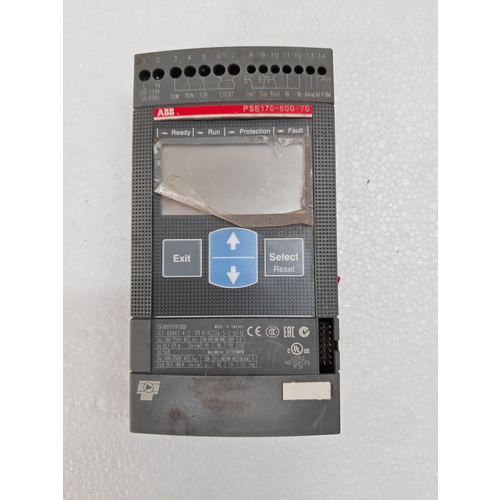

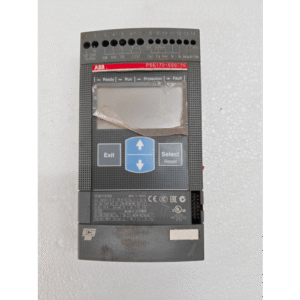

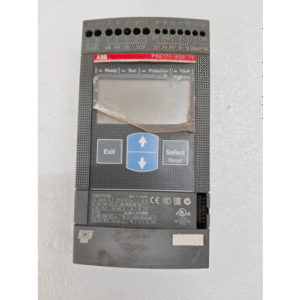

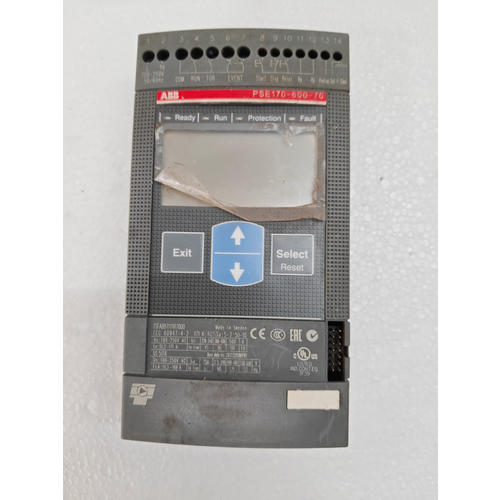

ABB PSE170-600-70 DISPLAY SoftStarter PARTS & REPAIR MOTOR 12:41

Specifications

• Amperage Rating170 A
• Coil Voltage100 to 250 VAC
• Connection TypeIn-Line Screw
• Dimensions219.5 mm L x 130 mm W x 295 mm H
• Enclosure TypeNEMA 1/4X/12/IP00/IP20/IP66/Open
• Frequency Rating50/60 Hz
• Full Load Current169 A
• Motor Power45/90/110 kW
• Operating Temperature-13 to 140 deg F
• Overload RelayClass 10
• Phase3
• SeriesPSE
• Timing1 to 30 s Start, 0 to 30 s Stop
• TypeEfficient Range
• Voltage Rating208 to 600 VAC

The ABB PSE170-600-70 is a robust and advanced soft starter designed for demanding industrial applications. This specific model is rated for 600 Amps at a voltage range of 200-690V AC, making it suitable for controlling high-power three-phase motors. The integrated PSE170 Display and Control Unit provides a user-friendly interface for parameter setting, real-time monitoring, and diagnostics.

If your motor-driven machinery (such as pumps, compressors, fans, or conveyors) is experiencing harsh starts, mechanical stress, or electrical faults, a faulty soft starter is often the cause. Sourcing a reliable replacement or repair for this critical component is essential for minimizing downtime.

Key Features & Benefits:

• Smooth Motor Starting: Eliminates damaging current inrush, reducing stress on the motor, shaft, and driven equipment.

• Controlled Stopping: Provides soft stop functionality to prevent water hammer in pump applications or material spillage on conveyors.

• Comprehensive Protection: Built-in features protect against overload, phase loss, current imbalance, and excessive start attempts.

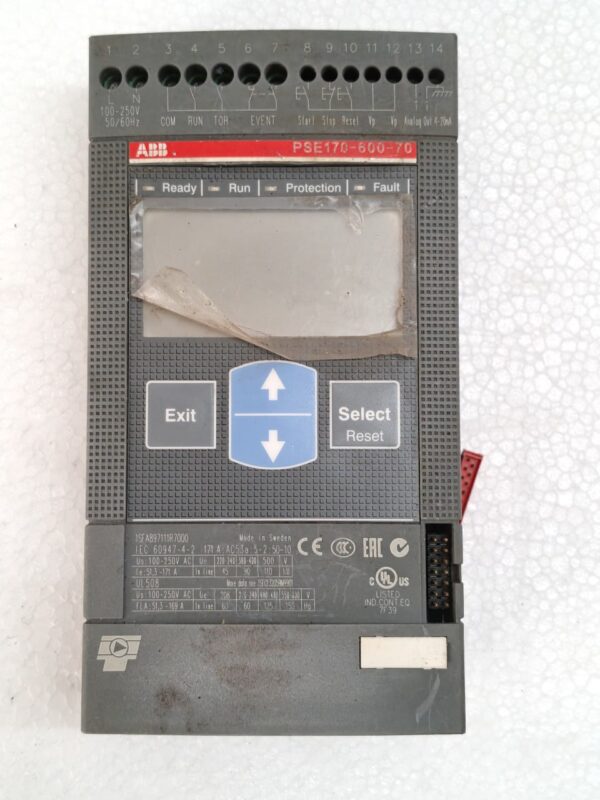

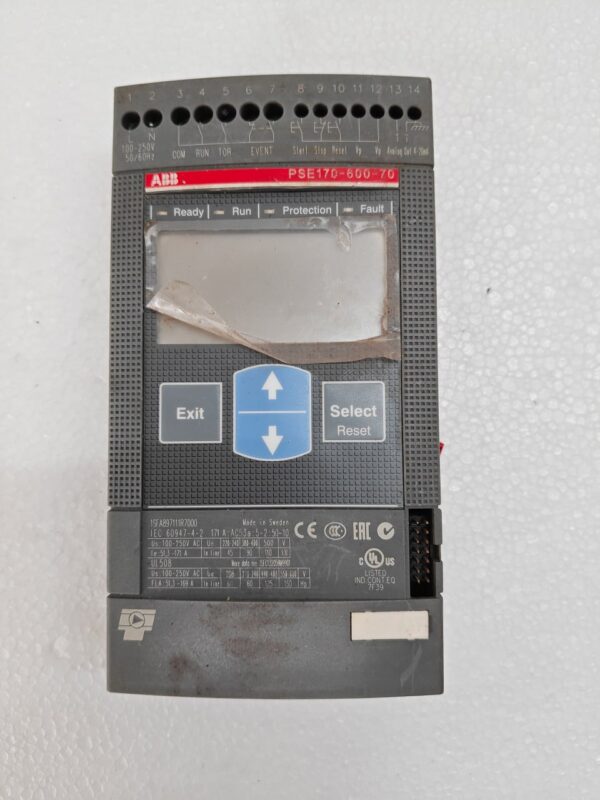

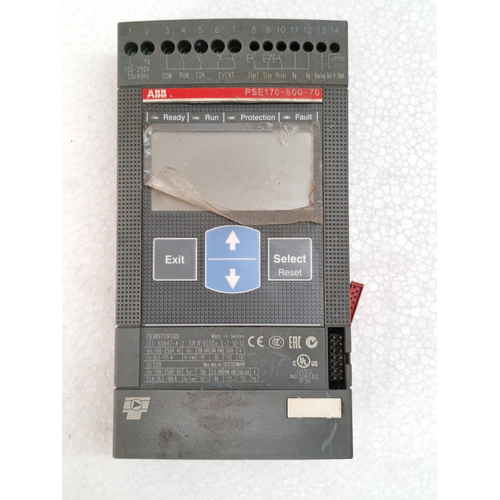

• User-Friendly Interface: The PSE170 display allows for easy configuration and provides clear status indicators and fault messages for quick troubleshooting.

• Robust Design: Engineered for reliable operation in harsh industrial environments.

This Listing is Ideal For:

• Replacement: Directly replace a failed or aging ABB PSE170-600-70 unit in your system.

• Spare Part: Keeping a critical spare on hand to ensure rapid recovery from unexpected failures.

• Repair Service: Sending in your faulty unit for expert diagnosis and professional repair.

Common Symptoms of a Failing PSE170 Soft Starter:

• Motor fails to start or trips the main breaker immediately.

• Overload faults without an actual motor overload.

• Inconsistent or jerky motor starting.

• No display or unresponsive controls on the PSE170 unit.

• Visible damage like burnt terminals, bulging capacitors, or blown fuses.

Technical Specifications
