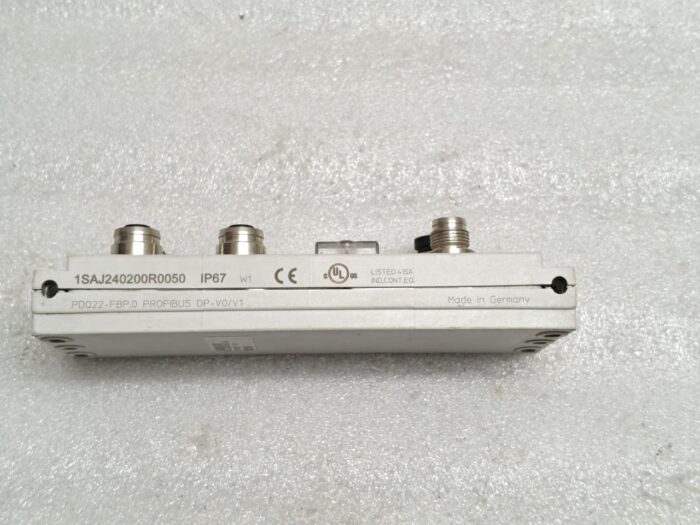

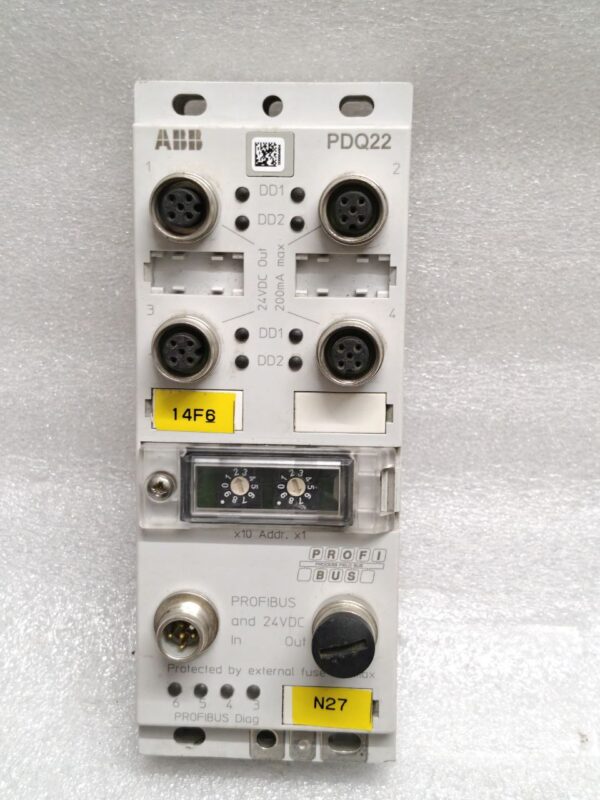

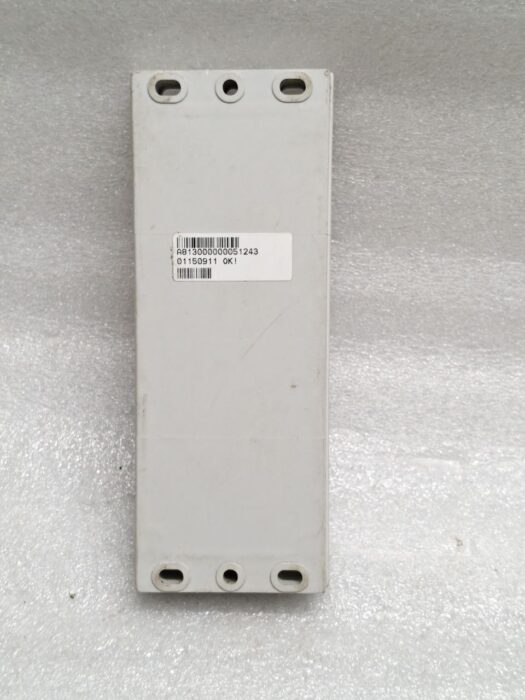

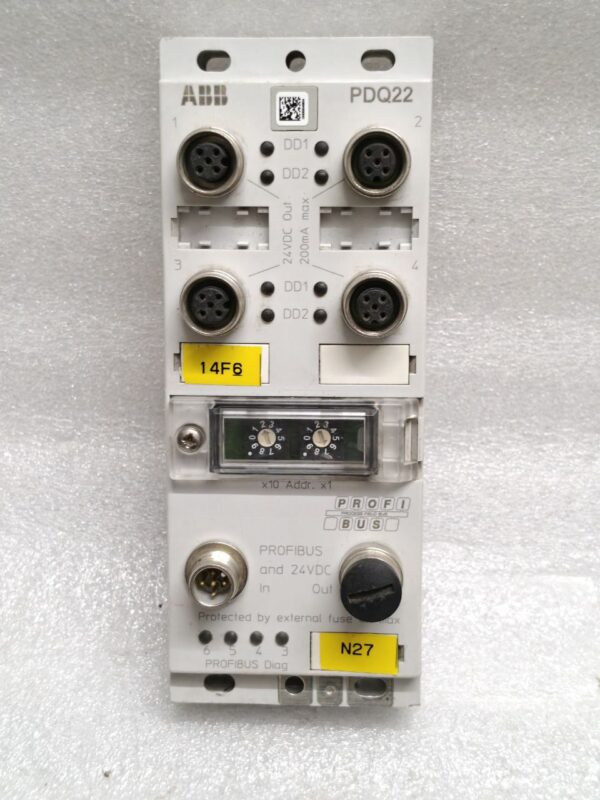

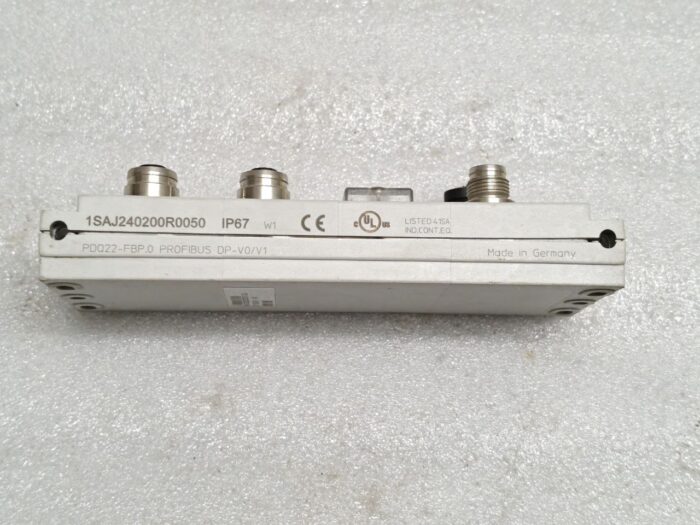

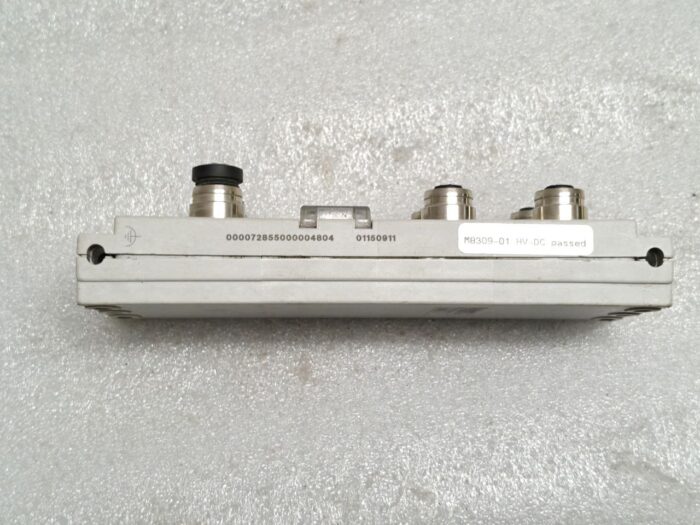

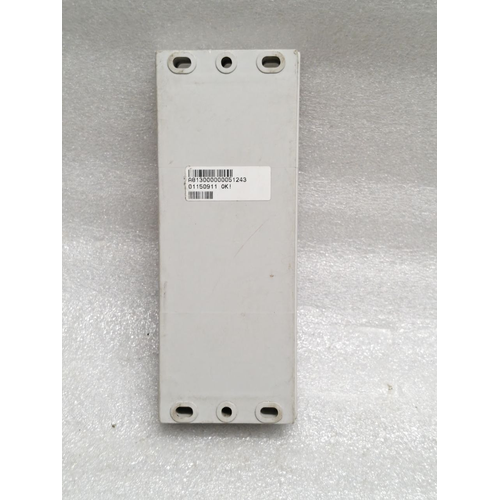

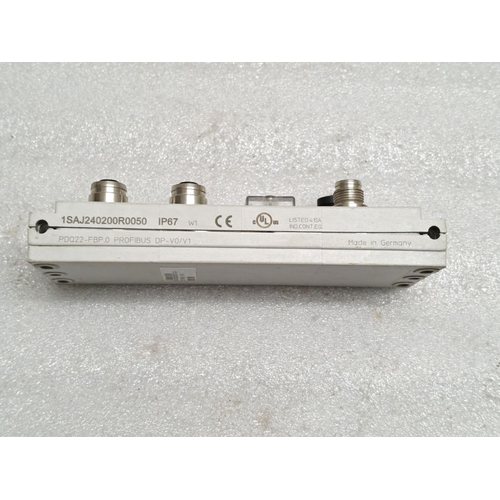

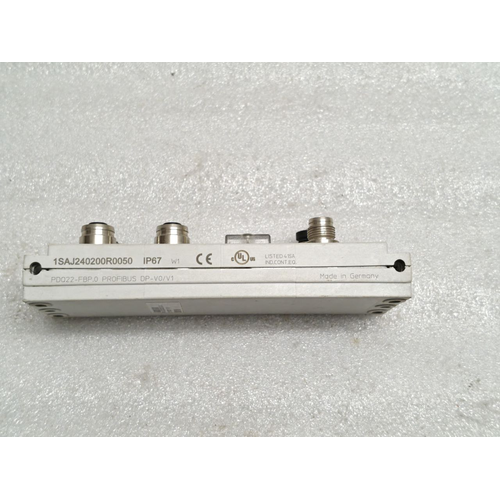

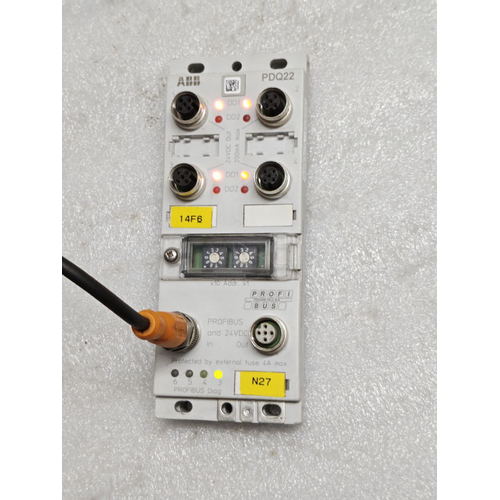

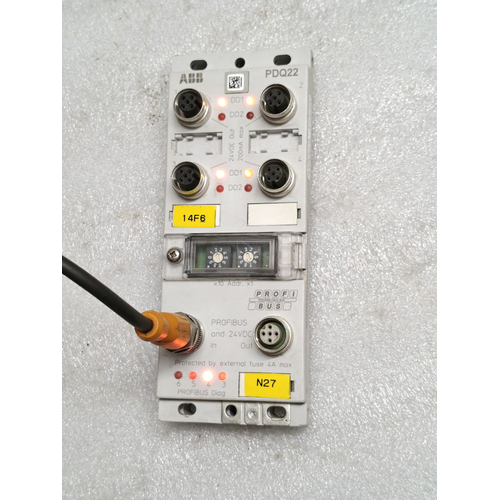

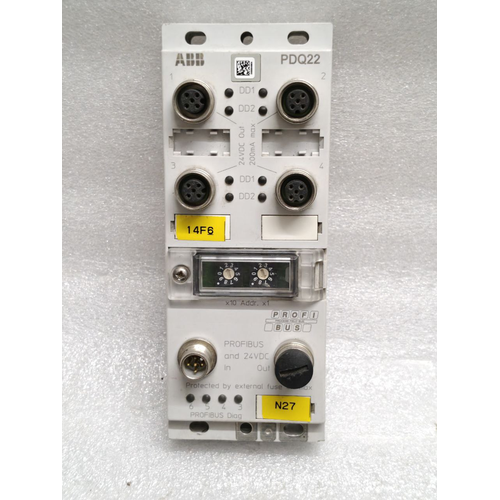

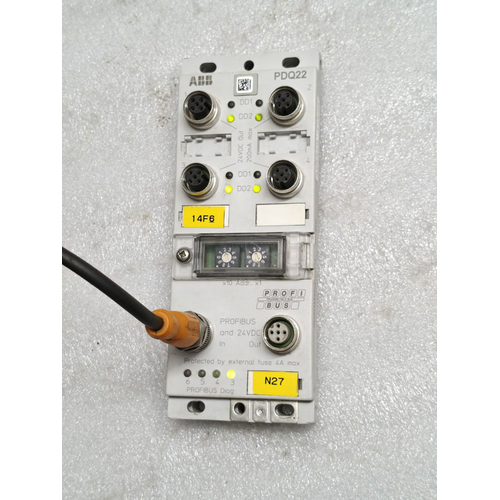

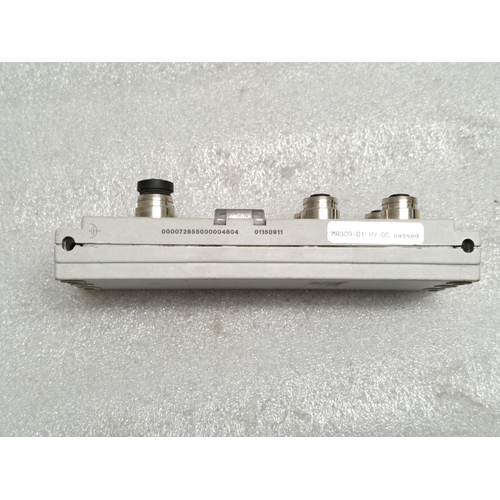

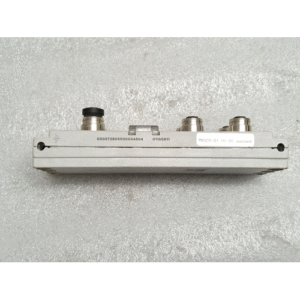

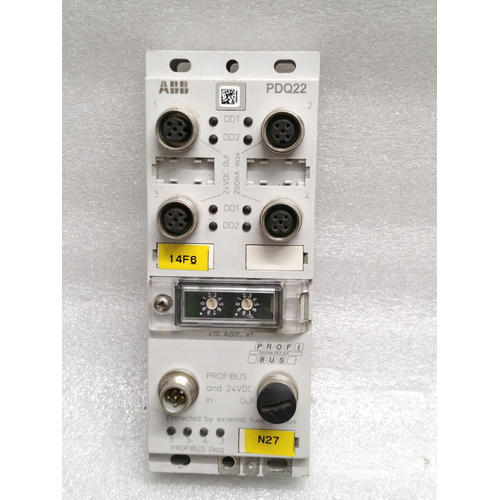

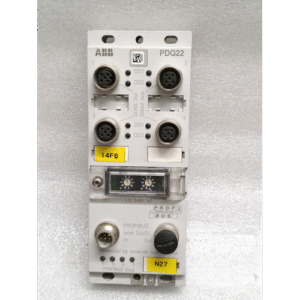

ABB PROFIBUS ABB PDQ22-FBP.0 PROFIBUS DP-V0/V1 FieldBus Plug Quad 1SAJ240200R005
The ABB PDQ22-FBP.0 is a highly versatile and robust FieldBus Plug (FBP) module designed to seamlessly integrate ABB’s low-voltage circuit breakers into a PROFIBUS DP network. It acts as a communication gateway, enabling real-time monitoring, control, and diagnostics of the breaker from a central control system.
This specific model is a “Quad” version, meaning it can interface with and manage up to four circuit breakers simultaneously from a single network node, saving space, wiring, and cost.
Key Features
-
PROFIBUS DP Protocol:Â Compliant with PROFIBUS DP-V0 for cyclic data exchange (e.g., status, measurements) and DP-V1 for acyclic services (e.g., parameterization, diagnostics).
-
Quad Interface: A single module can connect to four ABB circuit breakers (e.g., from the Emax 2, Tmax XT series) equipped with the appropriate communication kits (e.g., Ekip Com).
-
Compact Design:Â Mounts directly onto the circuit breaker or on a DIN rail, saving panel space.
-
Comprehensive Data Exchange:
-
Reads:Â Breaker status (ON/OFF/TRIPPED), electrical measurements (Current, Voltage, Power, Energy, Frequency), alarm and trip causes, maintenance indicators.
-
Writes:Â Commands for Open/Close, Reset, parameter setting changes (if supported by the breaker).
-
-

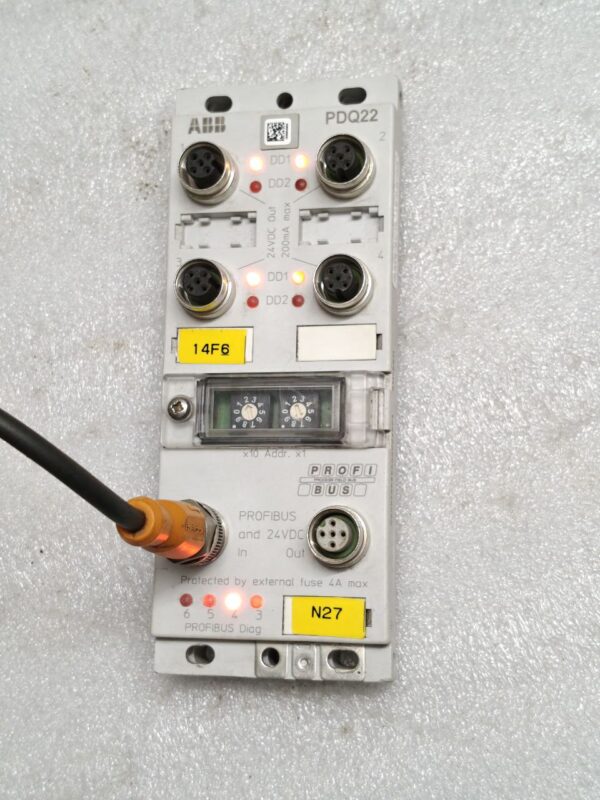

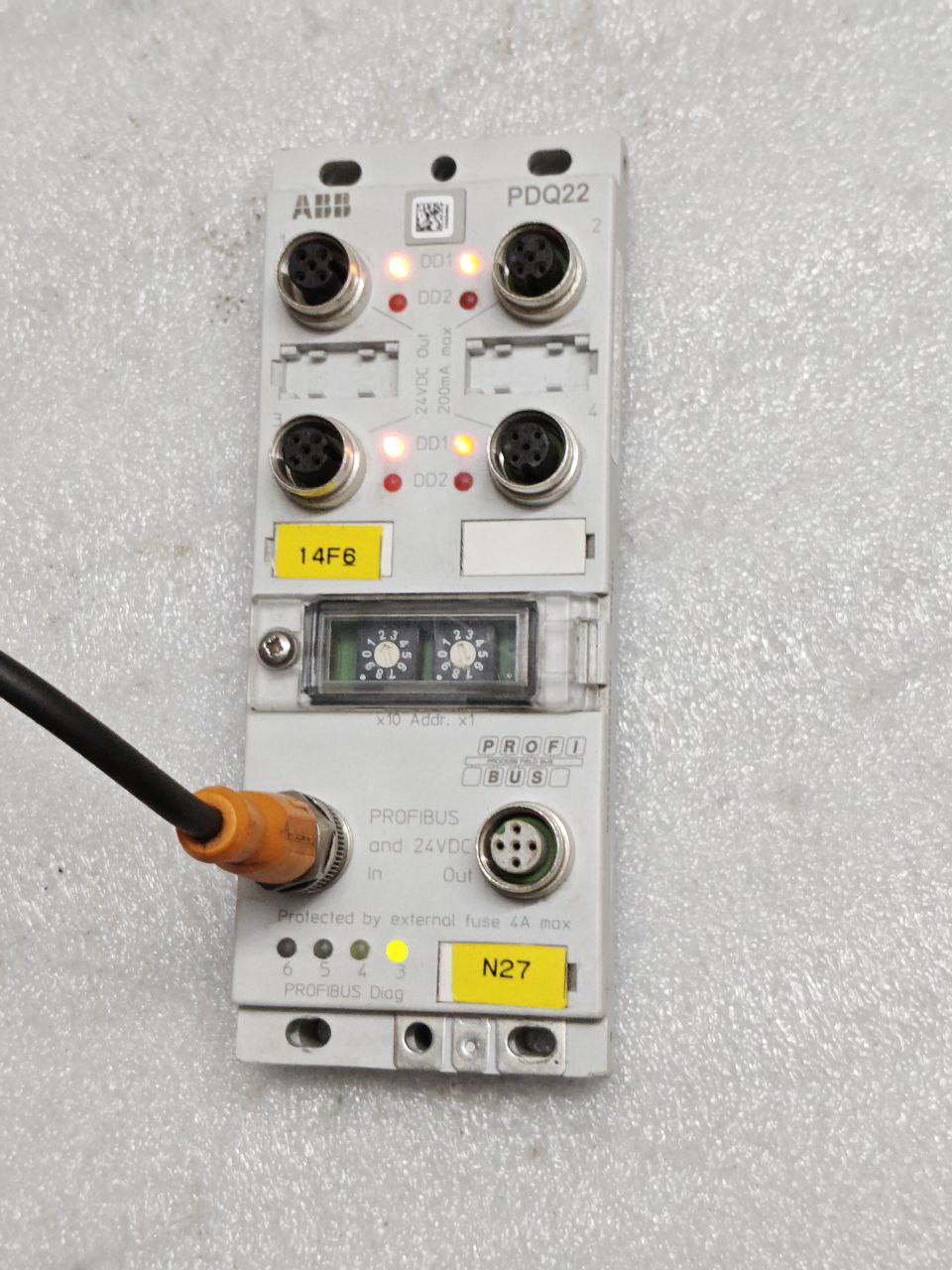

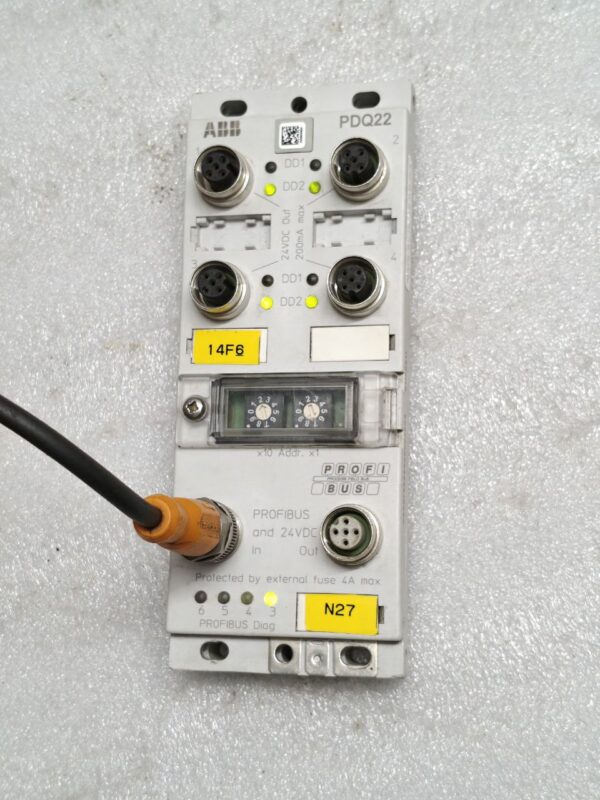

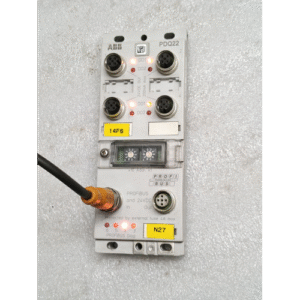

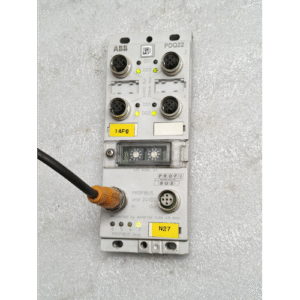

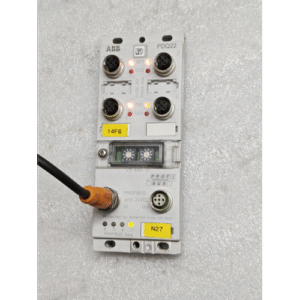

LED Indicators:Â Provides clear visual status for power, network activity, and communication with each connected breaker.
-
Plug-and-Play: Simplified installation and configuration with pre-defined GSD (General Station Description) files for easy integration into any PROFIBUS master system.
-
Robust Construction:Â Designed for the harsh electrical environment of an industrial switchboard.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Code | 1SAJ240200R005 |
| Article Number | PDQ22-FBP.0 |
| Fieldbus Protocol | PROFIBUS DP according to EN 50170 |
| Supported Profiles | DP-V0 and DP-V1 |
| Baud Rate | Auto-sensing, from 9.6 kbit/s up to 12 Mbit/s |
| Number of Connected Devices | Up to 4 Circuit Breakers |
| Power Supply | Typically 24 V DC (via the connected bus terminal) |
| PROFIBUS Connector | Standard 9-pin D-Sub (subminiature) |
| Breaker Connection | Via RJ45 ports or dedicated ABB connectors (depending on breaker model) |
| GSD File | ABB0B21.GSD (or similar, must be downloaded from ABB for the specific configuration) |
| Compatibility | ABB Emax 2, Tmax XT, and other series with Ekip Com modules. |
| Mounting | DIN Rail (35mm) or direct mounting on breaker (with kit) |
Typical Applications
The PDQ22-FBP.0 is used in automation and energy management systems across various industries where centralized control and monitoring of power distribution are critical.
-
Industrial Automation Plants (Automotive, Food & Beverage, Chemical)
-
Manufacturing Facilities
-
Data Centers
-
Commercial and Institutional Buildings (Hospitals, Airports, Universities)
-
Water and Wastewater Treatment Plants
