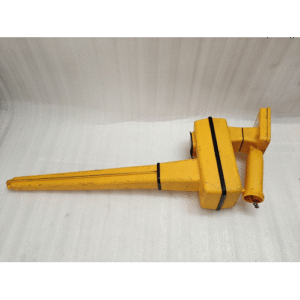

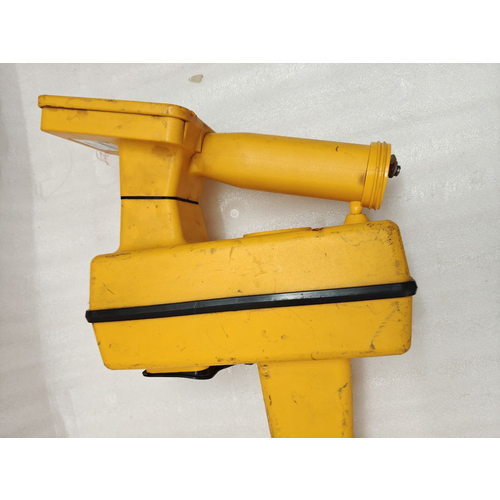

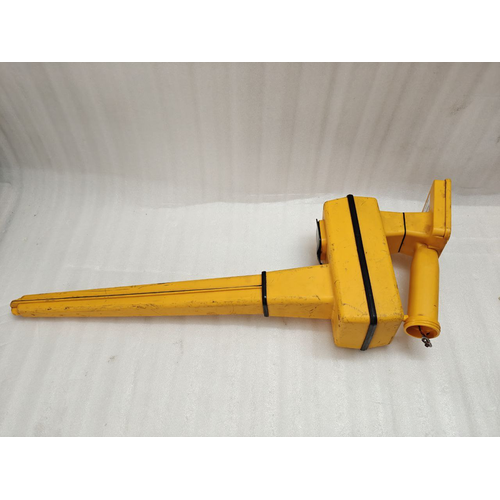

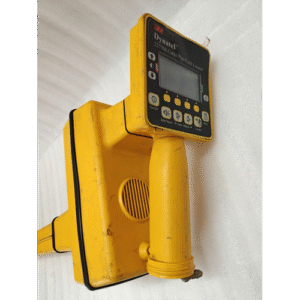

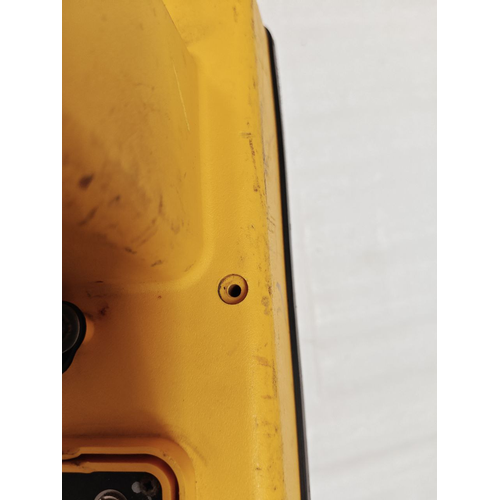

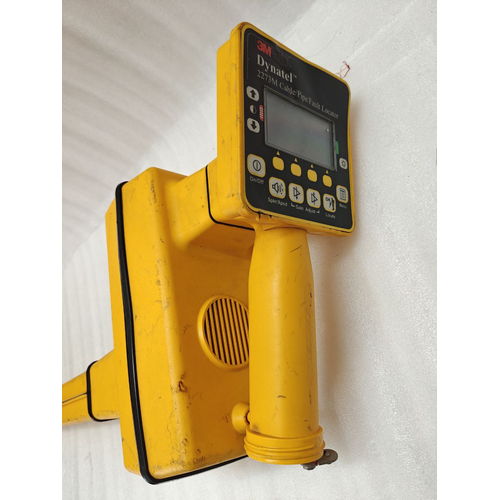

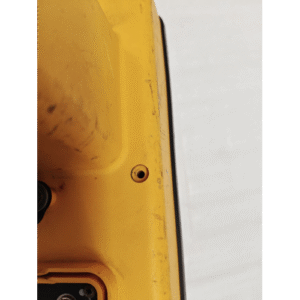

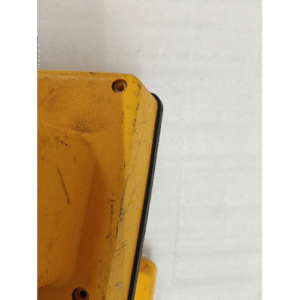

3M DYNATEL 2273M CABLE/PIPE/FAULT LOCATOR AND TRANSMITTER BUNDLE 18:32

• 3M DYNATEL
• MODEL: 2273M
• CABLE/PIPE/FAULT LOCATOR
• TRANSMITTER BUNDLE

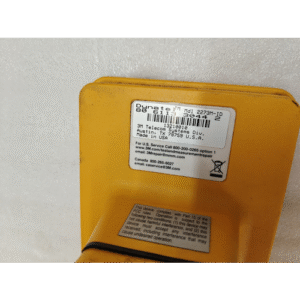

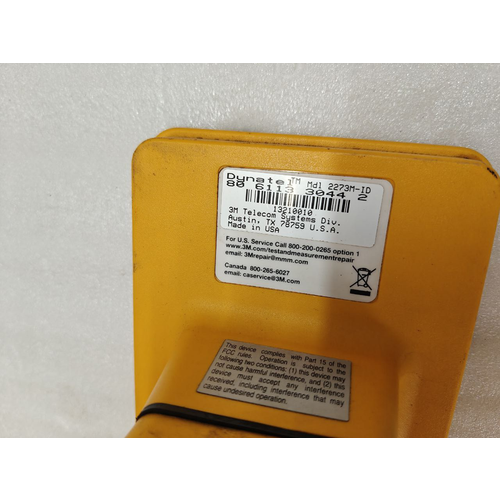

• 3M TELECOM SYSTEMS DIV.
• MADE IN USA

The 3M Dynatel 2273M Bundle is a premium, integrated solution designed for professionals who need to accurately locate, trace, and identify buried utilities and pinpoint faults. This robust system combines the powerful 2273M Locator and the versatile 5250 Transmitter to provide a complete toolset for avoiding costly dig-ins, improving jobsite safety, and enhancing project efficiency.

Engineered for durability and ease of use, it is the go-to choice for utility contractors, municipal workers, and construction crews in demanding field environments.

Key Features & Benefits

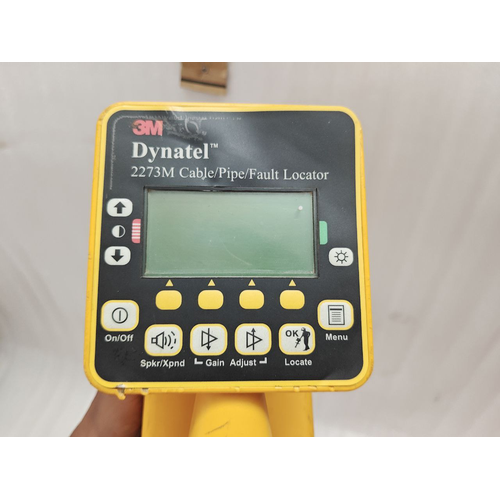

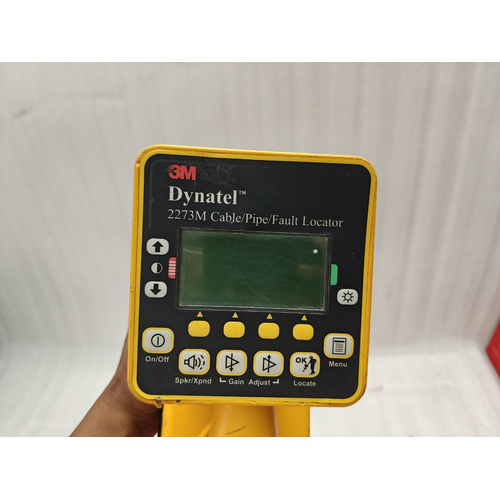

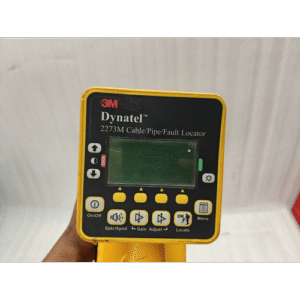

1. Powerful & Versatile 2273M Locator:

• Multi-Function Operation: Functions as a high-performance inductive locator, a sensitive inductive probe (for close-proximity tracing), and a precise fault-finding tool.

• Active & Passive Modes: Actively trace a specific line with a signal from the transmitter, or use passive modes to detect power (50/60 Hz) and radio (RF) signals on unknown utilities.

• Dynamic Depth & Current Display: Provides real-time, on-screen depth estimates and current measurement (mA). This allows you to not only find the line but also identify it by signal strength and trace its path with confidence.

• Peak/Null Modes: Switch between peak (arrow) and null (dip) response modes to suit different locating conditions and user preference for the highest accuracy.

• Rugged, Ergonomic Design: Built to withstand harsh job sites with a weather-resistant, drop-tolerant housing. The intuitive interface and comfortable grip reduce user fatigue.

2. High-Output 5250 Transmitter:

• Multiple Coupling Methods:

  • Direct Connection: Connect directly to a known pipe or cable for the strongest, most precise signal.

  • Inductive Clamp: Couple a signal onto a specific line without a direct electrical connection—ideal for live power or communications cables.

  • Inductive Mode: Broadcast a signal from the transmitter placed over the ground to induce a signal onto buried utilities without any contact.

• High Power Output: Provides multiple power settings to push a clear signal through long distances, difficult soil conditions, or congested areas.

• Advanced Signal Patterns: Offers multiple frequencies (e.g., 512 Hz, 8 kHz, 33 kHz) to optimize the signal for different types of utilities and ground conditions.

3. Superior Fault-Finding Capability:

• The system excels at pinpointing faults in buried cables, such as sheath faults in jacketed power cables or shorts in direct-buried telephone lines.

• The A-Frame accessory (often included or available) works with the locator to provide a precise distance-to-fault reading, speeding up repairs and minimizing excavation.

What’s Included in the Bundle?

The 2273M Bundle is a complete, ready-to-work package that typically includes:

• 2273M Locator (Receiver)

• 5250 Transmitter

• Direct Connect Leads

• Inductive Signal Clamp

• A-Frame (for precise fault locating)

• Durable Carry Case for storage and transport

• Operator’s Manual and Accessories

Primary Applications

This system is ideal for a wide range of industries and tasks:

• Utility Location: Marking the path of buried electric, gas, water, telecom, and fiber optic lines before excavation.

• Construction & Excavation: Complying with “Call Before You Dig” regulations and preventing damage during digging, trenching, or drilling.

• Municipal & Public Works: Managing and mapping underground infrastructure for maintenance and planning.

• Fault Location: Quickly finding and repairing sheath damage, cable shorts, and grounds.

• Line Identification: Differentiating between multiple utilities in a congested area using the unique current measurement feature.

Why Choose the 3M Dynatel 2273M Bundle?

• 3M Reliability: Backed by 3M’s reputation for quality, innovation, and durability.

• All-in-One Convenience: Get everything you need in one purchase to handle nearly any locating job.

• Increased Accuracy & Confidence: Advanced features like Depth and Current Reading reduce guesswork and prevent errors.

• Improved Jobsite Safety: Significantly reduces the risk of striking underground utilities, protecting workers and infrastructure.

• Time and Cost Savings: Locate lines and faults faster, avoid costly damages, and complete projects more efficiently.
