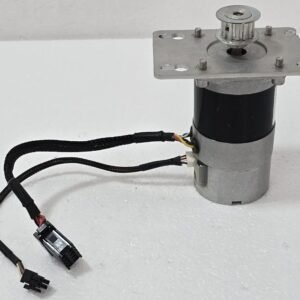

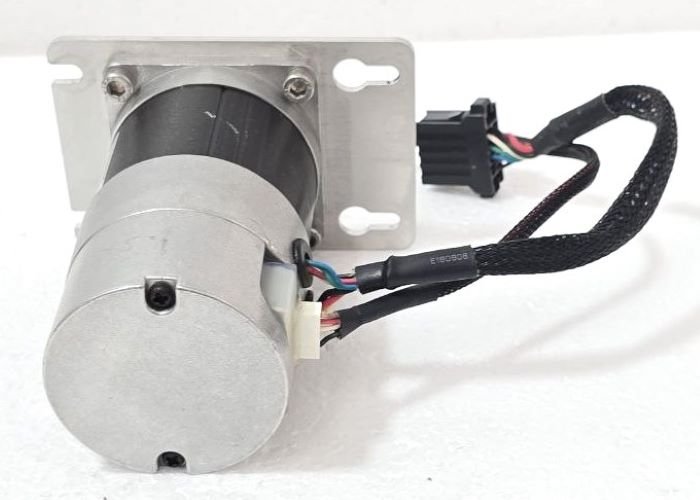

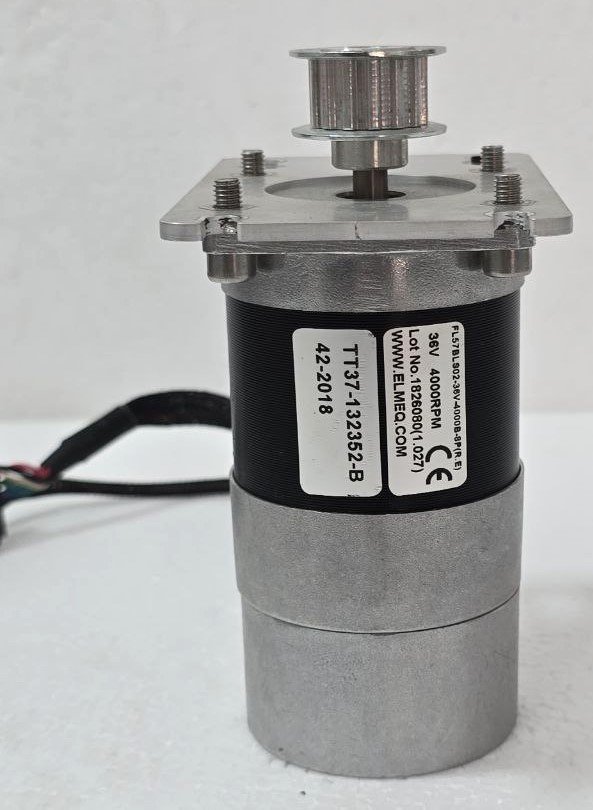

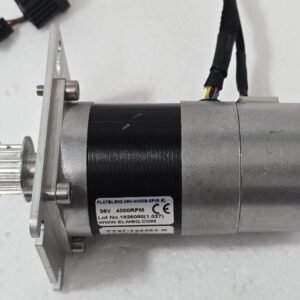

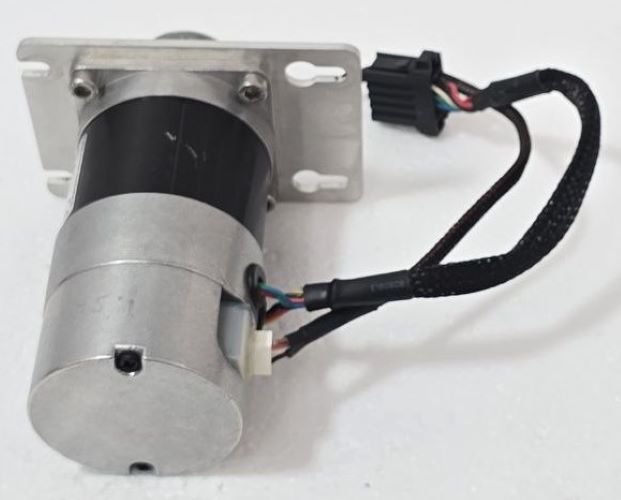

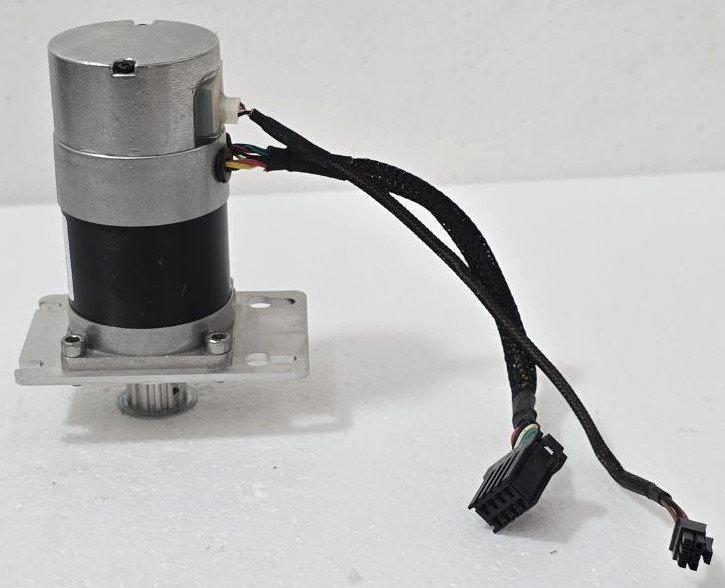

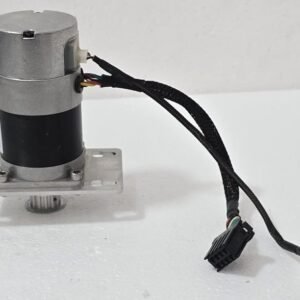

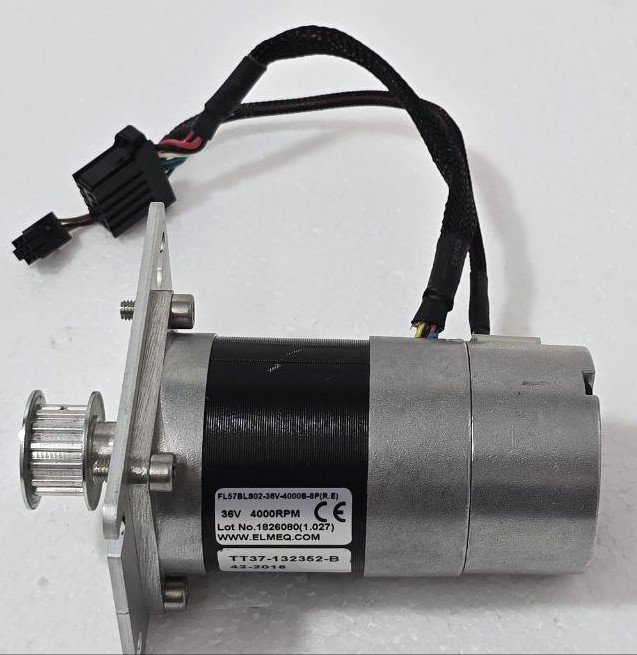

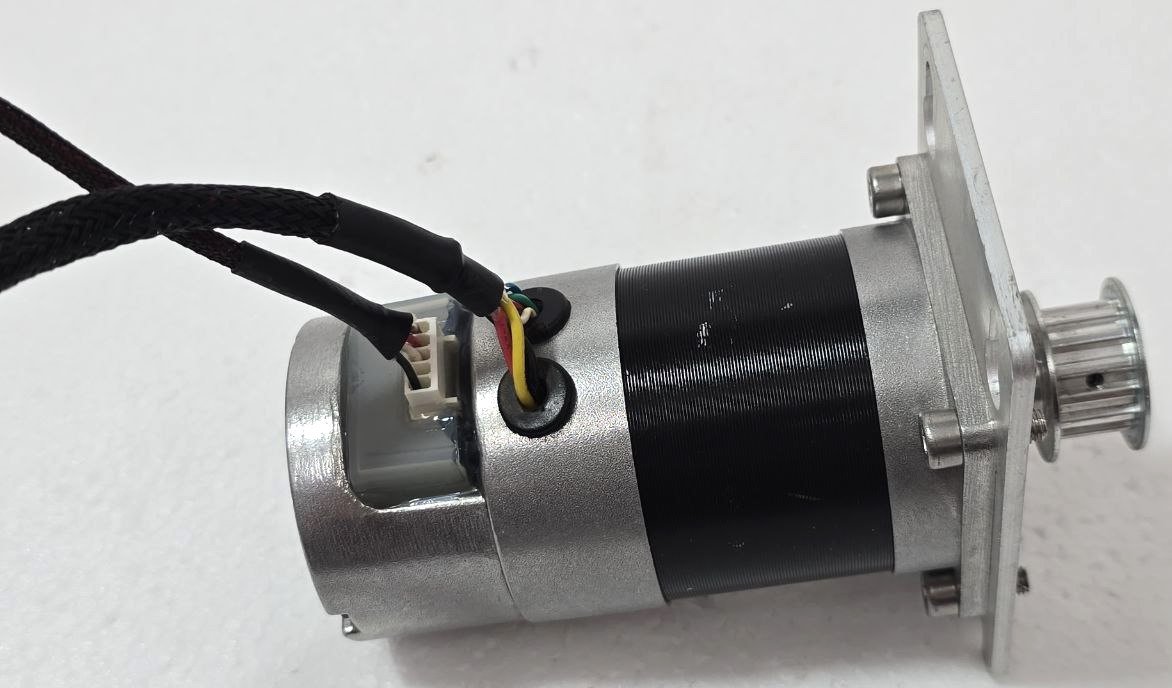

36 VOLTS 4000 RPM DC STEPPER MOTOR WITH ENCODER FL57BLS02-36V-4000B-8P ELMEQ

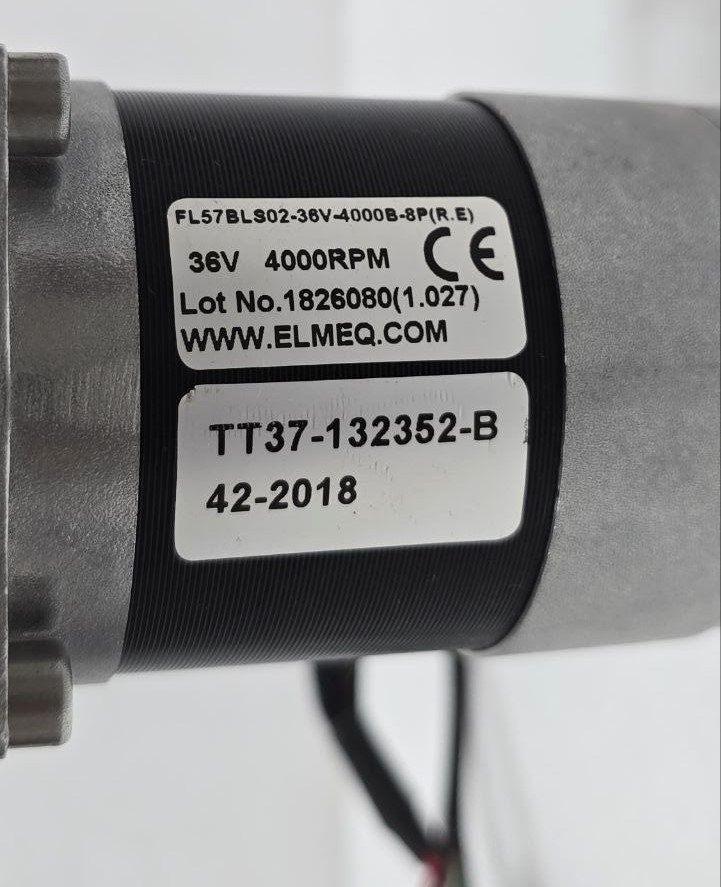

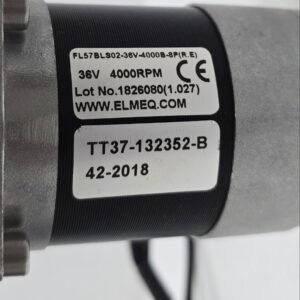

Model: FL57BLS02-36V-4000B-8P

• FL57: This is the frame size. It indicates a NEMA 23 standard motor body (57mm square flange).

• BLS: Likely stands for BrushLess Servo (or Stepper), confirming it’s a closed-loop stepper/servo hybrid motor.

• 02: Often indicates the stack length or motor version. A higher number usually means a longer motor and more torque.

• 36V: The rated voltage is 36V DC.

• 4000B: The “4000” very likely refers to the motor’s maximum speed of 4000 RPM under appropriate drive conditions. The “B” may be a revision code or denote a specific winding.

• 8P: This almost certainly means 8 Poles. A higher pole count in a brushless motor generally provides smoother low-speed operation and higher torque density.

Key Specifications :

1. Type: Hybrid Brushless DC (BLDC) Stepper/Servo Motor. It’s a closed-loop system, meaning it uses the encoder for precise position/speed feedback, correcting for missed steps.

2. Voltage: 36V DC (rated/nominal operating voltage).

3. Max Speed: 4000 RPM. This is a high speed for a stepper-type motor, made possible by its brushless design and proper driver.

4. Frame Size: NEMA 23 (57mm x 57mm mounting flange).

5. Encoder: Integrated. This is essential for the closed-loop operation. The resolution (e.g., 1000 CPR) isn’t specified in the model number but would be in the full datasheet.

6. Poles: 8.

Typical Applications:
This motor is designed for industrial automation and high-performance applications where reliability, speed, and precision are critical:

• CNC Routers (small to medium)

• 3D Printers (high-end, professional)

• Automated Guided Vehicles (AGVs)

• Precision conveyor systems

• Robotics

• Pick-and-place machines
