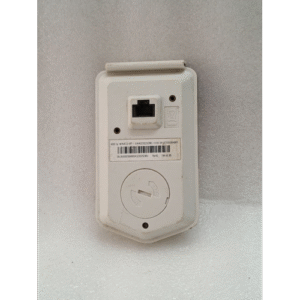

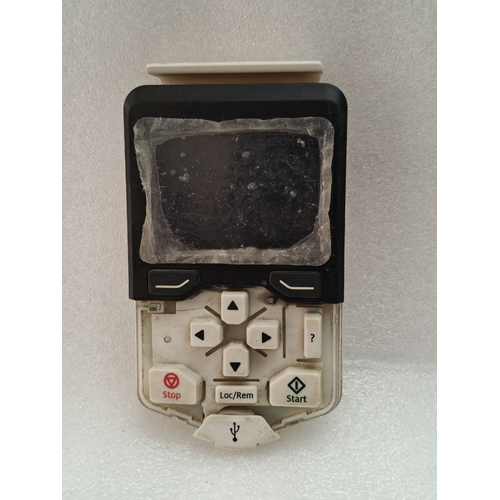

1PC ABB ACS-AP-I ACSAPI OPERATOR CONTROL PANEL Keypad 11:51

The ABB ACS-AP-I ACSAPI is a robust and user-friendly operator control panel (keypad) designed specifically for integration with ABB’s ACS series of industrial AC drives. This essential component provides a local interface for operators to monitor drive parameters, adjust settings, and control motor operations directly from the drive itself.

Ideal for machinery, conveyor systems, pumps, fans, and a wide range of industrial automation applications, the ACSAPI panel ensures reliable and intuitive control, enhancing operational efficiency and simplifying troubleshooting.

Key Features & Benefits

• Direct Plug-and-Play Compatibility: Designed to seamlessly connect with ABB ACS drives (such as the ACS150, ACS350, ACS550, ACS580, etc.), eliminating the need for complex wiring or additional interfaces.

• Clear, Backlit LCD Display: Features an easy-to-read display with backlighting, ensuring visibility of key parameters like frequency, current, and fault messages even in low-light conditions.

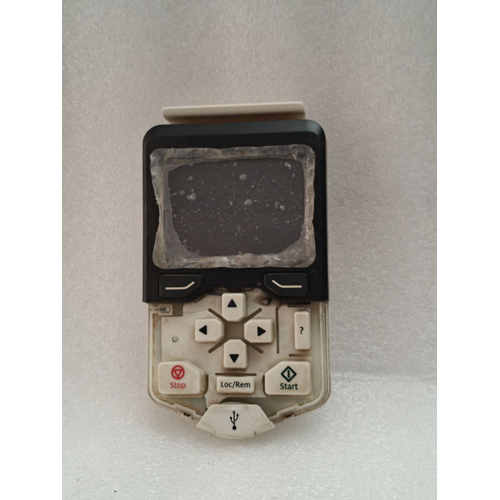

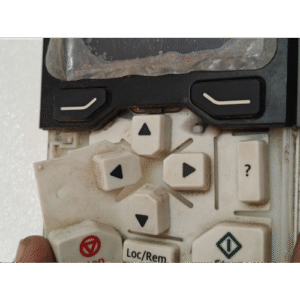

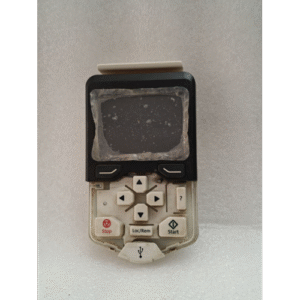

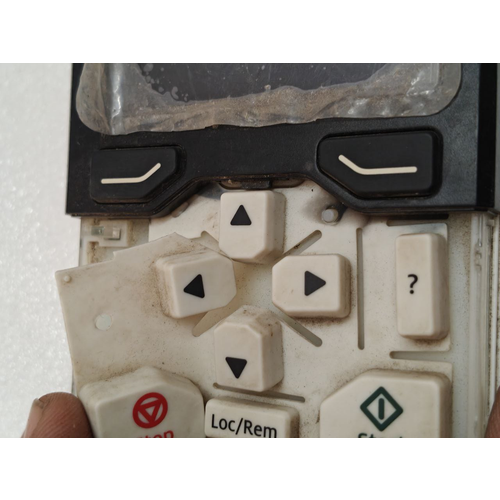

• Intuitive Keypad Layout: Simple and logical button arrangement allows for easy navigation through drive menus, parameter setting, and manual control (Start, Stop, Direction, Jog).

• Robust Industrial Design: Built to withstand harsh industrial environments, including resistance to vibrations, dust, and moisture, ensuring long-term reliability.

• Handy Pocket Mounting: The keypad can be conveniently stored in the drive’s optional pocket mount (often sold separately) when not in use, protecting it from damage.

• Parameter Copy Functionality: Allows users to upload and download parameter settings between drives, significantly reducing commissioning and replacement time.

Technical Specifications

• Product Code: ACS-AP-I

• Commonly Referenced As: ACSAPI

• Type: Operator Control Panel / Keypad

• Manufacturer: ABB

• Display: Backlit LCD

• Compatibility: ABB ACS150, ACS350, ACS355, ACS550, ACS580, ACS800 (with adapter), and other ACS series drives. Always verify compatibility with your specific drive model.

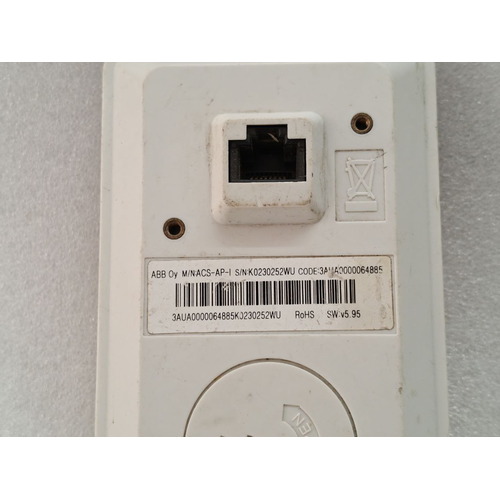

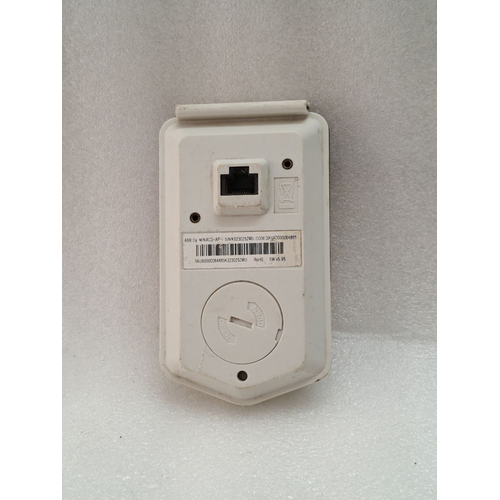

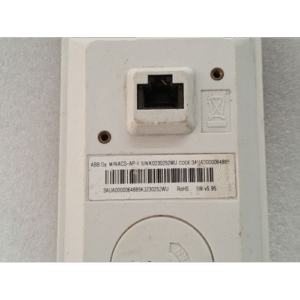

• Connection: Direct connection via dedicated port on the drive.

Common Applications

This operator panel is used across various industries for the control and monitoring of:

• HVAC Systems: Controlling fans and pumps in building automation.

• Material Handling: Operating conveyor belts, palletizers, and sorting systems.

• Water & Wastewater Treatment: Managing pump and mixer speeds.

• Food & Beverage Production: Regulating process machinery.

• Industrial Machinery: Providing control for machine tools, extruders, and more.
