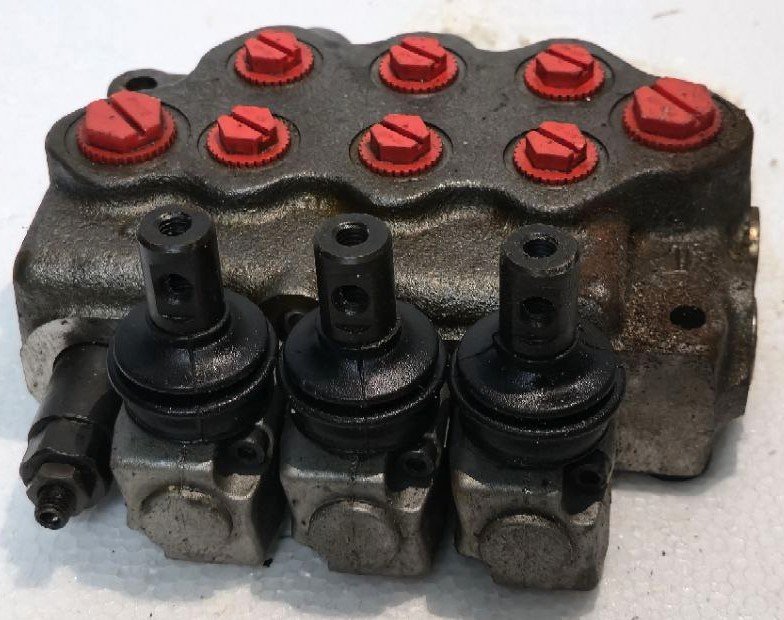

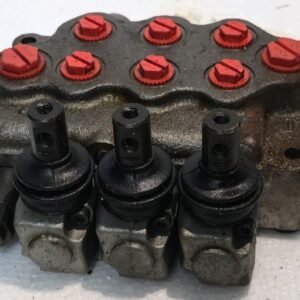

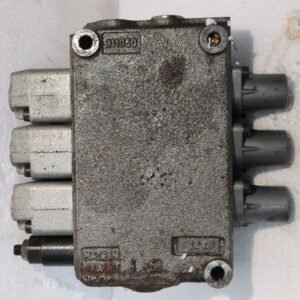

Product: 1-6 Spool Hydraulic Monoblock Directional Control Valve with Adjustable Relief Valve (Model: P081011366)
Description:
This is a versatile, modular directional control valve designed for a wide range of mobile and industrial hydraulic applications. Built as a single, robust casting (monoblock), it offers superior leak resistance and durability compared to stacked valve sections.
The valve can be configured with 1 to 6 individual spools, allowing you to control multiple hydraulic functions (e.g., cylinders, motors) from a single valve bank. Each spool is typically a 4-port, 3-position (likely spring-centered) design for precise control of double-acting actuators.
A key feature is the integrated adjustable pressure relief valve, which allows for precise setting of the maximum system pressure, protecting components from overload and ensuring safe operation.
Key Features & Specifications:
-
Type: Monoblock (Single Cast Body) Directional Control Valve
-
Configuration: Selectable from 1 to 6 working sections (spools)
-
Function: Controls direction, start, and stop of hydraulic flow
-
Critical Feature: Built-in, adjustable system pressure relief valve
-
Typical Spool Pattern: Likely tandem center (common for monoblocks), other center types may be available.
-
Porting: Inlet (P), Return to Tank (T), and Work Ports (A & B) for each spool.
-
Mounting: Standard ISO/NFPA interface.
-
Model / Part Number: P081011366 (Use this for exact identification and ordering).
Common Applications:
-
Agricultural machinery (tractors, loaders)
-
Material handling equipment
-
Construction machinery (small excavators, lifts)
-
Industrial hydraulic power units and presses
-
Forestry equipment
