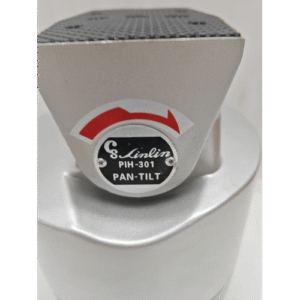

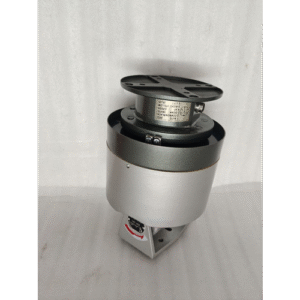

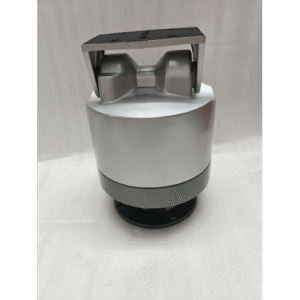

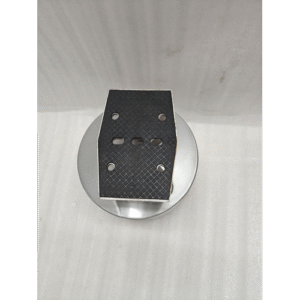

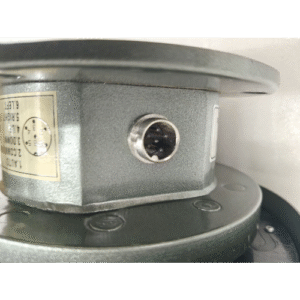

PIH-301 Lilin CCTV PAN TILT Outdoor Unit / No Control 230 VAC
- PIH-301
- LILIN CCTV
- PAN TILT
- OUTDOOR UNIT
- NO CONTROL
- VOLTAGE: 230 VAC
The LILIN PIH-301 is a robust, professional-grade outdoor Pan and Tilt unit designed to provide precise camera positioning for surveillance applications. Its primary function is to physically move a fixed camera (like a box camera) horizontally and vertically, significantly expanding the field of view from a single location.
Key Features:
-
Heavy-Duty Outdoor Design:Â Built with a weatherproof (IP66-rated) housing, the PIH-301 is engineered to withstand harsh outdoor conditions, including rain, dust, and extreme temperatures.
-
230 VAC Direct Power:Â Operates on a standard 230 Volts Alternating Current (VAC) power supply, simplifying installation in commercial and industrial settings where this voltage is readily available.
-
Precise Pan and Tilt Movement:Â Offers smooth and accurate horizontal (pan) and vertical (tilt) movement, allowing for comprehensive area coverage.
-
High Weight Capacity:Â Capable of supporting heavy-duty box cameras and their associated housings.
-
Integrated Slip Ring:Â Features a continuous rotation slip ring design, which prevents the cabling from twisting and tangling during unlimited 360-degree panning.
-
SEO-Optimized Summary:Â Outdoor PT unit for CCTV systems, providing remote camera control for wide-area surveillance.
Technical Specifications
| Category | Specification |
|---|---|
| Model | PIH-301 |
| Brand | LILIN |
| Type | Outdoor Pan and Tilt Unit |
| Power Supply | 230 VAC |
| Operation Environment | Outdoor (Weatherproof) |
| Ingress Protection | IP66 (Dust-tight and protected against powerful water jets) |
| Pan Range | 360° continuous |
| Tilt Range | Typically -5° to +90° (subject to camera obstruction) |
| Control Protocol | Lilin (compatible with Lilin DVRs/NVRs). May support Pelco-D/Pelco-P with dip-switch settings. |
| Communication | Typically RS-485 for control signal. |
| Load Capacity | High (e.g., supports standard box cameras with housings). Check exact kg/lbs rating in official manual. |
| Mounting | Pole Mount or Surface Mount |
Intended Application & Use Case
The PIH-301 is ideal for scenarios requiring active monitoring of a large outdoor area where a fixed camera’s view is insufficient.
-
Large Perimeter Monitoring:Â Parking lots, industrial yards, storage facilities.
-
Critical Infrastructure:Â Power substations, water treatment plants.
-
Public Spaces:Â Parks, school grounds, transportation hubs.
