Brand
|
Mean Well
|
Commodity
|
8504408390
|
|
Item number
|
RSP-1500-27
|
Warranty pack
|
60 Months Bring-In
|
|
Series
|
RSP-1500
|
RoHS
|
Compliant
|
|
Description
|
AC-DC Single Output Enclosed power supply; Output 27VDC Single Output at 56A; PFC; forced air cooling
|
Packing quantity
|
|
|
Application
|
ITE EN/UL/IEC 60950
|
Net weight (gram)
|
3570
|
|
Technology
|
AC/DC
|
||
|
Power Format
|
Box Type – Enclosed
|
||
|
Output Power (W)
|
1500
|
||
|
Output Voltage (V)
|
27
|
||
|
Output Current (A)
|
56
|
||
|
Input Voltage (V)
|
110/230 universal input
90 – 264
|
||
|
IP Rating
|
No IP assigned
|
||
|
Width (mm)
|
127
|
||
|
Height (mm)
|
83.5
|
||
|
Depth (mm)
|
278
|
||
|
Control Signals
|
DC OK
ON/OFF
Remote Sense
Vaux auxilary
|
||
|
Dimming Technology
|
No Dimming
|

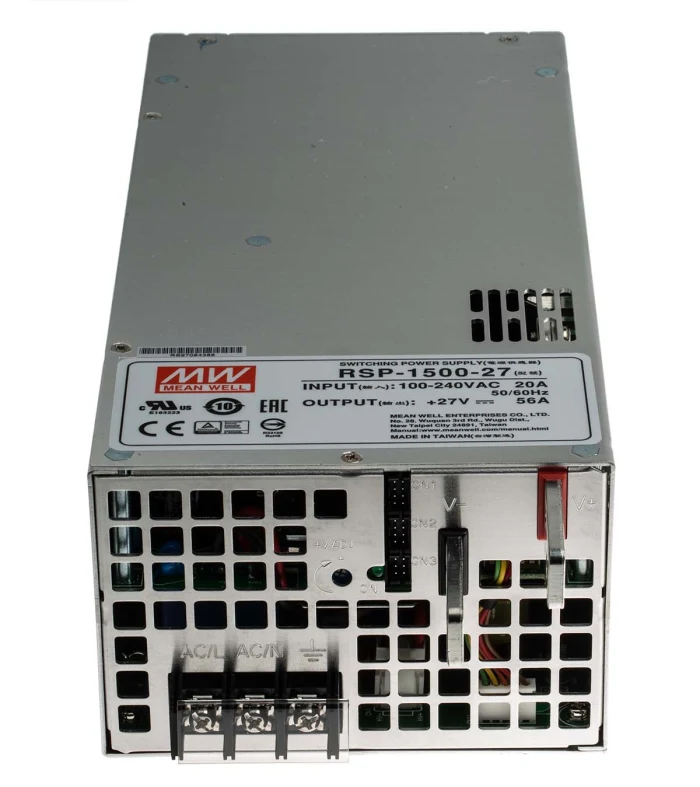

The Mean Well RSP-1500-27 is a robust, single-output AC/DC power supply designed to deliver reliable and stable power for demanding industrial applications. With a substantial output of 27 Volts and 56 Amps, this 1500-watt unit is the ideal energy source for high-power equipment, including professional LED displays, telecommunications systems, industrial machinery, and test benches. Built with Mean Well’s renowned quality, it offers high efficiency, comprehensive protection features, and a durable metal housing for long-term operation in challenging environments.
Key Features & Benefits
-
High Power & Stable Output:Â 1500W total power with a single, clean 27V DC / 56A output. Perfect for driving high-current devices without performance fluctuations.
-
Universal AC Input (90-264VAC):Â Automatically adjusts to nearly any mains power voltage around the world, simplifying installation and enhancing versatility.
-
High Efficiency (up to 91%):Â Reduces power loss and heat generation, leading to lower operating costs and improved long-term reliability.
-
Active Power Factor Correction (PFC >0.95):Â Meets international harmonic current standards (EN61000-3-2), minimizes energy waste, and is ideal for use in industrial settings.
-
Comprehensive Protection: Built-in safeguards including Overload (OLP), Over Voltage (OVP), Over Temperature (OTP), and Short Circuit (SCP) protect both the power supply and your valuable connected equipment.
-
Forced Air Cooling with Smart Fan:Â A temperature-controlled fan ensures optimal thermal management under high load, maintaining performance and extending component life.
-
DIN Rail Mountable:Â Designed for easy and secure installation on standard DIN rails (TS-35/7.5 or 15), making it a perfect fit for industrial control panels and automation systems.
-
Cooling Fan On/Off Control:Â TheÂ
ON/OFFÂ terminal allows for external control of the cooling fan, enabling silent operation during low-load conditions. -
Power Good Signal:Â TheÂ
P.G. signal provides a remote status indicator, allowing systems to monitor the health of the power supply.
Technical Specifications
| Category | Specification |
|---|---|
| Model | RSP-1500-27 |
| Total Output Power | 1500 Watts |
| Output Voltage | 27 VDC |
| Output Current | 56 A |
| AC Input Voltage | 90 ~ 264 VAC (Universal) |
| Input Frequency | 47 ~ 63 Hz |
| Efficiency | Up to 91% |
| Power Factor (PFC) | >0.95 @ 115VAC / 230VAC |
| Inrush Current | Cold start 50A @ 230VAC |
| Leakage Current | < 3.5 mA @ 240VAC |
| Voltage Adjustment Range | 24 – 30 VDC |
| Line Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Ripple & Noise (max.) | 150 mVp-p |
| Overload Protection | 105 ~ 135% rated output power (Hiccup mode, auto-recovery) |
| Over Voltage Protection | 31.5 – 34.5 VDC (Latch) |
| Over Temperature Protection | Latch (with auto-recovery function on certain versions) |
| Operating Temperature | -30 ~ +70°C (See derating curve) |
| Storage Temperature | -40 ~ +85°C |
| Cooling | Temperature-controlled DC Fan |
| Housing | Metal Enclosure |
| Mounting | DIN Rail (TS-35/7.5 or 15) |
| Safety Standards | UL 62368-1, TUV BS EN/EN 62368-1 |
| EMC Standards | EN 55032/55035, FCC Part 15B Class B |
| Dimensions (L x W x H) | 199.5 x 127.5 x 105.5 mm (without DIN rail) |
| Warranty | 3 Years |
Common Applications
This high-amperage 27V power supply is commonly used for:
-
High-Power LED Lighting:Â Large-scale LED video walls, stadium lighting, architectural and stage lighting.
-
Industrial Automation & Machinery:Â PLC systems, motor drives, servo controllers, and 3D printers.
-
Telecommunications Equipment:Â Base station power, network infrastructure.
-
Test & Measurement Benches:Â Powering prototypes, lab equipment, and electronic loads.
-
Security Systems:Â Multi-camera CCTV systems and access control panels.
-
Battery Charging:Â For large battery banks and backup systems.
