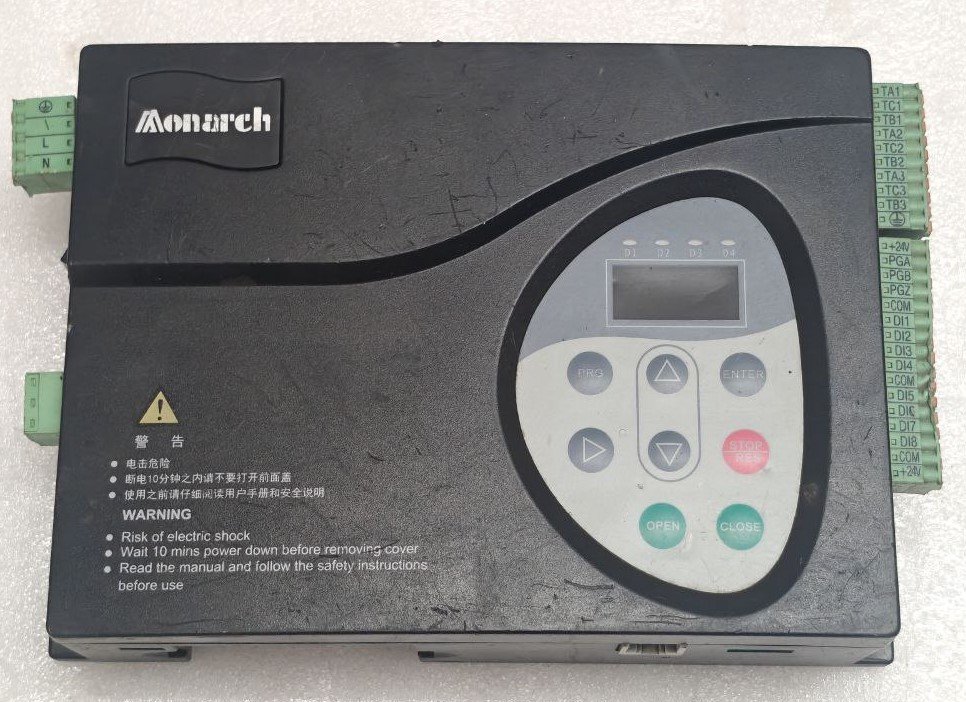

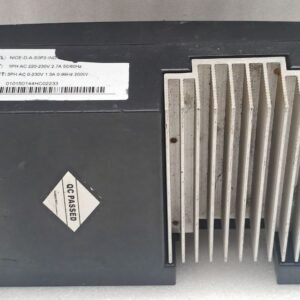

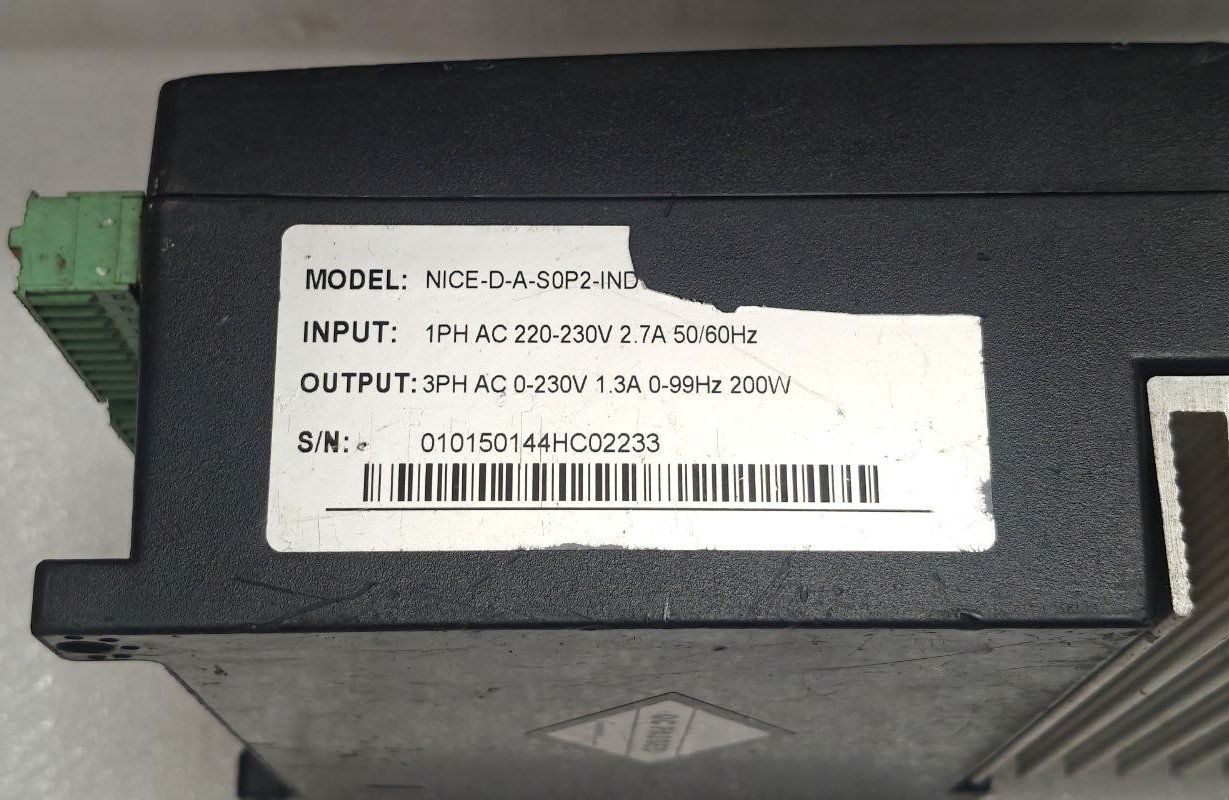

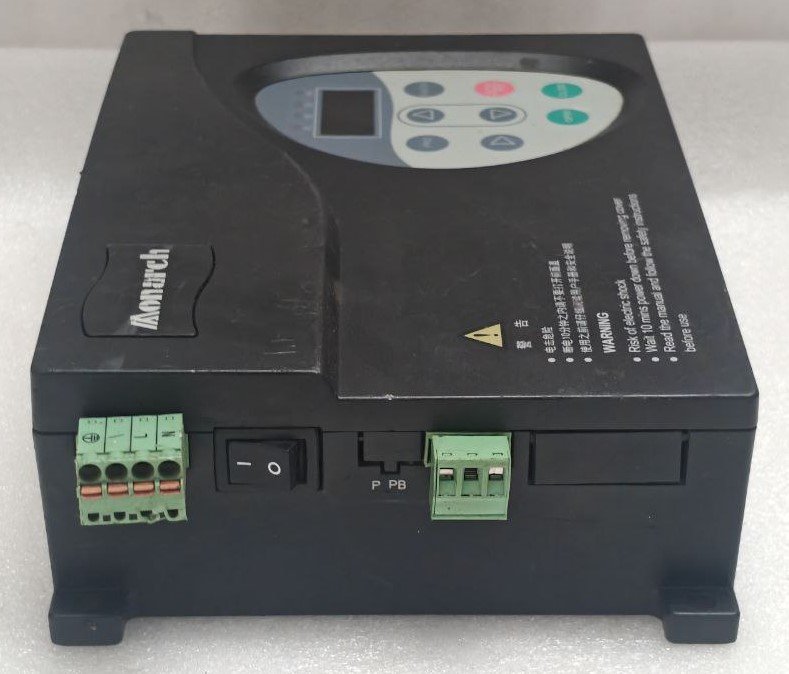

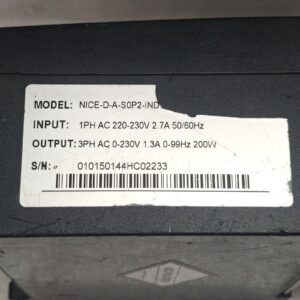

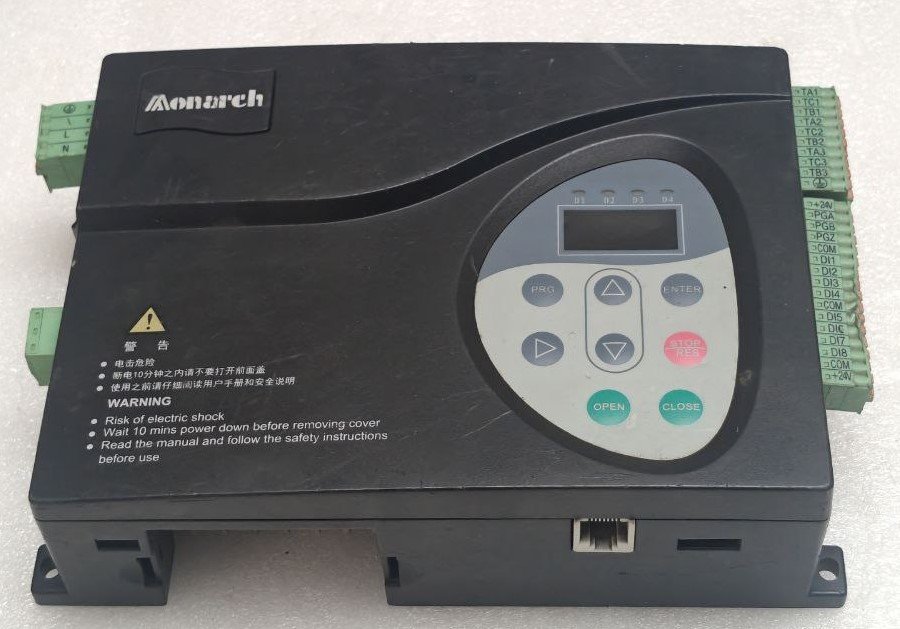

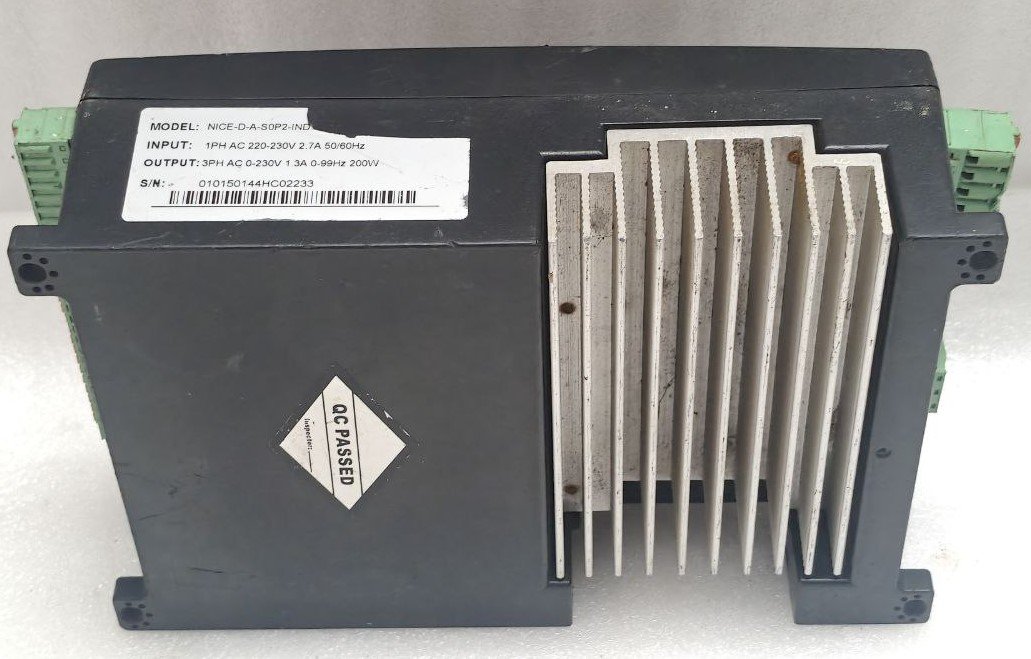

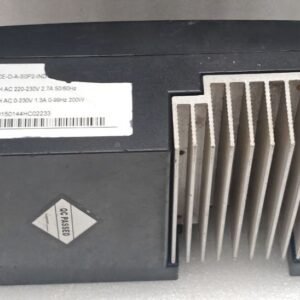

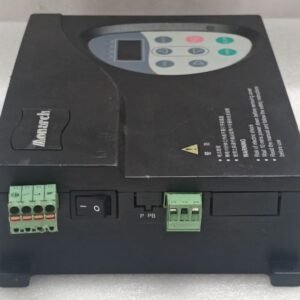

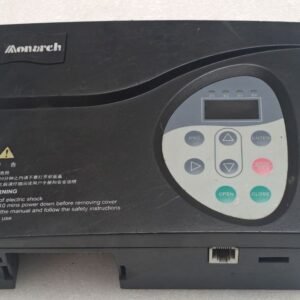

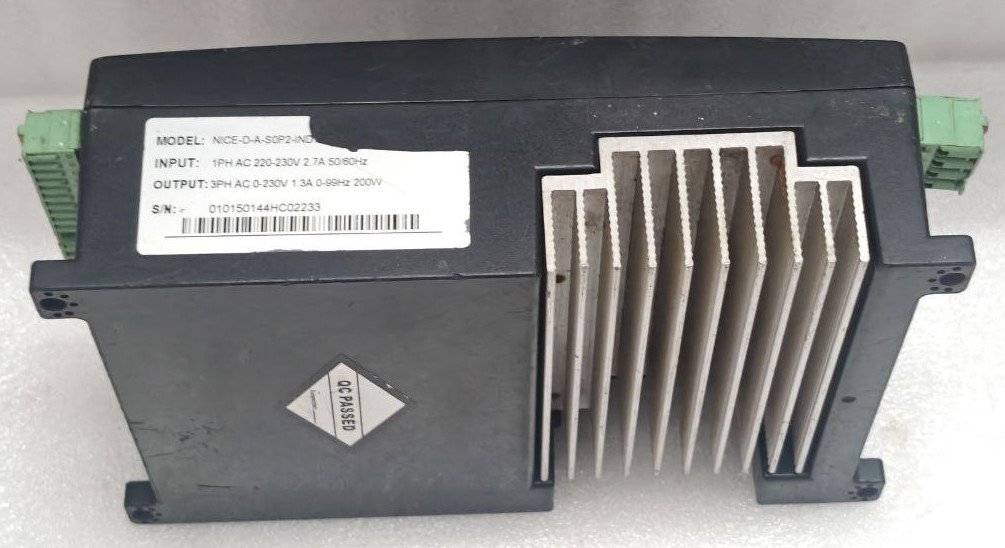

MONARCH NICE-D-A-S0P2-IND DOOR INVERTER CONTROLLER 010150144HC02233 13:14

The MONARCH NICE-D-A-S0P2-IND is a sophisticated electronic drive and control unit, specifically an Inverter Controller, designed for automatic sliding door systems. It acts as the “brain” and “nervous system” of the door, providing smooth, safe, and efficient operation by precisely controlling the electric motor.

Its primary function is to convert incoming electrical power (typically single-phase or three-phase AC) into a controlled output that regulates the motor’s speed, torque, and direction. This results in soft starts, variable travel speeds, and gentle stops, significantly reducing wear and tear on the door mechanism.

The “IND” in the part number strongly suggests it is designed for industrial or heavy-duty applications, where reliability, durability, and performance under frequent use are critical.

Breakdown of the Product Code / Model Number

Manufacturer part numbers are structured to convey specific information. Here’s a likely interpretation of MONARCH NICE-D-A-S0P2-IND:

• MONARCH: The brand or manufacturer of the component. Monarch is a well-known brand in the door automation industry.

• NICE: Likely refers to the product family or the parent company (NICE S.p.A., a leading Italian manufacturer of automation systems, which owns the Monarch brand).

• D: Often denotes “Drive” or “Controller.”

• A: Could indicate a specific series or amperage rating.

• S0P2: This is a crucial functional code.

  • S: Likely stands for “Sliding” door type.

  • 0: May indicate a standard or base configuration.

  • P2: Almost certainly refers to the power rating of the unit (e.g., a specific horsepower or amperage output for the motor). This defines the size and weight of the door it can handle.

• IND: Confirms the unit is for Industrial use, as opposed to commercial or residential (“COM” or “RES”). It is built with more robust components for higher duty cycles.

Key Features and Functionality

1. Variable Speed Control (Inverter Function): The core feature. It allows for fully adjustable opening and closing speeds, slow-down zones, and damping at the end of travel.

2. Soft Start/Stop: Eliminates jarring movements, reducing mechanical stress on the door, track, and operator.

3. Torque Control: Provides consistent force, which is essential for safety (e.g., to meet obstacle detection requirements) and for overcoming factors like wind load on large industrial doors.

4. Programmable Logic: Technicians can customize parameters like open time, hold-open delay, sensitivity of safety devices, and speed profiles via dip-switches or software.

5. Safety Device Integration: Designed to interface with critical safety components such as:

   • Safety Edges (contact sensors)

   • Photoelectric Cells (motion/obstruction beams)

   • Access Control Systems (keypads, card readers)

   • Emergency Breakout Devices

6. Diagnostics and Monitoring: Often includes LED indicators or communication protocols to help technicians diagnose faults (e.g., motor overload, obstruction, power failure).

Typical Applications

This controller is used in automatic sliding door systems for:

• Industrial Warehouses & Loading Docks

• Large Retail Stores & Supermarkets

• Hospitals and Healthcare Facilities

• Airports and Transportation Hubs

• Office Buildings with high-traffic entrances
