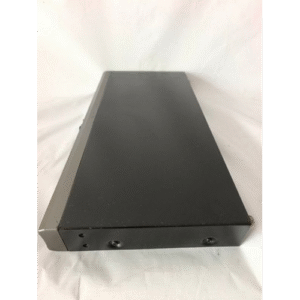

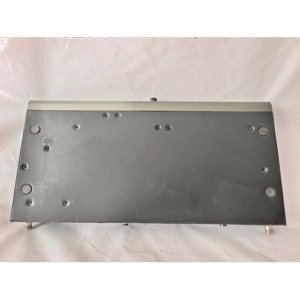

MIPRO MR-823V DUAL CHANNEL DIVERSITY RECEIVER FREQ 653.775 TO 664.850

• CPU diversity technology ensures stable signal quality and avoids signal drop-out.
• PLL synthesized fixed frequency circuit for stability and effortless frequency setup.
• RF and audio level LED indicators.
• Adjustable ‘SQ’ for increased or decreased sensitivity level for increased reception range or interference management.
• Output level is accurately pre-adjusted to equal the microphone capsule sensitivity and ensures optimal performance.

The MIPRO MR-823V is a professional-grade, dual-channel UHF diversity receiver designed for critical wireless microphone and in-ear monitor applications. Operating in a select, high-stability frequency band, it is built to deliver exceptional audio quality and rock-solid reliability in demanding environments like live sound, broadcasting, theater, and corporate installations.

The specified frequency range (653.775 – 664.850 MHz) places this unit in a segment that is typically reserved for licensed users (like broadcasters) in many regions. It is absolutely crucial to verify the legal availability of these frequencies in your specific country/location before use, as they may be affected by local spectrum reallocation (such as the ongoing repurposing of the 600 MHz band for cellular services in North America).

Key Features & Specifications

• Dual Independent Channels: Two completely separate receiver channels in a single 1U rack-mount unit, allowing you to operate two wireless microphone systems or one microphone and one in-ear monitor system simultaneously.

• True Diversity Reception: Employs a sophisticated dual-antenna, dual-tuner design. The receiver continuously and intelligently selects the strongest, clearest signal from the two antennas, effectively eliminating dropouts and signal fades (nulls) caused by multipath interference.

• Frequency Band: Tunes across the 653.775 – 664.850 MHz range. This allows for a wide selection of frequencies to avoid TV station interference and to set up multiple systems co-located.

• High Receiver Sensitivity: Excellent sensitivity ensures a strong, clear signal is received even at longer distances from the transmitter.

• PLL Synthesized Tuning: Phase-Locked Loop technology provides crystal-controlled frequency stability for drift-free performance.

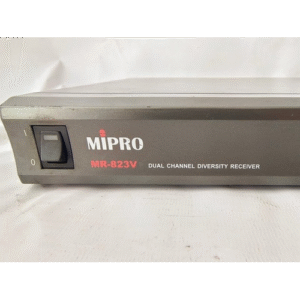

• Intuitive Front Panel Controls: Features a clear LCD display and simple buttons for easy setup and monitoring of operating frequency, RF/audio level, and battery status for compatible MIPRO transmitters.

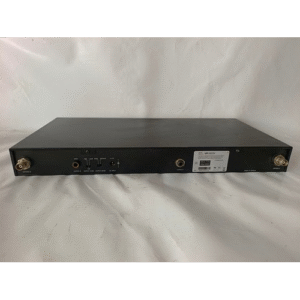

• Comprehensive Outputs: Each channel provides both balanced (XLR) and unbalanced (1/4″ Jack) outputs for flexible connection to mixing consoles, audio interfaces, or PA systems.

• Rack-Mountable Design: Standard 19-inch, 1U rack-mount form factor for easy integration into any professional equipment rack.

• Compatibility: Designed to work seamlessly with MIPRO transmitters that operate in the same frequency band (e.g., ACT- Series bodypack transmitters, MU- Series handheld transmitters).
