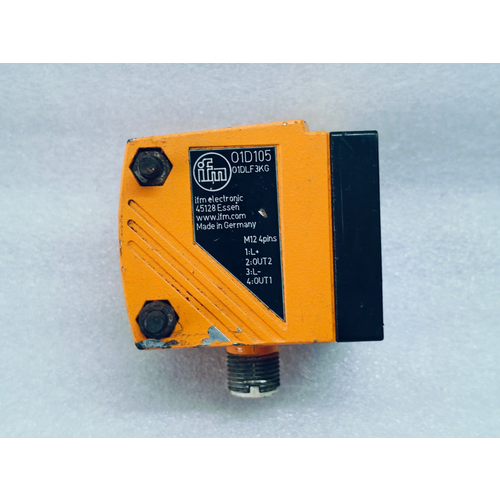

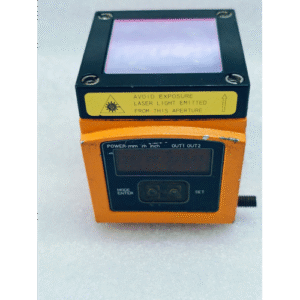

IFM optical distance sensor/IFM/01D105/O1D105 /O1DLF3kG / with analog output T AK 1503 11:23

• Electrical design                                                                                      DC PNP
• Output                                                                           OUT1: normally open / closed programmable
•                                                        OUT2: normally open / closed programmable or analogue (4…20 mA / 0…10 V, scalable)
• Light spot diameter [mm]                                                                   6 ( Range 10 m )
• Sampling rate [Hz]                                                                                     1…33
• Operating voltage [V]                                                                             18…30 DC
• Current consumption [mA]                                                                         < 150
• Current rating [mA]                                                                                     2 x 200
• Short-circuit protection                                                                                pulsed
• Reverse polarity protection                                                                           yes
• Overload protection                                                                                       yes
• Life expectancy typ. [h]                                                                               50000
• Display                                                                       Switching status            2 x LED yellow
•                                                                                    Operation                      LED green
•                                                                                    Distance, programming 4-digit alphanumeric display
• Ambient temperature [°C]                                                                          -10…60
• Protection                                                                                                   IP 67, III
• Housing materials                                                  housing: diecast zinc; window: glass; LED window: polycarbonate
• Analogue output
• current output [mA]                                                           4…20 according to IEC 61131-2
• Max. load [Ω]                                                                                                 250
• voltage output [V]                                                             0…10 according to IEC 61131-2
• Min. load [Ω]                                                                                                  5000
• EMC                                                                                                       EN 60947-5-2
• Connection                                                                                             M12 connector
• Weight [kg]                                                                                                     0.282
• Remarks                                                                                      Caution: Laser Light
•                                                                                                     Power <= 4.1 mW wavelength = 650 nm
•                                                                                                     pulse 1.3 ns
•                                                                                                     Do not stare into beam
•                                                                                                     Avoid exposure
•                                                                                                     Class 2 laser product
•                                                                                                     EN 60825-1:2003-10
•                                                                                                     cULus – Class 2 source required
• Accessories (optional)                                                                       Protective cover E21133
• COUNTRY OF MANUFACTURER                                                          GERMANY

This sensor uses a focused, visible red light beam to accurately measure the distance to a target. It is part of IFM’s O1D series, known for its robust design, ease of use, and high reliability in challenging environments.

• Core Function: Precise non-contact distance measurement.

• Technology: Optical Time-of-Flight (ToF) principle.

• Light Source: Visible red light (class 2 laser), making alignment easy and safe.

• Key Feature: Teach-In Functionality. The measurement ranges and switching points can be easily set by pressing a button or via a remote input, eliminating the need for complex potentiometers.

Detailed Breakdown of Your Model: IFM01D105O1D105 O1DLF3kG

Let’s decode the order number to understand the exact specifications of your sensor:

• IFM01D105: Base model identifier for the O1D series sensor.

• O1D: Series name.

• L: Sensing Range. The “L” indicates a long-range version.

  • Measuring Range: Typically 100 – 3000 mm (3 meters) – confirmed by your “3k” code.

  • Reference Distance: 1500 mm (the standard distance for specifications like accuracy).

• F: Output Function. “F” stands for Analog output and two switching outputs. This means the sensor provides:

  1. One continuous analog signal (e.g., 0-10V or 4-20mA).

  2. Two programmable digital switching outputs (e.g., PNP).

• 3k: Sensing Range Value. This explicitly confirms the 3000 mm (3 meter) maximum sensing distance.

• G: Light Source. “G” specifies a visible red light source (laser class 2). This is ideal for easy and precise alignment.

Analog Output: T AK 1503

This code defines the type of analog signal your sensor is configured for:

• T: Likely refers to the output type or cable connector.

• AK: This is the critical part. In IFM’s terminology, “AK” typically stands for “Current Output”.

• 1503: This often specifies the signal range.

  • Interpretation: Your sensor is most likely configured for a 4…20 mA analog current output.

  • Why 4-20mA? This is a standard industrial signal that is highly resistant to electrical interference and can be transmitted over long distances. The 4 mA “live zero” also allows for fault detection (e.g., 0 mA indicates a broken wire or sensor failure).

Key Features & Benefits

• High Accuracy & Resolution: Provides precise and repeatable measurements, suitable for demanding positioning and inspection tasks.

• Long Sensing Range: The 3-meter range allows for flexibility in machine design and measuring large objects or distances.

• Easy Setup via Teach-In: No tools or software needed. Simply place the target at the desired min/max points and press the button to set the analog scaling and switching points.

• Dual Switching Outputs: Can be used as independent limit switches (e.g., “object too close” / “object too far”) in addition to the analog value.

• Robust Housing: Typically housed in a rugged M18 or M30 metallic casing, making it resistant to vibration and industrial contaminants.

• High Immunity to Ambient Light: Designed to function reliably under various lighting conditions found in factories.

• IO-Link Capable (on many models): Allows for advanced parameter setting, data monitoring, and diagnostic information directly to a controller.

Typical Applications

This sensor is versatile and can be used in numerous industries, including:

• Material Handling: Detecting the height of stacks, fill level in bins, or positioning on a conveyor.

• Packaging: Checking package dimensions, counting stacked items, or controlling flap folding machines.

• Logistics: Measuring the size of pallets or parcels for automated sorting systems.

• Automotive & Robotics: Position feedback for robotic arms, end-effector positioning, and assembly verification.

• Wood & Metal Processing: Monitoring sheet or roll diameter.
