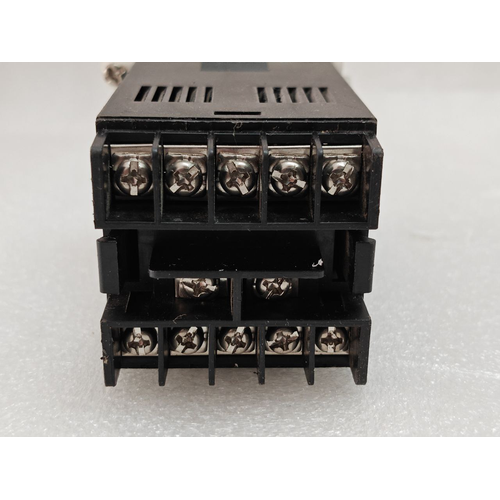

Autonics TZN4S-14R Thermostat Digital Dual PID Temperature Controller 12:34

The TZN series temperature controllers are equipped with dual speed PID control for high-speed or high-precision temperature control.

• Dual-speed PID control
• 2-step auto tuning function
• Made in korea

Elevate your industrial heating and cooling processes with the Autonics TZN4S-14R, a high-performance digital temperature controller engineered for reliability and accuracy. This compact, feature-rich thermostat delivers the precise control necessary for demanding applications, from plastic injection molding and packaging machinery to laboratory equipment and food processing systems.

Housed in a space-saving 1/16 DIN form factor, the TZN4S-14R is perfect for control panels where real estate is at a premium. Its intuitive dual display provides at-a-glance monitoring, showing both the current temperature (PV) and target setpoint (SV) simultaneously, eliminating guesswork and enhancing operational efficiency.

Key Features & Benefits:

• Advanced Dual PID Control: Ensures rapid and stable temperature regulation by minimizing overshoot and deviation. The sophisticated PID algorithm with Auto-Tuning (AT) automatically calculates the optimal P, I, and D values for your specific system, saving you time on complex manual setup and guaranteeing superior process stability.

• Solid State Relay (SSR) Output: The 14R model is configured with an SSR drive output (12V DC, 20mA), designed for fast, silent switching and long-life operation when paired with an external Solid State Relay. This is ideal for applications requiring high-frequency cycling and minimal electrical noise.

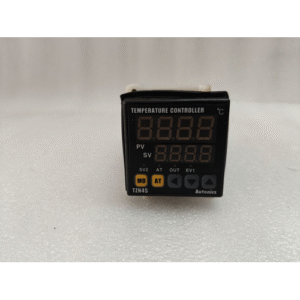

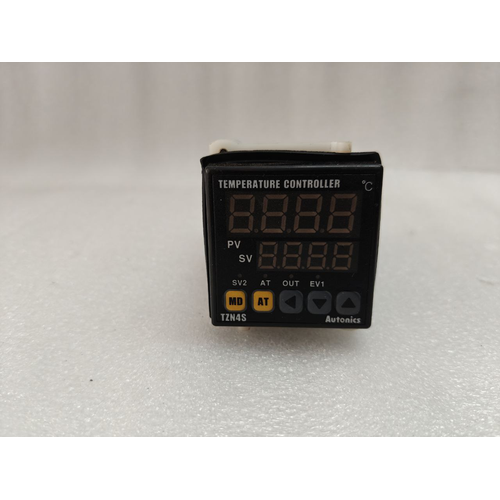

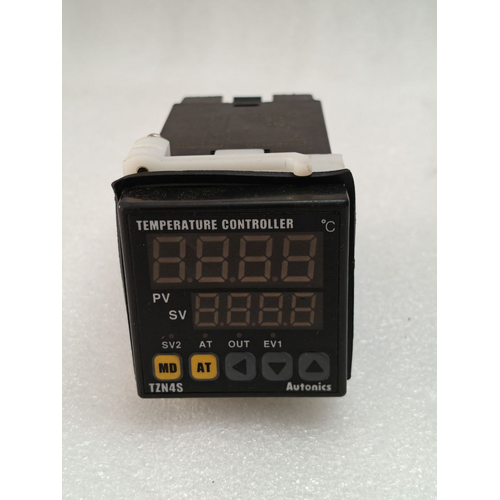

• Clear Dual Digital Display: The bright, high-contrast LED displays show the Process Value (PV) and Set Value (SV) clearly, allowing for easy monitoring and adjustment from a distance.

• Versatile Input Compatibility: Accepts a wide range of thermocouple (J, K) and RTD (Pt100) sensors, offering the flexibility to integrate with your existing temperature sensing setup.

• Compact 1/16 DIN Design: Saves valuable panel space without compromising on functionality, making it an excellent choice for modern, densely packed control systems.

• Robust Control Functions: Equipped with key features like Heater Break Alarm (HA), Break Alarm (BA), and Communication options, providing critical safety alerts and connectivity for automated systems.

Technical Specifications at a Glance:

• Model: TZN4S-14R

• Display: Dual 4-digit LED (PV & SV)

• Output Type: SSR Drive Output (12VDC, 20mA)

• Input Types: Thermocouple (J, K), RTD (Pt100)

• Control Action: Dual PID with Auto-Tuning

• Mounting: 1/16 DIN (48x48mm panel cutout)

Ideal for a Wide Range of Applications:

• Plastic & Rubber Processing Machinery

• Packaging and Sealing Machines

• Food Processing and Cooking Equipment

• Industrial Ovens, Furnaces, and Environmental Chambers

• Laboratory and Medical Equipment

• Semiconductor Manufacturing Tools
