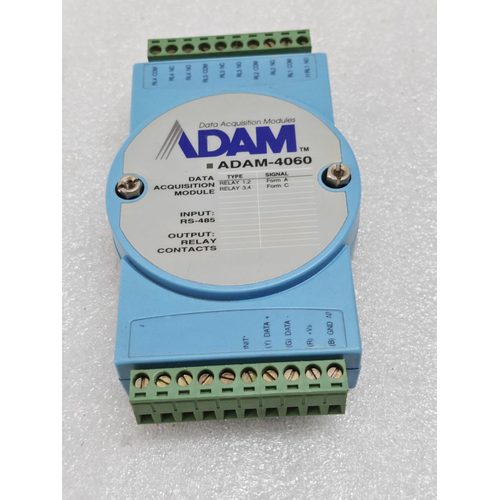

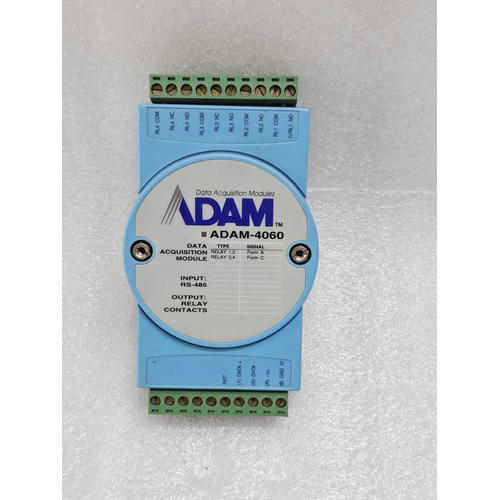

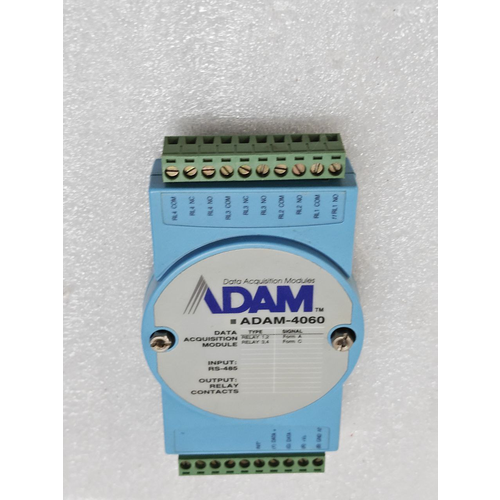

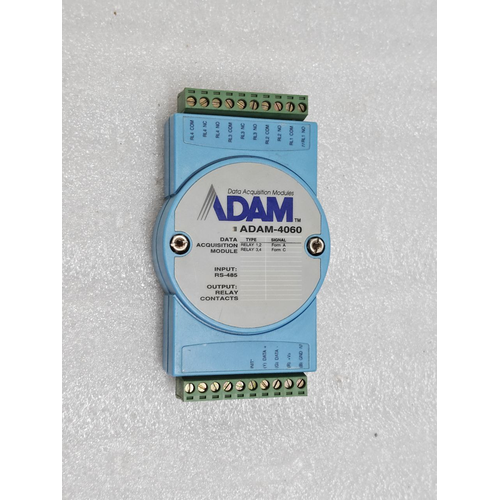

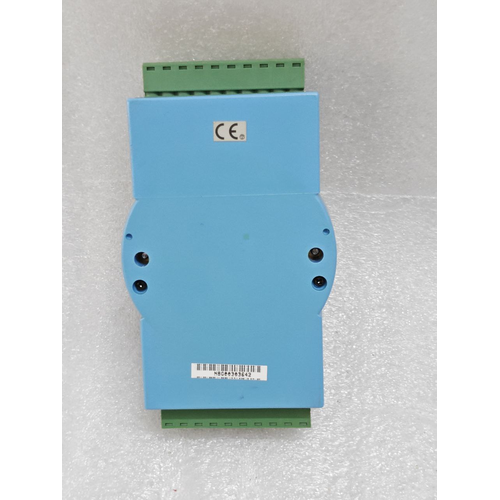

ADVANTECH ADAM-4060 DATA ACQUISITION MODULE
Advantech ADAM-4060 4-Channel Digital I/O Module with Form A Relays
The Advantech ADAM-4060 is a versatile and reliable 4-channel digital input/output module designed for industrial remote control and monitoring applications. Part of the renowned Advantech ADAM-4000 series, this module acts as a critical interface between your control system (like a PC or PLC) and real-world devices such as motors, solenoids, alarms, and sensors.
Engineered for harsh environments, the ADAM-4060 supports a wide operating temperature range and features 3000V isolation to protect your system from high-voltage surges and ground loops. Its easy integration via Modbus RTU protocol makes it a cost-effective solution for automating industrial processes.
Key Features & Benefits:
-
4 Form A Relay Outputs:Â Each channel provides a robust relay contact (Normally Open) rated for 2A @ 30VDC or 0.5A @ 120VAC, allowing you to directly control AC/DC loads like motors, lights, and pumps.
-
Industrial Ruggedness: Operates reliably in temperatures from -10°C to 70°C and withstands 3000V DC isolation on the communication ports, ensuring stability in electrically noisy factory settings.
-
Easy System Integration: Connects seamlessly via RS-485 network using the standard Modbus RTU protocol, making it compatible with most SCADA, HMI, and PLC systems.
-
Flexible Power Supply:Â Accepts a wide-range unregulated 10-30V DC power input, simplifying installation in various power environments.
-
DIN-Rail Mountable:Â The compact form factor allows for easy installation on a standard DIN rail within control cabinets, saving panel space.
Technical Specifications at a Glance:
| Category | Specification |
|---|---|
| Model | ADAM-4060 |
| I/O Channels | 4 x Digital Output |
| Output Type | Form A Relay (SPST-NO) |
| Contact Rating | 2A @ 30VDC, 0.5A @ 120VAC |
| Communication | RS-485 (2-wire) |
| Protocol | Modbus RTU (Standard), ADAM Protocol |
| Isolation | 3000V DC (RS-485 & Power) |
| Power Supply | 10 ~ 30V DC (Unregulated) |
| Operating Temp. | -10°C to +70°C (14°F to 158°F) |
Common Applications:
The Advantech ADAM-4060 is the ideal solution for a wide range of remote control and automation tasks, including:
-
Industrial Machine Control:Â Start/stop control for conveyor belts, pumps, and fans.
-
Building Automation:Â Remote switching of lighting circuits and HVAC systems.
-
Alarm & Annunciator Systems:Â Triggering horns, strobes, or other alarm devices based on sensor inputs.
-
Power Distribution:Â Remote power control for equipment in hard-to-reach locations.
-
Process Automation:Â Automating sequences in manufacturing and water treatment plants.
Why Choose the Advantech ADAM-4060?
When you need a dependable, industrial-grade relay output module, the ADAM-4060 delivers proven performance. Its combination of relay outputs, high isolation, and Modbus compatibility provides a future-proof foundation for your data acquisition and control systems. It’s a trusted component for engineers building robust and scalable industrial IoT (IIoT) applications.
